| Product Type | Cellular Gateway |
| Model | MG51E-HW |
| Form Factor | Desktop or Wall Mountable |
| Weight | 664 g (1.46 lb) |
| Power Supply | 12V DC, 2A |
| Power Consumption | Max 20W |
| LED Indicators | Power, Cellular connectivity, Ethernet status |

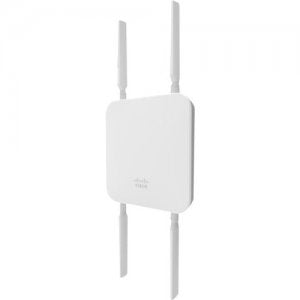

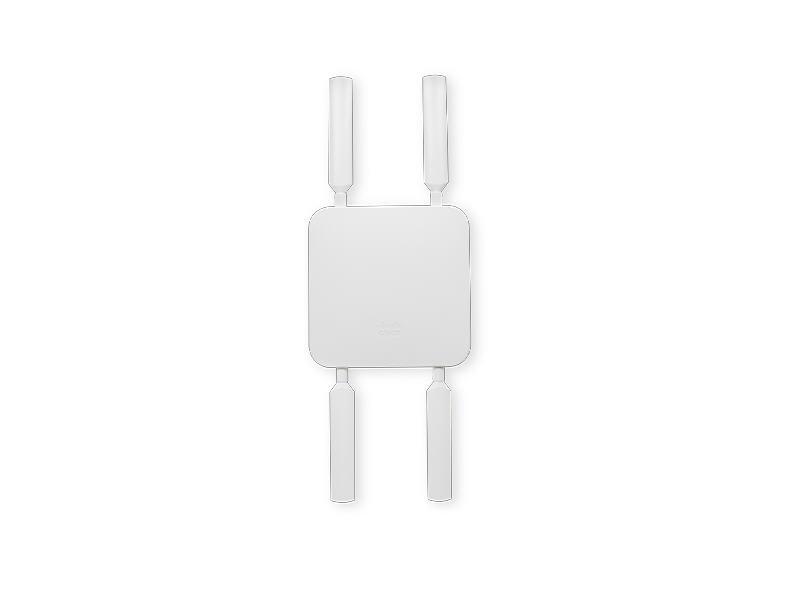

CISCO Meraki MG51E Cellular Gateway with External Antennas
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,089.74
Regular price
Sale price
$1,089.74
Unit price
per
MSRP: $2,055.23
Shipping calculated at checkout.
Couldn't load pickup availability
- External antennas enhance reception and placement flexibility
- TAA compliant, suitable for federal and regulated sector use
- Manufactured in Taiwan, aligning with international production standards
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for businesses seeking cellular WAN backup or primary connectivity in areas without reliable cabling
- TAA compliance makes it an excellent option for federal and government projects
- Seamless integration with Cisco Meraki cloud-managed networking streamlines deployment and management
Product Overview
The Cisco Meraki MG51E Cellular Gateway with External Antennas delivers reliable cellular-based WAN connectivity to enterprises, remote offices, and retail environments. It features external antennas for flexible positioning and stronger reception, and integrates smoothly into Meraki's cloud-managed ecosystem for centralized administration. Designed and manufactured in Taiwan, the MG51E is TAA compliant, making it suitable for federally regulated deployments. Its cloud-native design and ease of deployment allow rapid networking expansion, especially in areas lacking fixed-line infrastructure. More technical specifications were not provided.
Specifications
Product Overview
Wireless Features
| Cellular Technology | 5G Sub-6 GHz and LTE Cat 20 |
| Supported Bands | 5G NR: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n41, n48, n66, n71, n77, n78, n79; LTE: Bands 1–5, 7, 8, 12–14, 17, 18–20, 25, 26, 28, 29, 30, 32, 38–41, 42, 43, 46, 48, 66, 71 |
| Carrier Aggregation | Yes |
| MIMO Support | 4x4 MIMO |
| Antenna Type | External (SMA-connected antennas included) |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC, IC, CE, RoHS, RCM, PTCRB, GCF |
| Environmental Standards | RoHS compliant |
Advanced Security Features
| Integrated Firewall | No (uses upstream firewall/security appliances) |
| VPN Support | IPSec VPN Pass-through |
| Security Dashboard Integration | Yes, via Meraki Dashboard |
Interfaces
| WAN Ports | 1 x 2.5G Ethernet |
| LAN Ports | 1 x 2.5G Ethernet |
| Management Port | 1 x RJ45 Console Port |
| SIM Slots | 2 x Nano SIM slots (Dual SIM failover) |
| USB Ports | None |
| External Antenna Connectors | 4 x SMA connectors |
| Data Transfer Rate | Up to 2.0 Gbps (theoretical maximum on 5G) |
Physical & Environmental
| Dimensions | 210 mm x 120 mm x 34 mm (8.3 in x 4.7 in x 1.3 in) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity (Operating) | 5% to 95% non-condensing |
| Mounting Options | Desktop, Wall-mountable |
| Cooling | Passive (fanless) |
Cloud Management & Licensing
| Cloud Management | Cisco Meraki Dashboard |
| Zero-touch Provisioning | Yes |
| Licensing Requirements | Meraki MG License required |
| Monitoring Features | Real-time performance monitoring, cellular signal strength, data usage |
| Failover Capabilities | Cellular failover for SD-WAN, Dual SIM failover |
