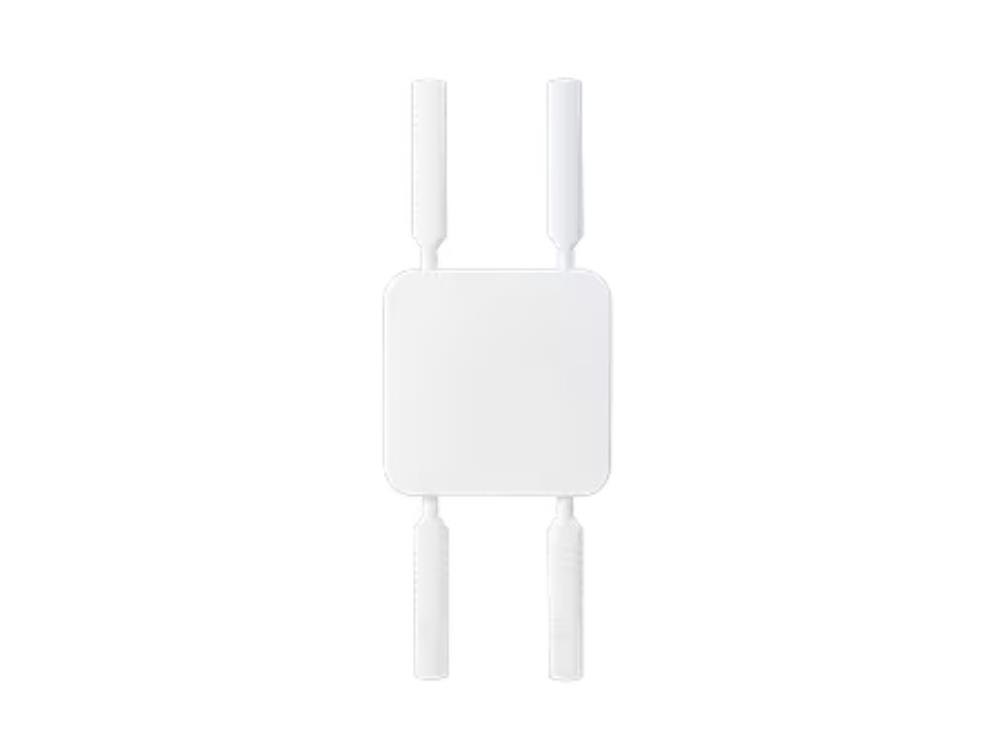

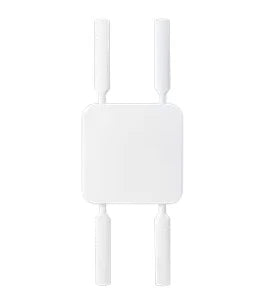

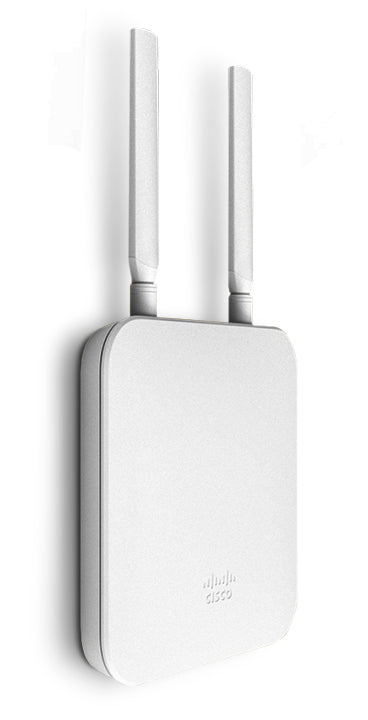

Cisco Meraki MG52E Cellular Gateway with 5G Support, 2.5GbE, Dipole Antennas

VENDOR: CISCO Mfg Part#: MG52E-HW
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,145.69
$1,145.69
Sale Sold out
MSRP: $2,160.75
Shipping calculated at checkout.
  • Supports 5G SA/NSA Sub6 LTE CAT20 cellular technology
  • 2.5 Gbps data transfer rate over Gigabit Ethernet
  • Dual power options: PoE+ (802.3at) or 12V/48-57V DC input
  • Includes dipole antennas for enhanced signal reception
  • Compact dimensions: 173 mm x 173 mm x 36.5 mm
  • Lifetime hardware warranty with next-day advanced replacement

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed and reliable 5G connectivity for enterprise internet or SD-WAN deployments
  • Flexible power and mounting options simplify installation across varying remote and branch site environments
  • Backed by Cisco Meraki's lifetime warranty and advanced next-day hardware replacement for minimal downtime

Product Overview

The Cisco Meraki MG52E is a robust cellular gateway designed to deliver enterprise-grade 5G connectivity. Featuring Sub6 LTE CAT20 support with both SA/NSA modes, this device ensures optimal bandwidth and low latency. It offers a 2.5 GbE RJ45 port for fast backhaul and is powered via PoE+ (802.3at) or direct DC input. The compact form factor and dipole antennas make it ideal for remote or space-sensitive deployments. A lifetime warranty with next-day replacement backs its superior reliability, and TAA compliance adds to its suitability for government and enterprise use.

Specifications

Product Overview
Product Type Cellular Gateway
Model MG52E
Form Factor Desktop
Networking Type Ethernet
Connectivity Technology Wireless
Max Power Consumption 16 Watt
Power Requirements 12V/1A, 48-57V DC/0.35A
Power Input Options PoE+ (802.3at) or direct DC input
Service & Support Type Full lifetime hardware warranty with next-day advanced replacement included

Wireless Features
Cellular Generation 5G
Cellular Technology Sub6 LTE CAT20
5G Mode Support SA/NSA
Antenna Type Dipole Antenna
Number of External Antennas 4
SIM Card Slots 2 (Nano SIM)
Carrier Support AT&T, Verizon, T-Mobile

Compliance & Origin
Country of Origin TAIWAN
TAA Compliance Yes
EMC Compliance FCC Part 15B Class B, ICES-003, EN 55032 Class B
Safety Certifications UL, cUL, CB, CE
RoHS Compliance Yes

Advanced Security Features
SIM-based Authentication Supported
PIN Lock for SIM Supported
Field Diagnostics Tools Built-in with dashboard access

Interfaces
Networking / Ports Qty 2
Data Transfer Rate 2.5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Main LAN Interface 1 × 2.5G RJ45
Secondary Interface 1 × USB-C debug port
PoE Type Supported 802.3at PoE+

Physical & Environmental
Width 173 mm
Depth 173 mm
Height 36.5 mm
Weight 0.82 kg
Operating Temperature -20°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Platform Meraki Dashboard
Management Interface 100% cloud-managed via Meraki Dashboard
Licensing Model Requires Meraki MG license
Zero-touch Provisioning Yes
Remote Diagnostics Yes
Real-time Alerts Yes
