Cisco Meraki MS120-48FP 48-Port 1G PoE+ Cloud Managed Switch

VENDOR: CISCO Mfg Part#: MS120-48FP-HW UPC#: 810979017912
1 3

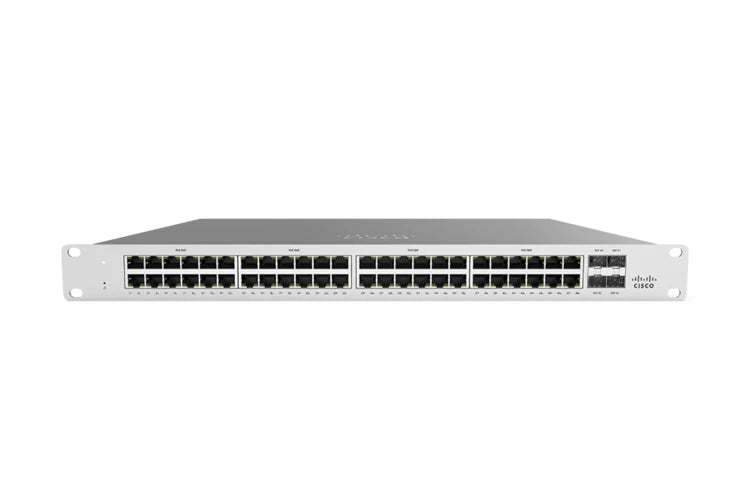

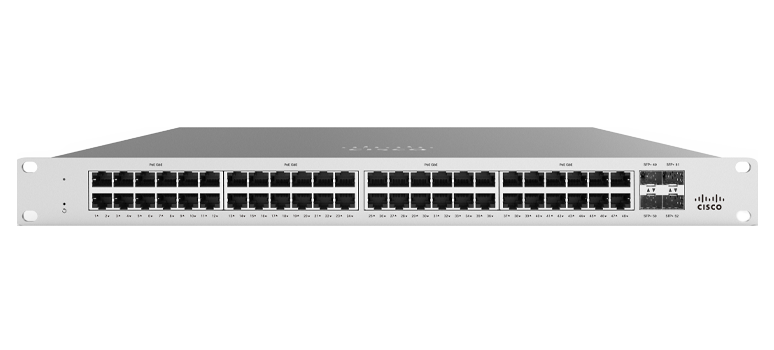

Photo is for illustration purposes only. Actual product may be different.
$4,509.31
$4,509.31
Sale Sold out
MSRP: $6,613.66
Shipping calculated at checkout.
  • 48x 1G Ethernet ports for high-density connectivity
  • 740W PoE+ power budget to support a wide range of devices
  • Layer 2 switching with cloud-managed architecture
  • TAA compliant for government and enterprise applications
  • Manufactured in China or Taiwan
  • Centralized management through Meraki dashboard

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports 48 PoE+ ports with 740W total output—ideal for powering numerous network devices simultaneously
  • Cloud-managed architecture simplifies deployment and monitoring across distributed networks
  • TAA compliant design makes it suitable for government and regulated-sector applications

Product Overview

The Cisco Meraki MS120-48FP is a next-generation Layer 2 switch developed for cloud-managed networking environments. With 48 Gigabit Ethernet ports, this model offers robust PoE+ support backed by a generous 740W power budget—suited for environments deploying a large number of powered devices such as VoIP phones, wireless access points, or security cameras. Leveraging Meraki’s intuitive cloud management interface, network administrators gain granular control, customizable alerts, and zero-touch provisioning across one or multiple sites.

Tailored for enterprise and campus-level applications, the MS120-48FP is fully TAA compliant, making it a viable option for government institutions and regulated sectors. Its centralized dashboard makes deployment and maintenance straightforward, reducing IT overhead and streamlining troubleshooting processes. The switch is manufactured in China or Taiwan, and benefits from Meraki’s in-depth firmware integration and security monitoring.

Specifications

Product Overview
Product Type Cloud-Managed Layer 2 Switch
Model MS120-48FP
Form Factor Rack-mountable, 1U
Weight 9.26 lbs (4.2 kg)
Power Supply Internal
PoE Budget 740W
PoE Type PoE+ (802.3at/af)
Switching Capacity 104 Gbps
Forwarding Rate 77.38 Mpps

Physical & Environmental
Dimensions (H x W x D) 1.73 x 17.32 x 11.25 in (44 x 440 x 286 mm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Relative Humidity (Operating) 5% to 95% non-condensing
Cooling Fan-cooled
Mounting Options 19" Rack-mountable (rack ears included)
Acoustic Noise 36.5 dBA (typical)
Mean Time Between Failures (MTBF) 679,400 hours

Cloud Management & Licensing
Management Interface Cisco Meraki Dashboard (cloud-based)
Zero-Touch Provisioning Yes
Live Tools Yes (Ping, Traceroute, Cable Test, Port Cycle)
Remote Packet Capture Yes
Alerts and Monitoring Yes (configurable email & SMS alerts)
Software Updates Automatic firmware updates via cloud
License Required Yes (Meraki Enterprise License required)

Interfaces
Total Ethernet Ports 48
PoE+ Ports 48
Uplink Ports 4 x SFP
Ethernet Port Speed 1 Gigabit
SFP Port Speed 1 Gigabit
Console Port 1 x RJ45
MAC Address Table Size 16K entries
Static Routing No
Stacking Ports No

Compliance & Origin
Country of Origin China / Taiwan
TAA Compliant Yes
Certifications UL, cUL, CE, FCC, IC, CB
Environmental Compliance RoHS

Advanced Security Features
802.1X Authentication Yes
Access Control Lists (ACLs) Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Port Security Yes
Broadcast Storm Control Yes
MAC Whitelisting Yes
