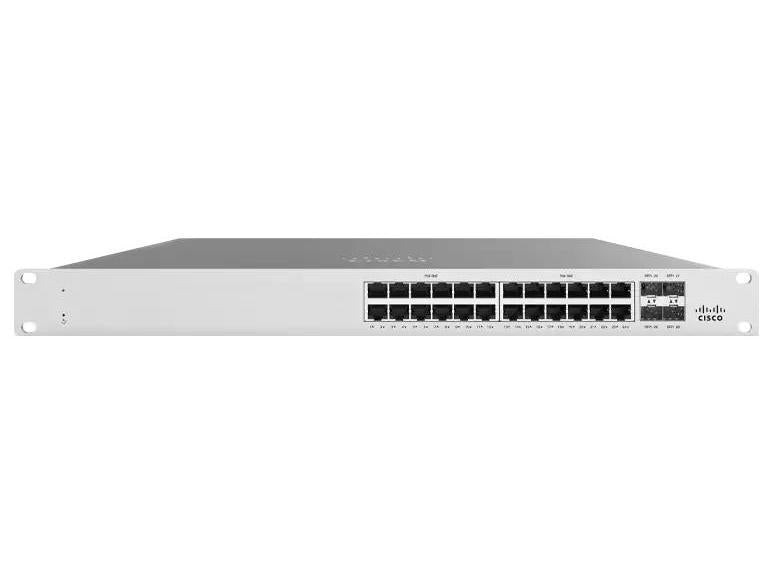

Cisco Meraki MS125-24P 10G L2 Cloud Managed 24x GigE Switch

VENDOR: CISCO Mfg Part#: MS125-24P-HW UPC#: 810979016076
  • MERAKI MS125-24P 10G L2 CLD-MNGD 24X GIG
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,141.38
$3,141.38
Sale Sold out
MSRP: $4,607.34
Shipping calculated at checkout.
  • 24x Gigabit Ethernet ports for high-density access
  • 370W Power over Ethernet (PoE) support
  • 10G uplink capability for high-speed backbone connections
  • Cloud-managed with Meraki Dashboard
  • Layer 2 switching functionality
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers 370W PoE, enabling direct power to IP cameras, phones, and access points without extra wiring.
  • 10G uplinks provide critical bandwidth for aggregation and reduce network bottlenecks in demanding applications.
  • Cloud-based management streamlines configuration and visibility across distributed networks, lowering operational complexity.

Product Overview

The Cisco Meraki MS125-24P is a cloud-managed Layer 2 access switch, featuring 24 Gigabit Ethernet ports and 370W of PoE power. With 10G SFP uplinks, it supports high-bandwidth connections ideal for expanding networks. Designed for ease of deployment, it uses Meraki’s powerful cloud dashboard for centralized configuration and monitoring. TAA-compliant and manufactured in Taiwan, it's a strong choice for government and enterprise environments. Businesses benefit from scalability, reduced administrative overhead, and reliable performance.

Specifications

Product Overview
Product Type Cloud-Managed Layer 2 Switch
Model Name MS125-24P
Form Factor 1U Rack-Mountable
Mounting Options Rack-mount kit included
PoE Support Yes, PoE/PoE+
Total PoE Power Budget 370W
Power Supply Internal
Redundant Power Supply Support No
Power Consumption (Typical) 43W
Weight 3.94 kg (8.7 lbs)

Wireless Features
Wireless Support None (Wired Switch)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CE, FCC, RoHS, IC, VCCI, C-Tick
Safety Standards EN 60950-1 / IEC 60950-1
EMI Standards FCC Part 15 (CFR47) Class A

Advanced Security Features
802.1X Authentication Supported
MAC-based RADIUS Authentication Supported
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Port Security Yes
Access Control Lists (ACLs) Yes
Loop Detection Yes
Storm Control Yes

Interfaces
Total Ethernet Ports 24
Ethernet Port Type 10/100/1000BASE-T (Gigabit Ethernet)
PoE+ Ethernet Ports 24 PoE/PoE+ capable ports
Uplink Ports 4 x SFP+
Uplink Port Speed 10 Gigabit Ethernet
Auto Negotiation Yes
Auto MDI/MDI-X Yes
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
Packet Buffer Size 12MB
MAC Address Table Size 16K entries

Physical & Environmental
Dimensions (W x D x H) 44.5 cm x 38.1 cm x 4.5 cm (17.52 in x 15.0 in x 1.75 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 45.2 dBA at 25°C
Cooling Fan-cooled

Cloud Management & Licensing
Management Platform Cisco Meraki Dashboard
Cloud Management Yes, through Meraki Dashboard
License Requirement Meraki Enterprise License required
Zero-Touch Provisioning Supported
Remote Monitoring Yes
Configuration Backup Automatic Cloud-based Backup
Firmware Updates Automatic via Cloud
