Cisco Meraki MS130R-8P Rugged 8GE 240W PoE Managed Switch

VENDOR: CISCO Mfg Part#: MS130R-8P-HW

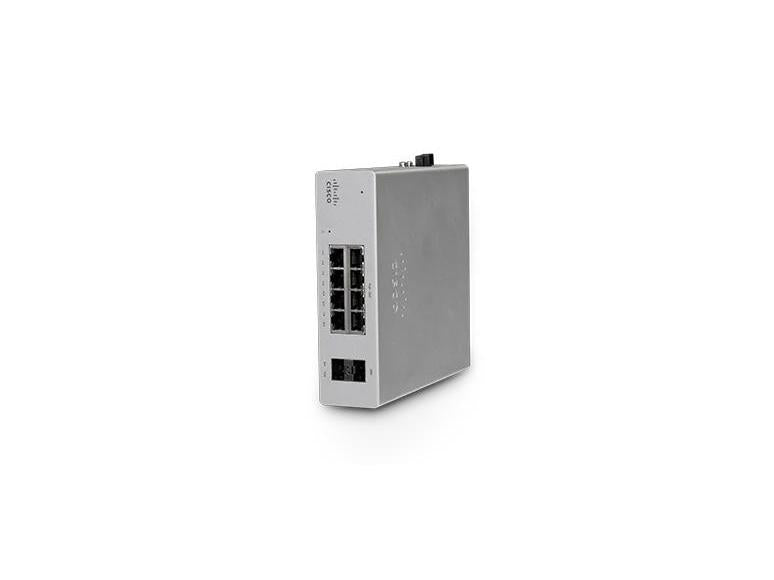

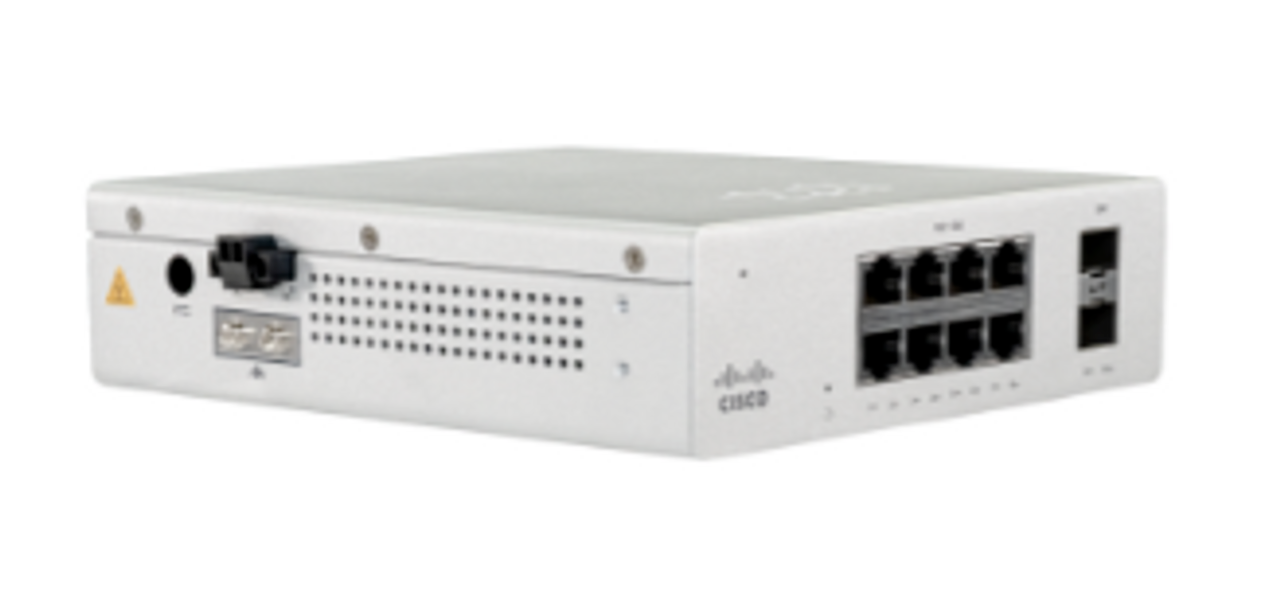

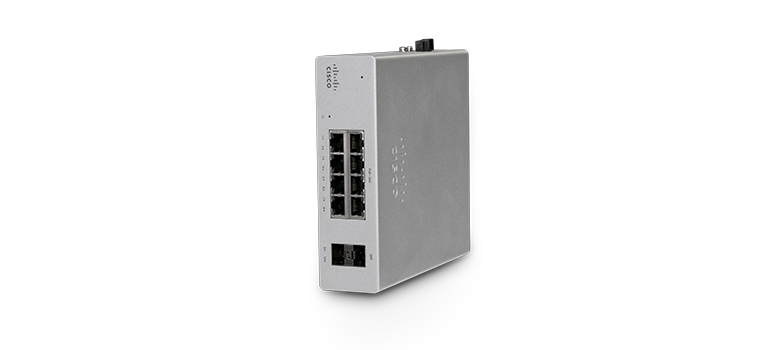

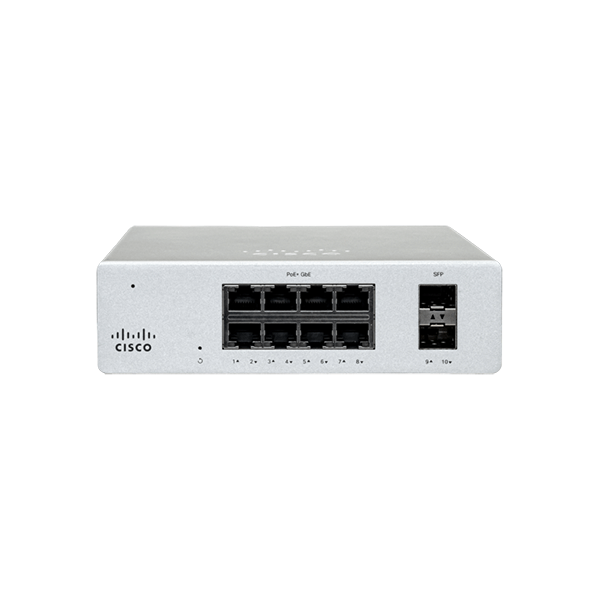

  • The Cisco Meraki MS130R-8P is a ruggedized, 1U, cloud-managed switch designed for reliable Layer 2 networking in industrial and edge environments. It delivers 8 Gigabit Ethernet ports with a total 240W of 802.3bt Power over Ethernet (PoE), supporting up to 30W per port—ideal for powering IoT devices and wireless access points. Managed entirely through the Cisco Meraki Dashboard, it offers streamlined deployment and configuration for secure, scalable wired networks.
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,765.75
$2,765.75
Sale Sold out
MSRP: $4,022.92
Shipping calculated at checkout.
  • * 8 Gigabit Ethernet ports with Layer 2 switching capabilities
  • * Supports 802.3bt PoE delivering up to 30W per port, with total 240W power budget
  • * Managed remotely via Cisco Meraki Dashboard for streamlined configuration and monitoring
  • * Power input range of 50-54VDC for flexible deployment in industrial settings
  • * Compliant with 802.1q VLAN tagging and 802.1X authentication security protocols
  • * TAA-compliant and manufactured in Taiwan
View full details

Key Benefits

Eye-Insights
  • * Delivers high-powered PoE (802.3bt) with up to 30W per port, supporting demanding devices like IP cameras and access points
  • * Rugged design with DC-powered input ideal for industrial and remote environments lacking traditional AC power
  • * Centralized management through the Cisco Meraki Dashboard reduces administrative overhead and enhances network visibility

Product Overview

The Cisco Meraki MS130R-8P is a cloud-managed, ruggedized Layer 2 switch designed for high-performance networking in industrial and outdoor environments. Featuring 8 Gigabit Ethernet ports and 802.3bt PoE support up to 30W per port, it offers a total power budget of 240W. Managed through the Cisco Meraki Dashboard, it simplifies configuration and monitoring. This 1U switch operates on 50–54VDC input, complies with TAA requirements, and includes 802.1q VLAN tagging and 802.1X security, making it ideal for edge deployments demanding reliability and security.

Specifications

Primary Information
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Features Extended Operating Temperature Range Flexible Powering Options Rack, Wall, and DIN rail mounting options Managed via Cisco Meraki Dashboard
Power / Device Type Power Supply
Power / Voltage Required 50-54VDC
Model MS130R-8P
Network Device Type Switch
Form Factor 1U
Data Transfer Rate 1 Gbps
Networking / Ports Qty 10
Processor / Type None Processor
Networking Compliant Standards 802.1X, 802.1Q
Media Layer Supported layer 2
Max Power Consumption 257 Watt

Special Feature
COO TAIWAN
TAA compliance Yes
Min Operating Temperature -40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 85 Celsius
RoHS Y

Network
Power Over Ethernet (PoE) Support Y
PoE Power Consumption 240 W
Remote Management Protocol DHCP; Syslog; IPv4; IPv6; SNMP
10/100/1000BASE-T Ports 8
SFP Ports 2
Interfaces RJ45;SFP

Dimensions&Miscellaneous
Width 6.18 Inch
Depth 6.69 Inch
Height 1.75 Inch
Weight 2.12 lbs.

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces RJ45;SFP
10/100/1000BASE-T Ports 8
SFP Ports 2
