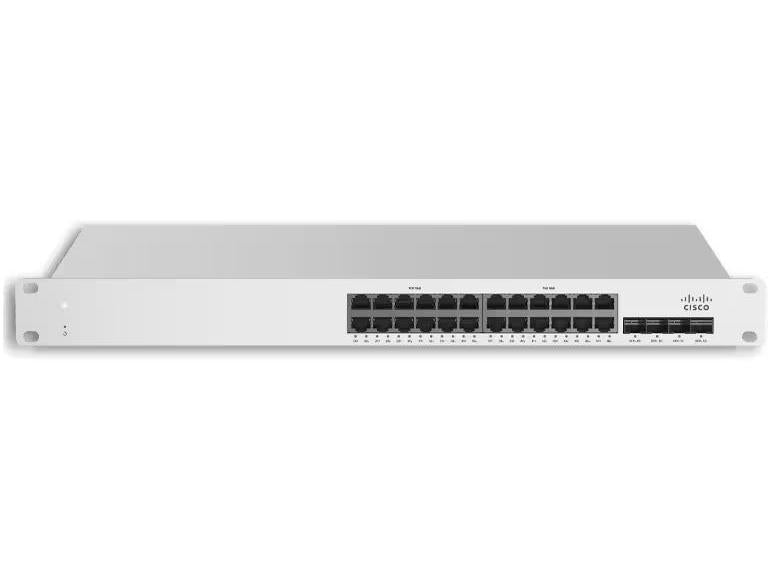

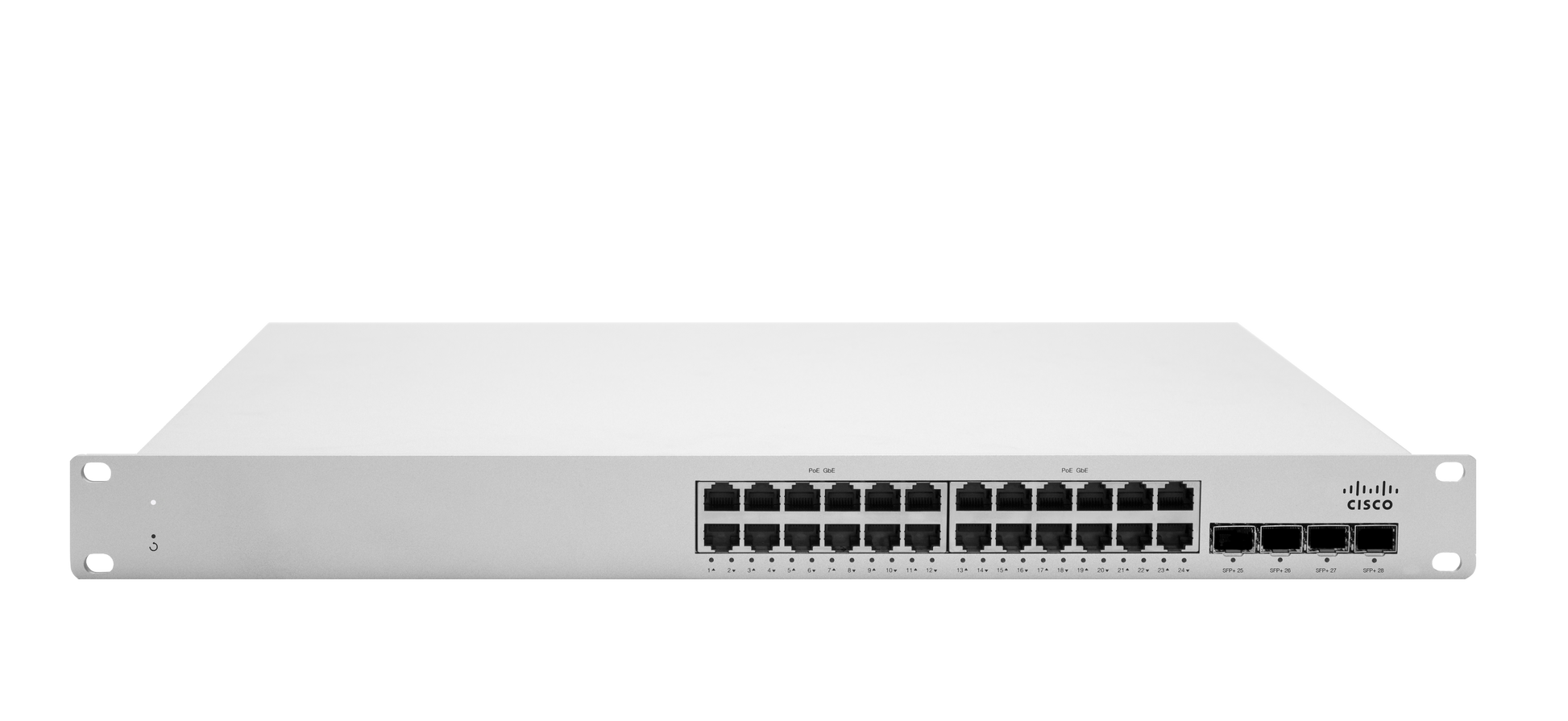

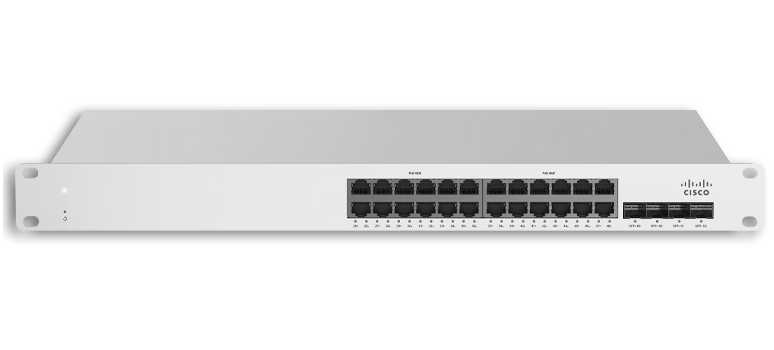

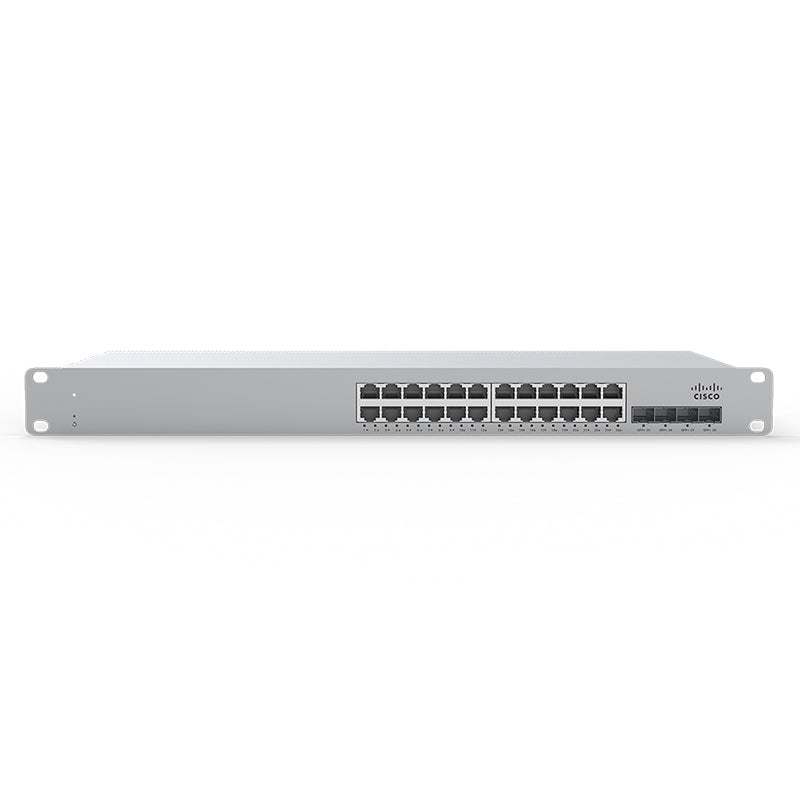

Cisco Meraki MS225-24 L2 Managed 24-Port Gigabit Switch

VENDOR: CISCO Mfg Part#: MS225-24-HW
  • The Cisco Meraki MS225-24 is a Layer 2 cloud-managed switch optimized for enterprise deployments. With 24 Gigabit Ethernet ports and 4 10GbE SFP+ uplinks, it delivers high throughput and reliable Layer 2 performance. Compact 1U form factor and remote management features make it ideal for scalable network setups.
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,957.89
$4,957.89
Sale Sold out
MSRP: $5,174.20
Shipping calculated at checkout.
  • 24 Gigabit Ethernet (10/100/1000BASE-T) ports and 4 SFP+ 10GbE uplink ports for high-speed connectivity
  • Layer 2 and Layer 3 media support including static routing for flexible network architectures
  • Cloud-managed with remote protocols such as SNMP, DHCP, and Syslog
  • Integrated 802.1X authentication for enhanced network security
  • Compact 1U rack-mountable form factor with LED status indicators
  • Low max power consumption of 24W and wide operating temperature range from -5°C to 50°C
View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade performance with 24 GbE ports and 4 10GbE uplinks, optimizing core and edge switch deployments
  • Supports centralized cloud-based management and remote diagnostics via SNMP, DHCP, and Syslog, reducing operational overhead
  • TAA compliance and robust security (802.1X authentication) make it ideal for government and secured enterprise environments

Product Overview

The Cisco Meraki MS225-24 is a cloud-managed Layer 2 switch designed to support modern enterprise networking requirements. This switch features 24 10/100/1000BASE-T Gigabit RJ45 ports along with 4 high-speed 10GbE SFP+ uplinks, providing robust switching capacity with a data transfer rate of 10 Gbps. Built into a compact 1U rackmount form factor, measuring 19 inches wide, 9.05 inches deep, and 1.72 inches high, the device is an efficient space-saving solution for dense networking environments.

This model supports key management and security functions such as SNMP, DHCP, Syslog, and static routing, all manageable via the Cisco Meraki cloud platform. The inclusion of 802.1X authentication and LED status indicators enhances both network security and real-time operational visibility. Designed for high efficiency and low power consumption, it features a 24-watt max power draw without PoE capabilities, ideal for streamlined operations where powered devices are not required. With an operating temperature range of -5 °C to 50 °C, it is appropriate for various data center and industrial settings.

For businesses seeking a scalable, cloud-integrated switch that delivers performance, compliance (TAA-compliant and made in Taiwan), and centralized manageability, the MS225-24 offers a robust return on investment. Its combination of high-speed ports, advanced Layer 2 and Layer 3 support, and remote administration makes it an impactful addition to enterprise network infrastructures.

Specifications

Primary Information
Network Device Type Switch
Model MS225-24
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED
Media Layer Supported Layer 2, Layer 3
Power / Device Type Power Supply
Uplink Port 4
Max Power Consumption 24 Watt

Interfaces / Ports
Interfaces 1GbE RJ45, 10GbE SFP+, Dedicated Mgmt
10/100/1000BASE-T Ports 24
SFP+ Ports 4

Special Feature
Min Operating Temperature -5 Celsius
Max Operating Temperature 50 Celsius
COO TAIWAN
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
Remote Management Protocol SNMP; DHCP; Syslog
Routing Protocol Static Routing
Authentication Method 802.1X
10/100/1000BASE-T Ports 24
SFP+ Ports 4
Interfaces 1GbE RJ45, 10GbE SFP+, Dedicated Mgmt

Dimensions&Miscellaneous
Width 19 Inch
Depth 9.05 Inch
Height 1.72 Inch
Weight 6.03 lbs.

UNSPSC Code
UNSPSC Code 43222612
