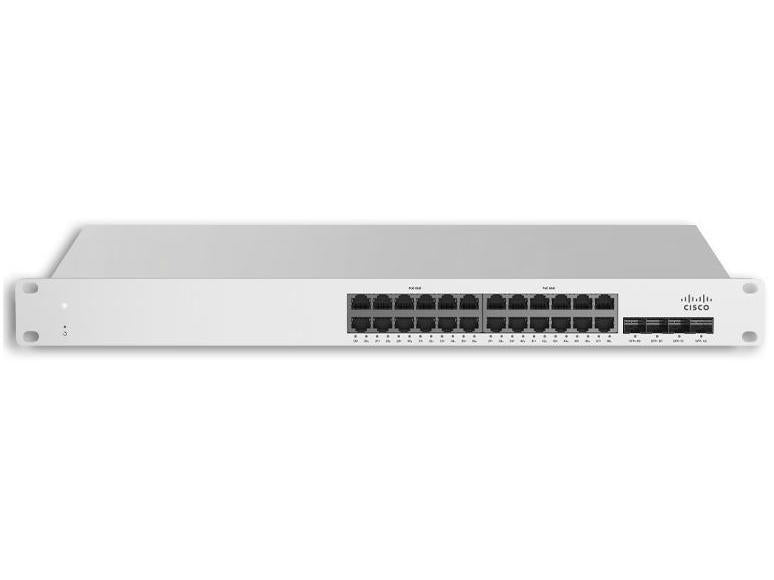

Cisco Meraki MS225-24P 24-Port Gigabit PoE+ Cloud-Managed Switch

VENDOR: CISCO Mfg Part#: MS225-24P-HW UPC#: 810979012825
  • The Cisco Meraki MS225-24P is a Layer 2 cloud-managed switch featuring 24 Gigabit Ethernet ports and 370W of PoE+ power. Ideal for branch and campus deployments, it enables simplified network management via the Meraki Dashboard, supporting efficient scaling, security, and hardware visibility.
1 1
Photo is for illustration purposes only. Actual product may be different.
$5,773.63
$5,773.63
Sale Sold out
MSRP: $6,025.53
Shipping calculated at checkout.
  • 24x Gigabit Ethernet ports with 370W PoE+ power budget
  • 4x SFP+ uplinks for high-speed connectivity
  • Cloud management via Cisco Meraki Dashboard
  • RADIUS authentication and IEEE 802.1x compliance
  • Supports SNMP, Syslog, and DHCP management protocols
  • Lifetime hardware warranty with TAA compliance
View full details

Key Benefits

Eye-Insights
  • Cloud-based management simplifies network configuration and reduces administrative overhead.
  • Supports high-density PoE deployments with 370W budget for devices like IP phones and APs.
  • Rugged and reliable with lifetime warranty and extended operating temperature range (-5°C to 50°C).

Product Overview

The Cisco Meraki MS225-24P is a high-performance Layer 2 switch engineered for dependable enterprise-class networking. Designed in a compact 1U form factor, it offers 24 Gigabit Ethernet ports and an additional 4 SFP+ uplinks, supporting a data transfer rate of up to 10 Gbps. The switch delivers 370W of PoE power, accommodating a wide range of connected devices such as IP cameras, phones, and wireless access points, making it ideal for dynamic business environments.

This fully cloud-managed model supports remote configuration and monitoring through the intuitive Cisco Meraki Dashboard. Network administration is streamlined with features including SNMP, Syslog, and DHCP support, along with robust RADIUS authentication. Compliant with industry standards like IEEE 802.1x and equipped with activity indicators for real-time diagnostics, the MS225-24P ensures both performance and security.

Built for reliability and longevity, the switch operates in environments ranging from -5 to 50 degrees Celsius and includes a lifetime hardware warranty. Additional benefits such as TAA compliance and a compact footprint enhance its appeal for government and enterprise buyers. The Cisco Meraki MS225-24P is a powerful foundation for scalable, secure, and centrally managed IT networks.

Specifications

Primary Information
Network Device Type Switch
Model MS225-24P-HW
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Data Link Protocol 10 Gigabit Ethernet
Networking Compliant Standards 802.1X, 802.1q, 802.1p
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Uplink Port 4 x SFP+ 10GbE uplink
Features Branch & Campus Access; Converged Voice, Video and Data Environments; Network Security; Application Layer Visibility
Power / Voltage Required 100 - 240 VAC, 47-63 Hz
MTBF 391648 at 25 Celsius

Interfaces / Ports
Interfaces 24 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, 2 x stacking ports, RJ45 Management port
SFP+ Ports 4

Special Feature
Min Operating Temperature -5 Celsius
Max Operating Temperature 50 Celsius
COO TAIWAN
TAA compliance Yes

Service&Support
Service & Support Type Full lifetime hardware warranty with next-day advanced replacement included

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 370W
Remote Management Protocol DHCP; Syslog; SNMP
Routing Protocol Static routing
Authentication Method RADIUS
SFP+ Ports 4
Interfaces 24 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, 2 x stacking ports, RJ45 Management port
MAC Address Table Size 16K
Jumbo Frame Support 9578 byte Ethernet frame

Dimensions&Miscellaneous
Width 19.08 Inch
Depth 9.84 Inch
Height 1.72 Inch
Weight 3.71 Kg

UNSPSC Code
UNSPSC Code 43222612
