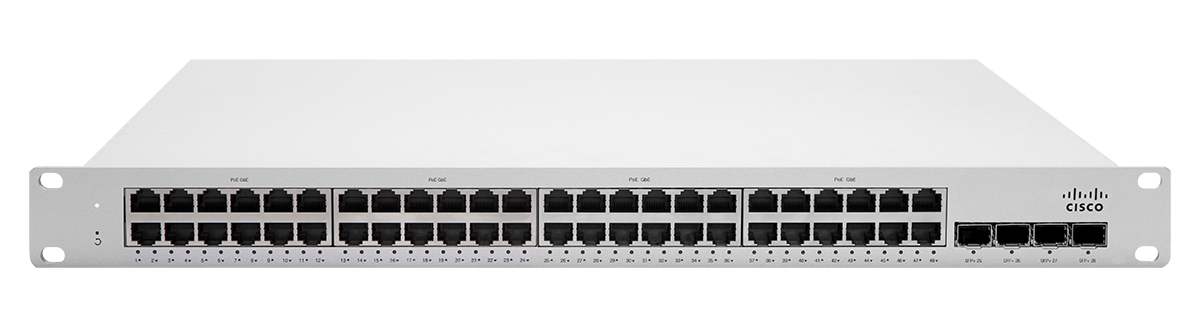

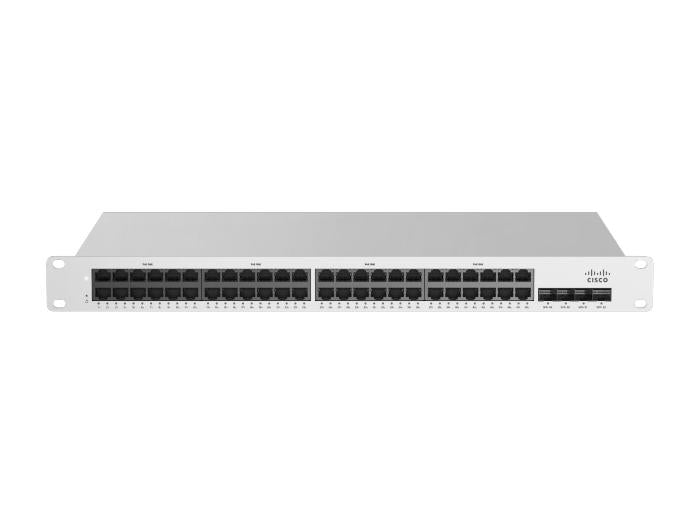

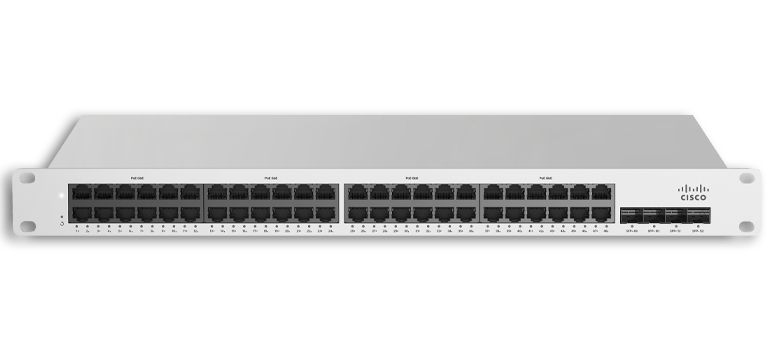

Cisco Meraki MS225-48 L2 Stackable Managed 48-Port Gigabit Switch

VENDOR: CISCO Mfg Part#: MS225-48-HW
1 3
Photo is for illustration purposes only. Actual product may be different.
$3,719.67
$3,719.67
Sale Sold out
MSRP: $6,591.45
Shipping calculated at checkout.
  • 48x 10/100/1000BASE-T RJ45 ports for high-density Ethernet connectivity
  • 4x SFP+ uplink ports for 10 Gb fiber connections
  • IPv4, IPv6, and DHCP remote management via Meraki cloud dashboard
  • Layer 2 switching with support for 802.1q VLAN tagging and 802.1X authentication
  • Rackmount 1RU form factor with a max power draw of just 42 Watts
  • Operational temperature range from -5°C to 50°C, TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers enterprise-grade scalability with 48 Gigabit ports and 4 SFP+ uplinks to support future growth.
  • Cloud-based management via Meraki dashboard simplifies deployment, monitoring, and updates across multiple locations.
  • Designed with low power usage and compact 1RU size for efficient data center or wiring closet integration.

Product Overview

The Cisco Meraki MS225-48 is a robust Layer 2 switch designed for enterprise deployments, featuring 48 Gigabit RJ45 ports and 4 high-speed SFP+ uplinks. Its cloud-managed interface enables centralized IPv4/IPv6 configuration, while features like 802.1X authentication and 802.1q VLAN tagging enhance network security and segmentation. With stacking support and a 1RU form factor, it scales easily and integrates efficiently into existing infrastructures. Built for demanding environments, it's rated between -5°C to 50°C and complies with TAA regulations, making it ideal for secured and reliable networking applications.

Specifications

Product Overview
Product Type Layer 2 Stackable Managed Switch
Model MS225-48
Form Factor 1RU
Rack Mountable Yes
Connectivity Technology Wired
Switching Capacity 176 Gbps
Forwarding Rate 130.95 Mpps
Power Supply Type Internal
Redundant Power Support Yes (with RPS)
Max Power Consumption 42 Watt
Weight 3.98 Kg

Cloud Management & Licensing
Management Interface Cisco Meraki Dashboard (Cloud Managed)
Supported Protocols IPv4, IPv6, DHCP
Licensing Required Yes (Meraki License Required for Operation)
Included Cloud Features Centralized Management, Network Monitoring, Configuration Sync, Alerts, and Firmware Updates

Physical & Environmental
Width 19 Inch
Depth 13.38 Inch
Height 1.72 Inch
Operating Temperature Range -5°C to 50°C
Operating Humidity Range 5% to 95% RH, non-condensing
Cooling Smart Fan

Interfaces
Total Number of Ports 53
10/100/1000BASE-T Ports 48
SFP+ Uplink Ports 4
Management Port 1 x Ethernet Management Port
Stacking Ports 2 (Dedicated stacking interfaces)
Interface Types 10/100/1000 Mbps RJ45, SFP+, Management (RJ45)
Data Transfer Rate 10 Gbps (Uplink)
Switching Layer Layer 2
Auto MDI/MDI-X Yes

Advanced Security Features
Authentication Methods 802.1X
Port Security Yes
MAC-based authentication Yes
Access Control Lists (ACLs) Yes
802.1Q VLAN Tagging Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Storm Control Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IC, UL, RoHS
Environmental Standards RoHS Compliant
