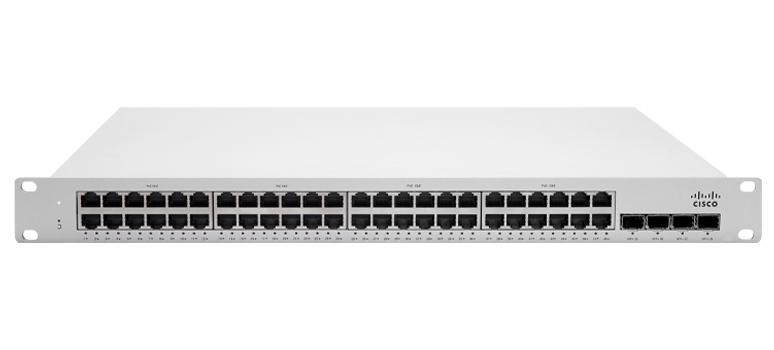

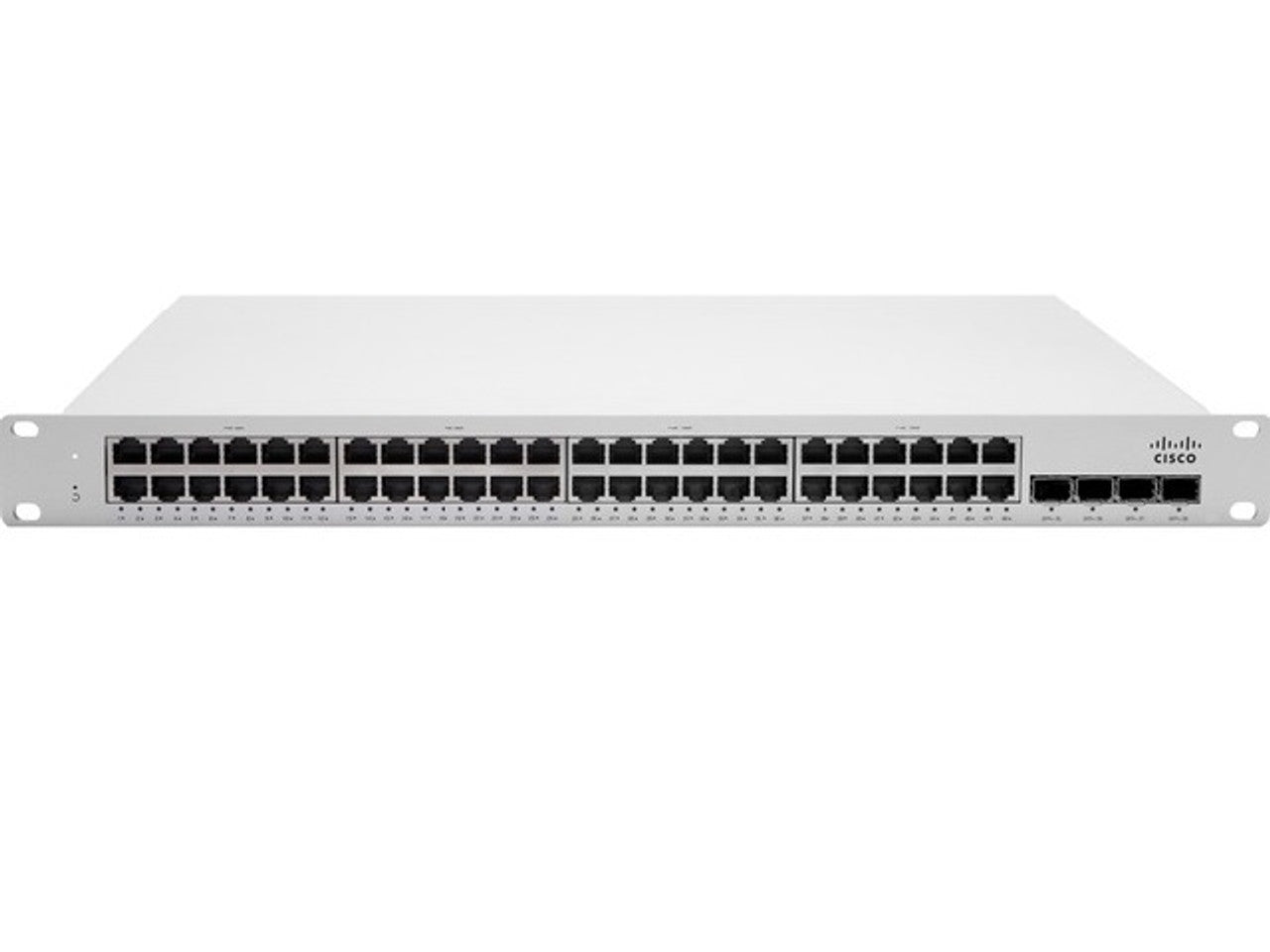

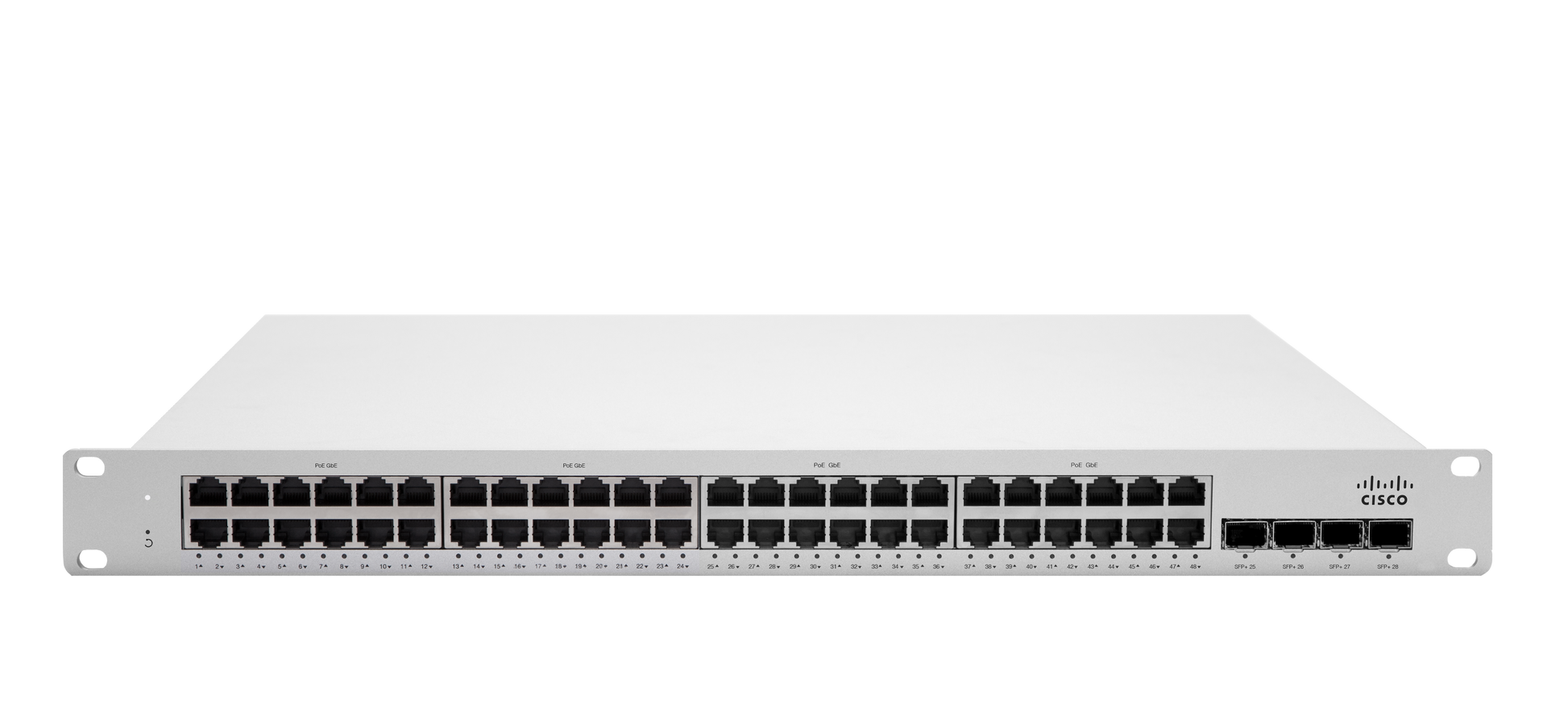

Cisco Meraki MS250-48 L3 Cloud-Managed 48-Port Gigabit Switch

VENDOR: CISCO Mfg Part#: MS250-48-HW
1 3
Photo is for illustration purposes only. Actual product may be different.
$6,002.79
$6,002.79
Sale Sold out
MSRP: $11,083.63
Shipping calculated at checkout.
  • 48x Gigabit Ethernet ports for high-density connectivity
  • Layer 3 switching capabilities to support complex routing requirements
  • Cloud-managed platform via Meraki dashboard for simplified administration
  • Stacking support enables scalable network expansion
  • TAA-compliant for government and enterprise procurement
  • Manufactured in Taiwan, ensuring quality sourcing

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise environments requiring cloud-managed, stackable Layer 3 switches
  • TAA-compliant construction makes it suitable for federal and regulated industry deployments
  • Simplifies network operations through centralized cloud management and diagnostics

Product Overview

The Cisco Meraki MS250-48 is a scalable Layer 3 switch built for high-performance enterprise networks. It features 48 Gigabit Ethernet ports and supports stacking, enabling simplified network expansion and centralized management. With cloud-managed functionality via the Meraki dashboard, remote diagnostics and configuration are seamless. The switch is TAA-compliant and built in Taiwan, making it suitable for government and enterprise environments. Designed for robust inter-VLAN routing and reduced network complexity, it delivers operational efficiency and long-term scalability.

Specifications

Product Overview
Product Type Layer 3 Cloud-Managed Switch
Model MS250-48-HW
Mounting Type Rack-mountable
Rack Units 1U
Switching Capacity 176 Gbps
Forwarding Rate 130.95 Mpps
Stacking Bandwidth 80 Gbps
Weight 4.66 kg
Power Supply Internal
Power Consumption (Typical) 72 W
Power Consumption (Maximum) 110 W
Redundant Power Support Yes, with optional RPS

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, IC, CE, UL, RoHS, WEEE

Advanced Security Features
Access Control 802.1X authentication
MAC-based RADIUS Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Port Security Yes
Multicast Snooping IGMP Snooping
Storm Control Broadcast, multicast, unknown unicast suppression
Loop Detection Yes

Interfaces
Total Ethernet Ports 48
Ethernet Port Type 10/100/1000BASE-T Gigabit Ethernet
Uplink Ports 4 x SFP+ (10 Gigabit)
Stacking Ports 2 x Stacking Interfaces
Management Interface 1 x RJ45 console port
Data Transfer Rate 10/100/1000 Mbps per port
Aggregate Bandwidth 176 Gbps switching capacity

Physical & Environmental
Dimensions (W x D x H) 44.1 x 38.1 x 4.5 cm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise Level 45.3 dBA @ 25°C
Cooling Fan cooled

Cloud Management & Licensing
Cloud Management Platform Cisco Meraki Dashboard
Management Type Cloud-Managed
Remote Configuration Yes
Centralized Management Yes
License Requirement Meraki Enterprise License Required
Zero-Touch Provisioning Yes
Monitoring Features Traffic analytics, real-time alerts, firmware updates
