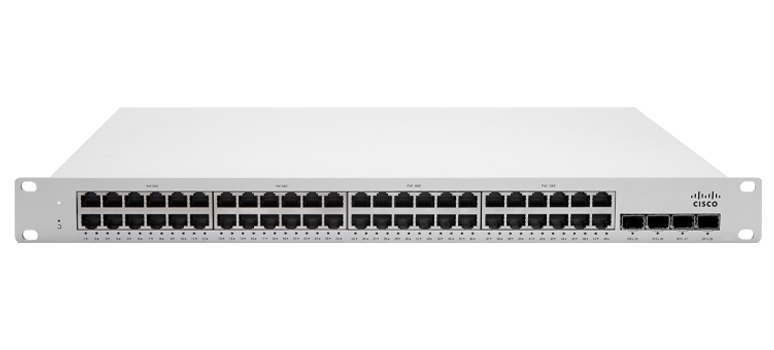

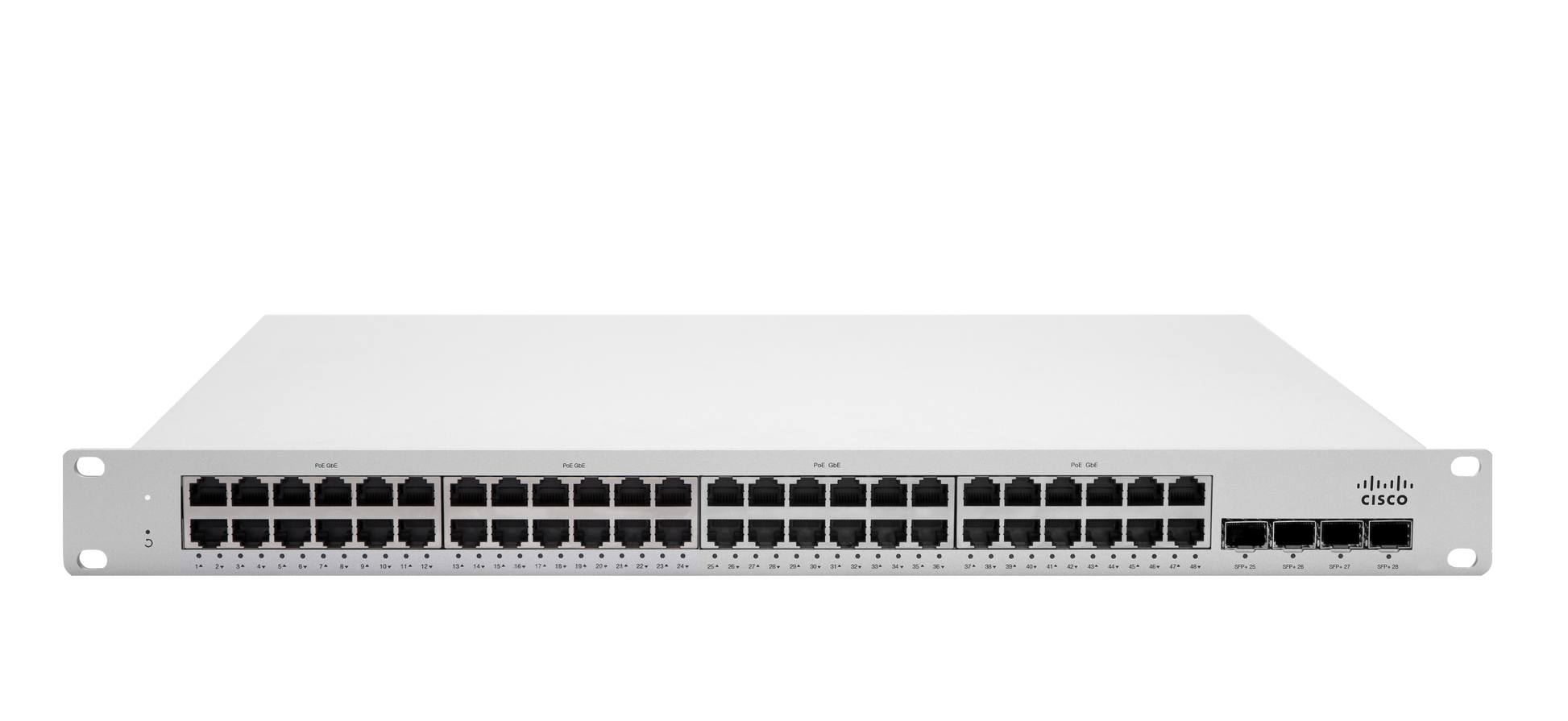

Cisco Meraki MS250-48LP 48-Port L3 Cloud-Managed PoE Switch

VENDOR: CISCO Mfg Part#: MS250-48LP-HW
1 2
Photo is for illustration purposes only. Actual product may be different.
$6,864.46
$6,864.46
Sale Sold out
MSRP: $12,674.62
Shipping calculated at checkout.
  • 48 Gigabit Ethernet ports with Power over Ethernet (PoE)
  • 4 x 10 Gigabit SFP+ uplink ports for high-speed connectivity
  • Layer 3 switching capabilities with cloud-based management
  • Redundant power supply supported for increased uptime
  • Rack-mountable 1U form factor with modular design
  • Environmental compliance with RoHS certification and TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Cloud-based centralized management simplifies administration and reduces operational overhead.
  • High port density and 10G uplinks provide performance scalability for branch or campus applications.
  • Support for redundant, field-replaceable power supplies enhances availability in mission-critical environments.

Product Overview

The Cisco Meraki MS250-48LP is a high-performance, cloud-managed Layer 3 switch designed for branch and small campus networks. It features 48 Gigabit Ethernet ports and 4 dedicated 10G SFP+ uplinks, ensuring robust throughput and flexible topology design. With redundant power support and a 1U rack-mountable form factor, the MS250-48LP delivers uptime-critical performance. Integrated Meraki cloud management offers zero-touch provisioning, deep network visibility, and live diagnostic tools, all from a centralized web interface. TAA-compliant and RoHS certified, it's engineered for reliability and compliance in enterprise deployments.

Specifications

Product Overview
Product Type Ethernet Switch
Product Model MS250-48LP
Product Name MS250-48LP Ethernet Switch
Brand Name Meraki
Product Series MS
Form Factor Desktop
Compatible Rack Unit 1U
Layer Supported 3
Manageable Yes
Redundant Power Supply Supported Yes
Power Source Power Supply
Weight (Approximate) 12.37
Limited Warranty Lifetime

Physical & Environmental
Height 1.72" (43.69 mm)
Width 20.32" (516.13 mm)
Depth 19.1"
Environmentally Friendly Yes

Cloud Management & Licensing
Cloud Management Yes, via Meraki Dashboard
Zero-Touch Provisioning Yes
Virtual Stacking Yes
Application Layer Visibility Yes
Role-Based Administration Yes
Automatic Firmware Updates Yes
Live Tools Support Yes (e.g., packet capture, cable test)
Alerting Capabilities Yes (e.g., power loss, downtime, config changes)
Management Interface Cloud-based GUI (Meraki Dashboard)

Interfaces
Total Number of Network Ports 48
Number of SFP+ Slots 4
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet Uplink
Expansion Slot Type SFP+
Number of Total Expansion Slots 6
Shared SFP Slot No
Uplink Port Yes
Stack Port Yes
Modular Yes
Network Technology 10GBase-X

Compliance & Origin
Environmental Certification RoHS
TAA compliance Yes
Country of Origin TAIWAN

Advanced Security Features
MAC Whitelisting Yes
802.1X Authentication Yes
Role-Based Access Control Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Storm Control Yes
Port Security Yes
RADIUS/TACACS+ Authentication Yes
