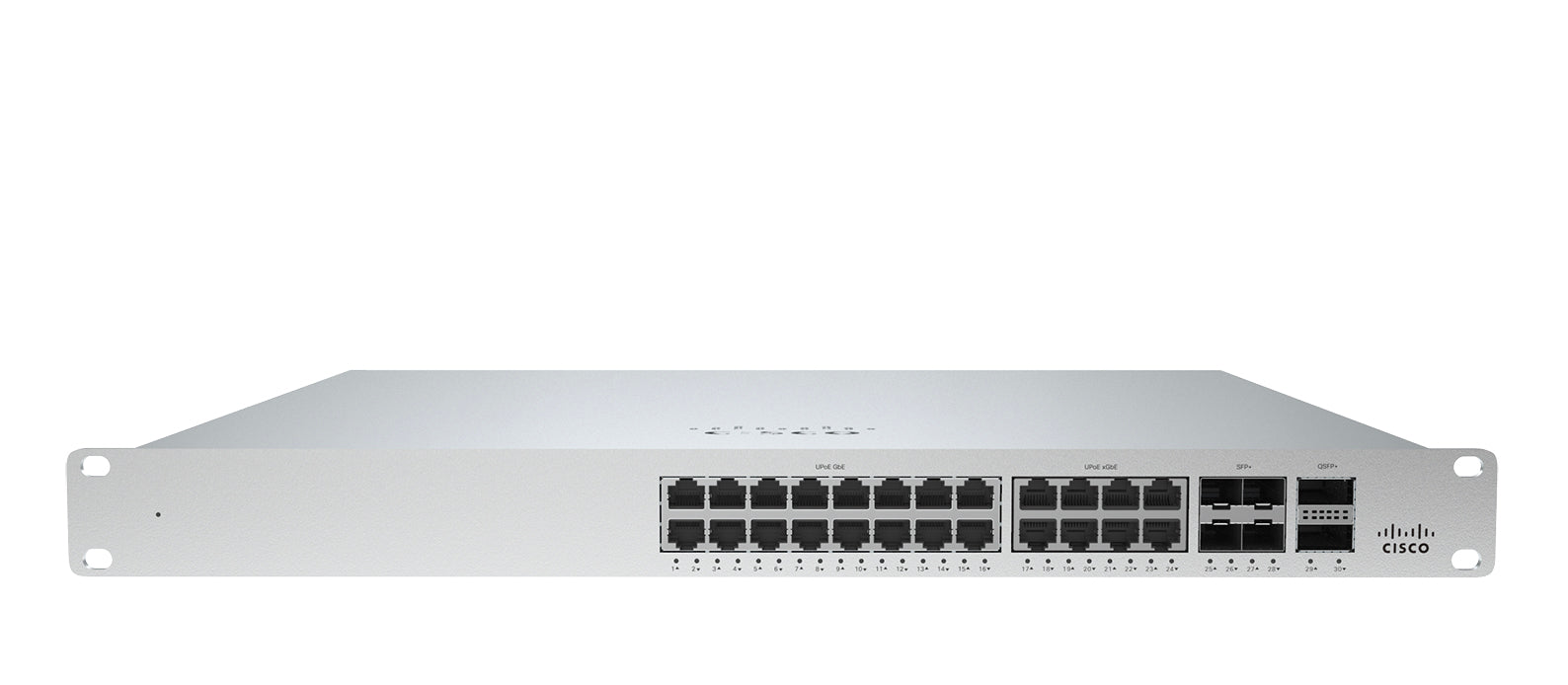

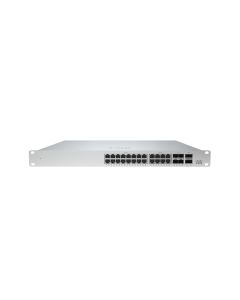

Cisco Meraki MS355-24X Cloud-Managed 24GE 8xMG UPOE Switch

VENDOR: CISCO Mfg Part#: MS355-24X-HW
1 3
Photo is for illustration purposes only. Actual product may be different.
$7,200.23
$7,200.23
Sale Sold out
MSRP: $13,579.52
Shipping calculated at checkout.
  • 24 Gigabit Ethernet ports plus 8 Multigigabit UPOE ports
  • Layer 3 switching with cloud-based management via Meraki dashboard
  • Built-in stacking capability for scalable deployments
  • TAA-compliant for government and institutional use
  • Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Cloud-managed switching provides centralized control and simplifies IT administration.
  • Multigigabit UPOE ports support bandwidth- and power-hungry devices efficiently.
  • TAA compliance makes the device suitable for regulated or government use cases.

Product Overview

The Cisco Meraki MS355-24X is a high-capacity, Layer 3, cloud-managed switch engineered to deliver streamlined configuration and robust performance across complex networks. It offers 24 standard Gigabit Ethernet ports combined with 8 Multigigabit UPOE ports, supporting a wide range of connected devices with intensive bandwidth and power demands. This hybrid port configuration enhances network flexibility while accommodating modern high-throughput endpoints like wireless access points and VoIP systems.

Tailored for enterprise-grade environments, the MS355-24X supports dynamic cloud-based administration through the Meraki dashboard, enabling centralized visibility, updates, and troubleshooting across multiple locations. Being TAA-compliant ensures suitability for government and institutional deployments, while its origin in Taiwan reinforces its manufacturing integrity. The stacking feature simplifies network expansion, ensuring that scaling up operations remains seamless and cost-effective.

Overall, the MS355-24X delivers a balanced blend of speed, scalability, and manageability, making it a compelling choice for IT teams seeking to modernize their wired infrastructure while reducing overhead through intuitive cloud-based controls.

Specifications

Product Overview
Product Type Cloud-managed Layer 3 Switch
Form Factor 1U Rack-mountable
Model Number MS355-24X-HW
Series Cisco Meraki MS355
Weight 10.73 lbs (4.87 kg)
Power Supply Internal
Power Consumption (Typical) 105W
PoE Budget 740W
Switching Capacity 512 Gbps
Forwarding Rate 357.14 Mpps

Wireless Features
Wireless Support No (Wired Switch)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CE, FCC, IC, EN55032 Class A, RoHS
Regulatory Approvals UL60950-1, IEC60950-1, EN60950-1

Advanced Security Features
Access Control Lists (ACLs) Layer 3 & Layer 2 configurable
802.1X Authentication Supported
MAC Whitelisting Supported
DHCP Snooping Yes
Dynamic ARP Inspection Yes
Port Security Yes

Interfaces
Total Ethernet Ports 32
Standard 1G Ethernet Ports 24 x 10/100/1000BASE-T
Multigigabit Ethernet Ports 8 x 100M/1G/2.5G/5G/10GBASE-T
UPOE Support Yes
SFP+ Uplink Ports 2 x 10G SFP+
QSFP+ Uplink Ports 2 x 40G QSFP+
Stacking Ports 2
Stacking Bandwidth 160 Gbps
Auto-MDIX Yes
Jumbo Frame Support Yes, up to 9216 bytes

Physical & Environmental
Dimensions (W x D x H) 19.08 x 20.36 x 1.73 in (48.47 x 51.73 x 4.39 cm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise 47.9 dBA
Cooling Fans included (field-replaceable)

Cloud Management & Licensing
Management Interface Cisco Meraki Dashboard
Cloud Management Yes
License Requirement Meraki Subscription License Required
Zero-Touch Provisioning Yes
Remote Firmware Updates Yes
Network Visibility Real-time via Dashboard
