| Product Type | Cloud-Managed Layer 3 Switch |
| Model | MS355-24X2 |
| Series | Cisco Meraki MS355 Series |
| Form Factor | Rack-mountable |
| Rack Units | 1U |
| Power Supply | Integrated, 740W (with support for redundant PSU) |
| PoE Budget | 740W |
| Power Consumption (Max) | 980W (including PoE) |
| Weight | 16.6 lbs (7.5 kg) |

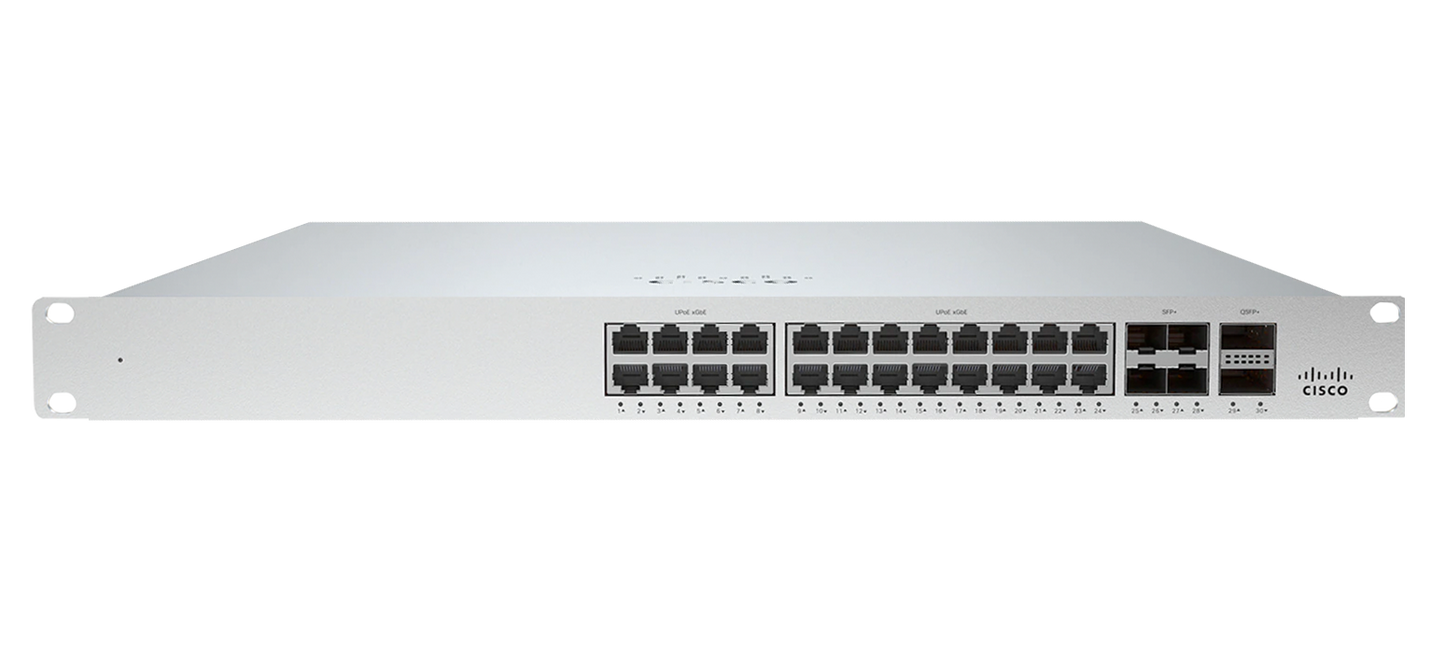

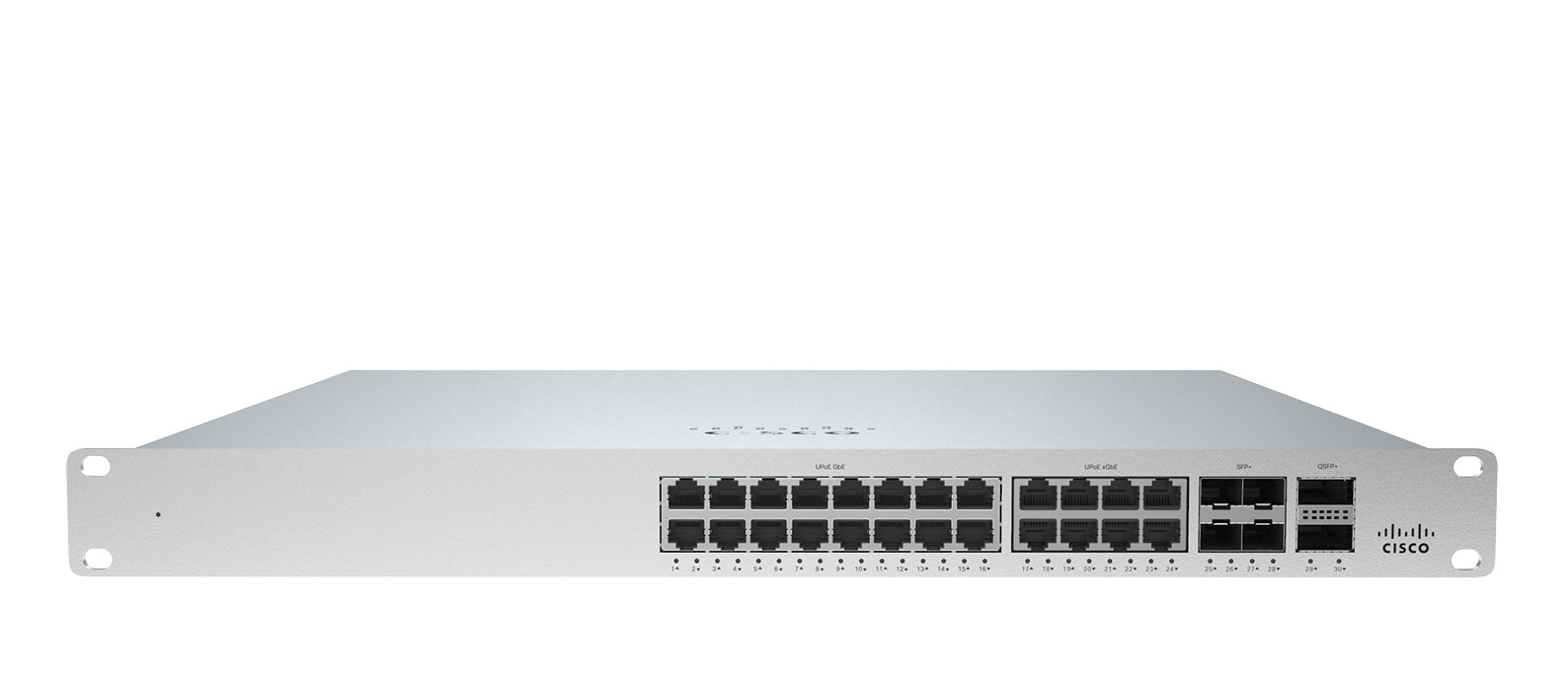

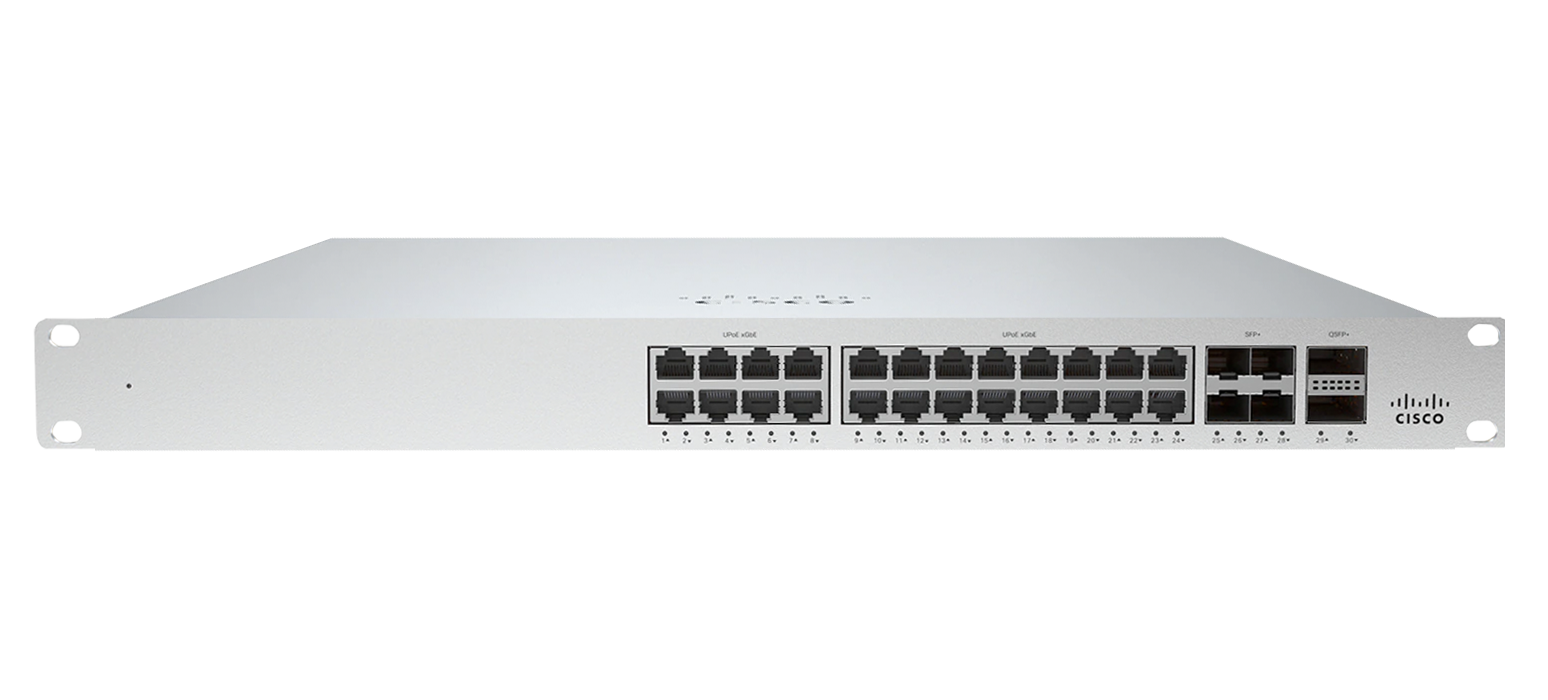

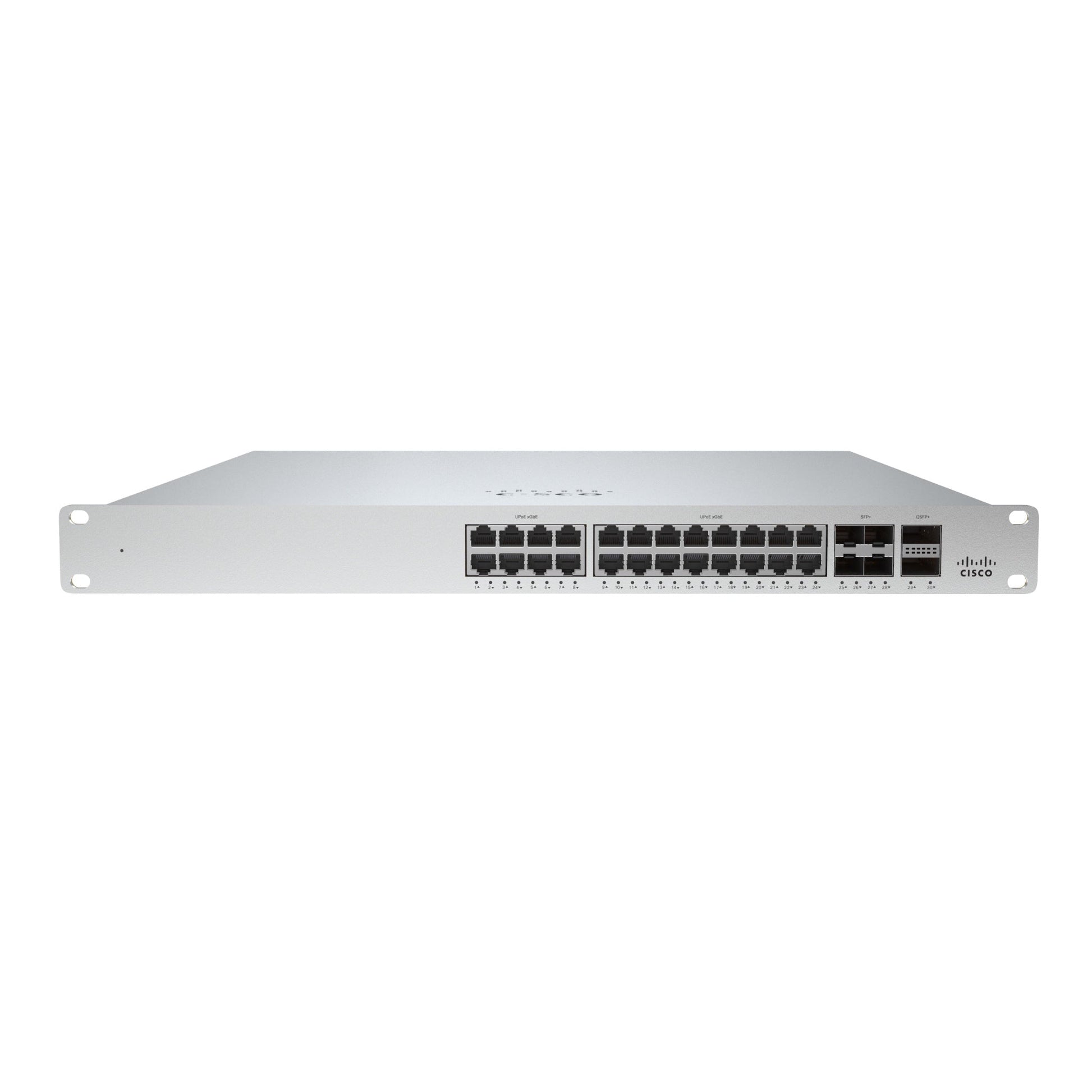

Cisco Meraki MS355-24X2 Cloud-Managed 24XMG UPOE Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,239.37
Regular price
Sale price
$8,239.37
Unit price
per
MSRP: $15,539.31
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 multigigabit UPOE ports for high-bandwidth and power-hungry devices
- Layer 3 cloud-managed switching for simplified centralized control
- Stackable architecture for easy scalability without added complexity
- TAA compliance ensures suitability for government and regulated markets
- Country of origin: Taiwan
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Provides integrated power and bandwidth with 24XMG UPOE ports, ideal for high-performance enterprise devices
- Enables simplified network management and deployment through Meraki's intuitive cloud-based platform
- TAA compliance supports deployment in government and restricted sector environments requiring verified sourcing
Product Overview
The Cisco Meraki MS355-24X2 is a cloud-managed Layer 3 switch with 24 multigigabit UPOE ports, tailored for modern enterprise networks. It delivers enhanced speed and integrated power for high-performance devices. Stacking capabilities support scalability, while TAA compliance ensures suitability for regulated environments. Created in Taiwan, this switch offers centralized management and is part of the trusted Cisco Meraki ecosystem. Ideal for organizations aiming to optimize connectivity, scale efficiently, and manage networks with confidence.
Specifications
Product Overview
Wireless Features
| Wireless Support | No (Wired Switch) |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliance | Yes |
| Certifications | UL, ICES, FCC, CE, C-Tick, VCCI, RoHS, WEEE |
| MTBF | 520,040 hours |
Advanced Security Features
| Access Control Lists (ACLs) | Layer 2 and Layer 3 ACLs |
| 802.1X Authentication | Yes |
| Port Security | Yes |
| DHCP Snooping | Yes |
| Dynamic ARP Inspection | Yes |
| MAC Whitelisting | Yes |
Interfaces
| Total Ports | 26 |
| 10/100/1000/2.5/5/10G Ports | 24 x 1G/2.5G/5G/10GBase-T (UPOE) |
| SFP+ Uplink Ports | 2 x 10G SFP+ |
| Virtual Stacking Support | Yes |
| Physical Stacking Ports | 2 |
| Stacking Bandwidth | 160 Gbps |
| Switching Capacity | 640 Gbps |
| Forwarding Rate | 476 Mpps |
| Maximum MAC Addresses | 32,000 |
| Packet Buffer | 12 MB |
| Latency | <1 µs |
| Auto-MDIX | Yes |
| PoE/PoE+/UPOE Support | Yes |
Physical & Environmental
| Dimensions (W x D x H) | 17.4 x 20.95 x 1.73 in (44.2 x 53.2 x 4.4 cm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 5% to 95% non-condensing |
| Acoustic Noise Level | 45 dB (typical) |
| Cooling | Fan cooled |
Cloud Management & Licensing
| Cloud Management Platform | Cisco Meraki Dashboard |
| Management Type | 100% Cloud-Managed |
| License Requirement | Requires Meraki Enterprise License |
| Zero-Touch Provisioning | Yes |
| Remote Troubleshooting Tools | Yes (via dashboard) |
| Automatic Firmware Updates | Yes |
| Syslog Support | Yes |
