Cisco Meraki MS355-48X2 Cloud-Managed 48-Port UPOE Switch

VENDOR: CISCO Mfg Part#: MS355-48X2-HW
1 1

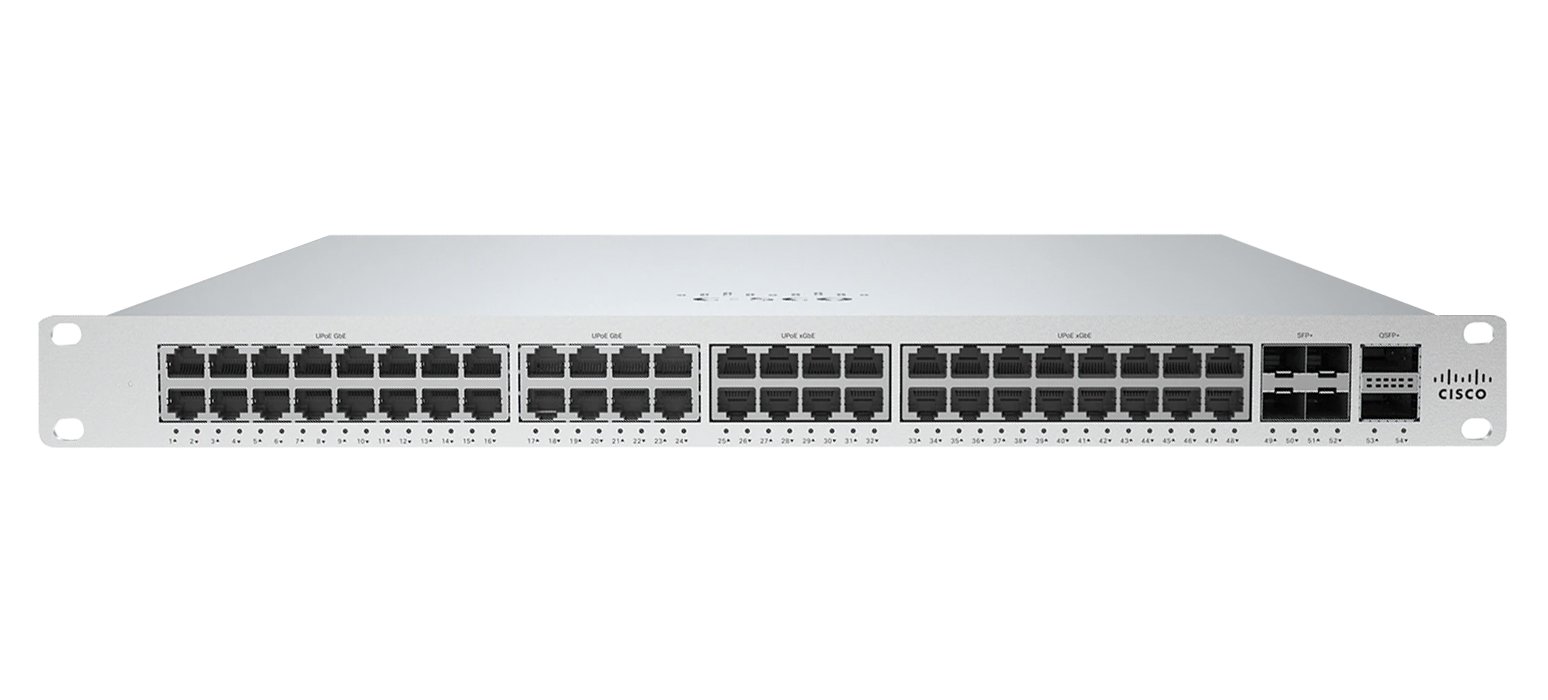

Photo is for illustration purposes only. Actual product may be different.
$9,519.02
$9,519.02
Sale Sold out
MSRP: $17,952.72
Shipping calculated at checkout.
  • Cloud-managed Layer 3 stackable switch
  • 48 Gigabit Ethernet ports and 24 multi-gigabit UPOE ports
  • Trade Agreements Act (TAA) compliant
  • Country of Origin: Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and enterprise use due to TAA compliance.
  • Supports high-density and high-power device deployments with 24 UPOE ports.
  • Cloud-based platform reduces management overhead and increases IT agility.

Product Overview

The Cisco Meraki MS355-48X2 is a cloud-managed Layer 3 switch engineered to serve modern enterprise networks requiring fast access speeds, streamlined management, and advanced power support. With a combination of 48 Gigabit Ethernet ports and 24 multi-gigabit UPOE ports, the switch caters to environments where dense device connectivity and high power output are critical, such as smart offices, large campuses, or government infrastructure.

Equipped with Meraki’s cloud-based management platform, the MS355-48X2 simplifies centralized configuration, monitoring, and troubleshooting from remote locations. The switch is also TAA compliant and manufactured in Taiwan, making it suitable for procurement in sensitive sectors. Its scalable stacking architecture and Layer 3 routing features enhance versatility for multi-site networks.

Specifications

Product Overview
Product Type Cloud-Managed Layer 3 Switch
Model Number MS355-48X2-HW
Form Factor Rack-mountable
Rack Units 1U
Weight 7.9 kg (17.4 lb)
Power Requirements 100-240 VAC, 47-63 Hz
Max Power Consumption 1050W
PoE Budget 740W (with dual power supplies)
Switching Capacity 760 Gbps
Forwarding Rate 567 Mpps

Wireless Features
Wireless Support No integrated wireless features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CE, FCC Part 15 Class A, ICES-003, VCCI, RoHS
Environmental Compliance RoHS, WEEE

Advanced Security Features
IEEE 802.1X Authentication Supported
MAC Whitelisting Supported
Port Security Supported
DHCP Snooping Supported
Dynamic ARP Inspection Supported
Layer 3 ACLs Supported
RADIUS/TACACS+ Integration Supported

Interfaces
Total Ports 48 × 1G/2.5G/5G/10G Ethernet (UPOE)
Multi-Gigabit UPOE Ports 24
10GbE/5GbE/2.5GbE/1GbE UPOE RJ45 Ports 24
1-Gigabit Ethernet Ports 48
SFP+ Uplink Ports 2 × 10G SFP+
Stacking Ports 2 × 100G hardware stacking interfaces
Stacking Bandwidth 400 Gbps
Management Interface 1 × RJ45 management port

Physical & Environmental
Dimensions (W × D × H) 44.0 × 44.0 × 4.4 cm (17.3 × 17.3 × 1.7 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Active cooling with variable-speed fans
Acoustic Noise Level 47.9 dBA at 25°C

Cloud Management & Licensing
Cloud-Based Management Cisco Meraki Dashboard
Licensing Requirement Meraki Enterprise License required
Zero-Touch Provisioning Yes
Remote Configuration Yes
Live Tools Packet capture, cable test, and port status over web
API Support RESTful APIs for monitoring and configuration
