Cisco N3K-C31108TC-V 48x10GT + 6xQSFP VXLAN Switch

VENDOR: CISCO Mfg Part#: N3K-C31108TC-V UPC#: 882658903465

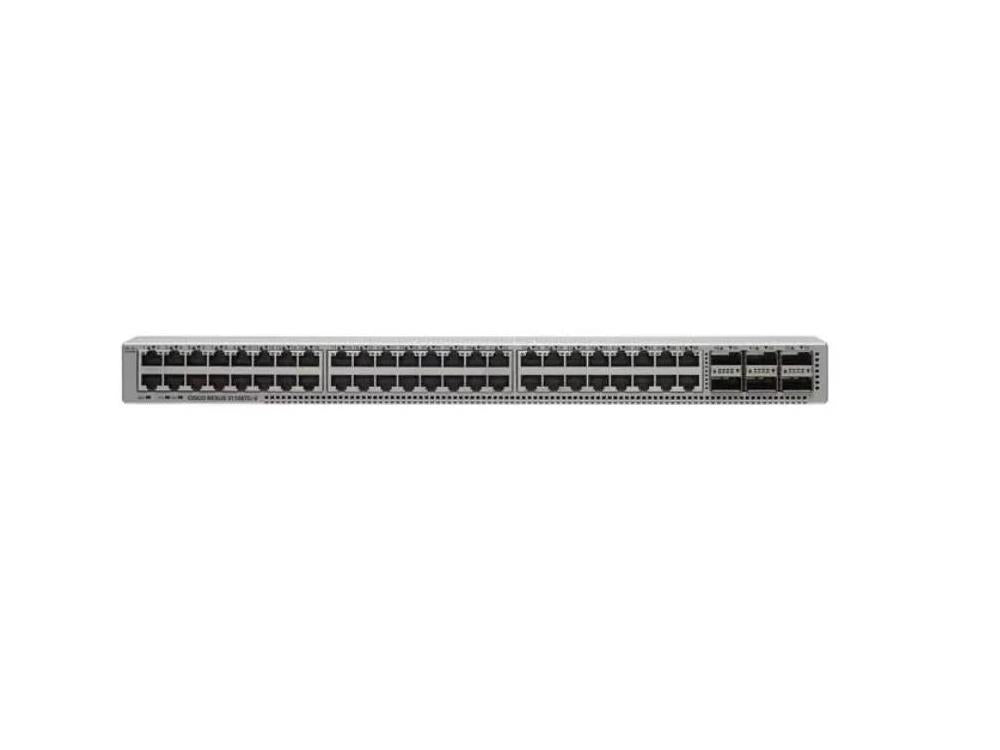

  • The Cisco Nexus 31108TC-V is a compact, high-performance Layer 2/3 switch with 48 RJ-45 ports and 6 QSFP ports supporting 100 Mbps to 100 Gbps. Designed for flexibility and scalability, it enables advanced VXLAN routing and supports major network protocols. Its 1RU form factor and extensive management capabilities make it ideal for next-generation data centers seeking performance and efficiency.
1 1
Photo is for illustration purposes only. Actual product may be different.
$20,265.74
$20,265.74
Sale Sold out
MSRP: $29,477.44
Shipping calculated at checkout.
  • 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps speeds
  • 6 QSFP ports support configurations of 4x10 GbE, 40 GbE, or 100 GbE
  • Line-rate VXLAN routing with Layer 2 and Layer 3 support
  • Dual-core processor with 16 GB RAM and 64 GB flash storage
  • MAC address table supports up to 288,000 entries
  • Jumbo frame support up to 9216 bytes and 1RU form factor
View full details

Key Benefits

Eye-Insights
  • Supports modern data center standards with VXLAN routing and 100 GbE-ready QSFP ports, enhancing scalability.
  • High port density and multi-speed flexibility make it ideal for mixed-environment deployments.
  • Efficient power usage and 1RU footprint provide enterprise-class performance without sacrificing rack space.

Product Overview

The Cisco N3K-C31108TC-V, part of the Nexus 3100 series, is a versatile data center switch designed for high-performance, high-density environments. With 48 RJ-45 ports supporting 100 Mbps, 1 Gbps, and 10 Gbps, and six QSFP ports that handle configurations of 4 x 10 GbE, 40 GbE, or even 100 GbE, this switch is built for flexibility in both top-of-rack and aggregation layer deployments. The device supports line-rate VXLAN routing, essential for scalable multi-tenant networks and cloud-centric architectures.

Engineered in a 1RU form factor, the N3K-C31108TC-V is powered by a dual-core processor with 16 GB of RAM and 64 GB of flash memory. It supports Layer 2 and Layer 3 protocols, including BGP, OSPF, EIGRP, and RIPv2, with management over TFTP, DHCP, and IPv4. Additional highlights include 288,000 MAC address entries, jumbo frame support up to 9216 bytes, and various standard interfaces like a console port, management Ethernet, and USB. Designed for efficiency, it draws only 260–470W of power and conforms to multiple IEEE standards.

Specifications

Primary Information
Network Device Type Switch
Model N3K-C31108TC-V
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 57
Data Link Protocol 10 Gigabit Ethernet
Status Indicators LED
Processor / Type Dual Core
RAM / Total Installed Size 16 GB
Flash Memory / Installed Size 64 GB
Networking Compliant Standards IEEE 802.1D, IEEE 802.1P, IEEE 802.1Q, IEEE 802.1X, IEEE 802.1S
Power / Device Type Power Supply
Media Layer Supported Layer 2, Layer 3
Power / Provided (W) 260 Watt
Max Power Consumption 470 Watt
Power / Voltage Required 100 to 240 VAC, 50 to 60 Hz
Features High performance and scalability; Line-rate Virtual Extensible LAN (VXLAN) routing; Enhanced buffer for applications

Interfaces / Ports
Interfaces 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps; 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet; One 10/100/1000-Mbps management port; One RS-232 serial console port; One USB port

Service&Support
Service & Support Type 1-year limited hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 288000
Jumbo Frame Support Up to 9216 bytes
Remote Management Protocol TFTP; IPv4; DHCP
Routing Protocol BGP, OSPF, RIPv2, EIGRP
Interfaces 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps; 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet; One 10/100/1000-Mbps management port; One RS-232 serial console port; One USB port

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 22.3 Inch
Height 1.72 Inch
Weight 10 Kg

Special Feature
Min Operating Temperature 0 CELSIUS
Max Operating Temperature 40 CELSIUS
Min Storage Temperature -40 CELSIUS
Max Storage Temperature 70 CELSIUS
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes
