CISCO N540-FH-AGG-SYS Front Haul Aggregation Router

VENDOR: CISCO Mfg Part#: N540-FH-AGG-SYS
1 3

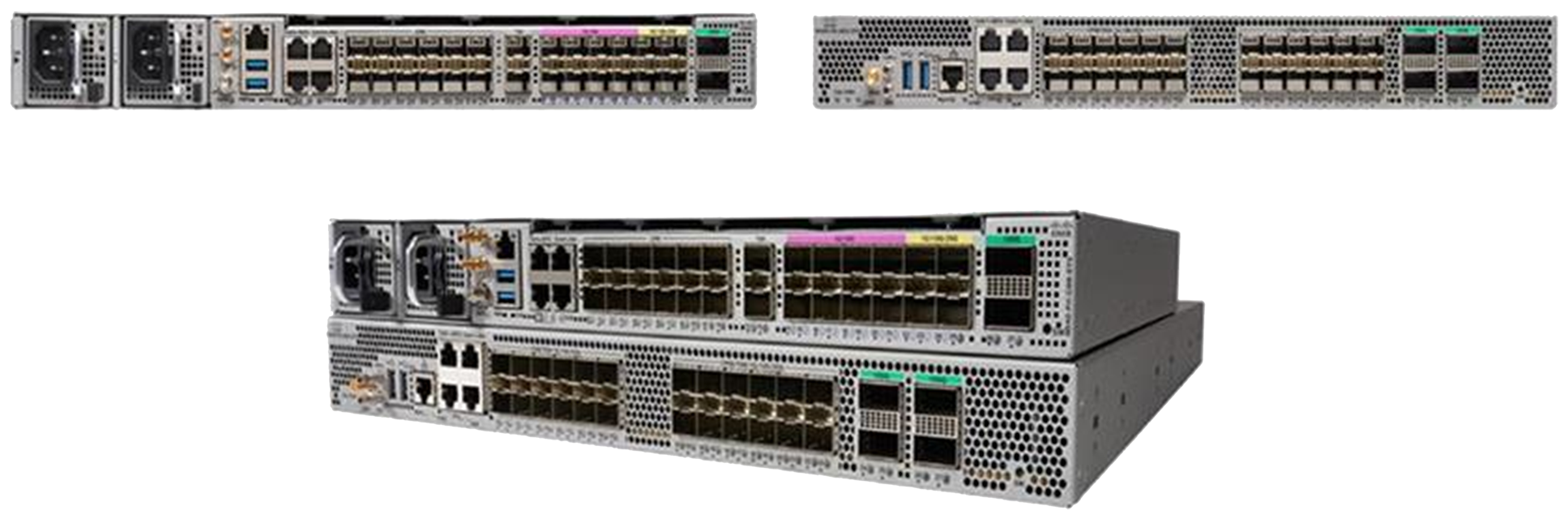

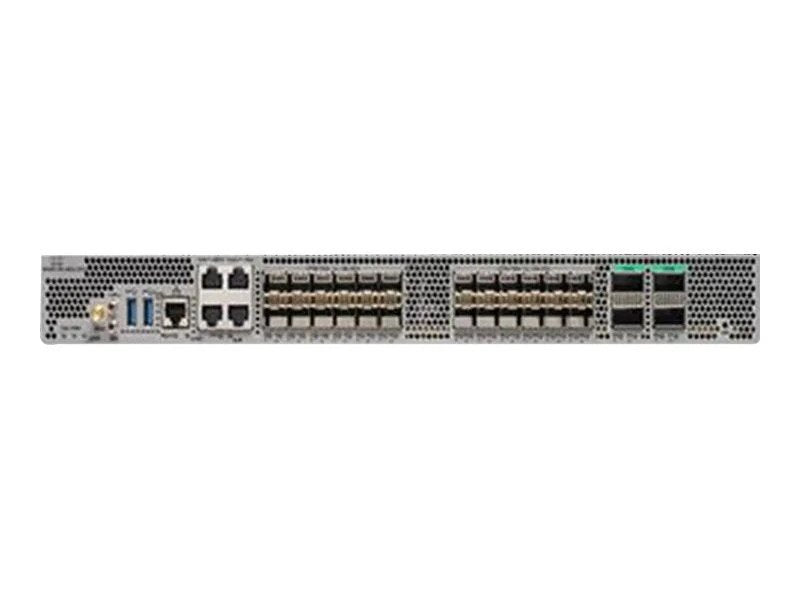

Photo is for illustration purposes only. Actual product may be different.
$60,488.44
$60,488.44
Sale Sold out
MSRP: $88,716.38
Shipping calculated at checkout.
  • TAA compliant for use in government or federally regulated installations
  • Manufactured in Mexico, meeting regulatory origin standards
  • Designed for front haul and aggregation in 4G/5G telecom environments
  • Belongs to Cisco’s Networking product family, ensuring enterprise-grade reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government agencies and secure deployments due to TAA compliance.
  • Optimized for front haul aggregation in telecom networks supporting 4G/5G expansion.
  • Backed by Cisco's Networking family, offering trusted performance and compatibility.

Product Overview

The CISCO N540-FH-AGG-SYS Front Haul Aggregation Router supports high-capacity edge networking and is optimized for aggregation of mobile front haul traffic. Manufactured in Mexico and TAA-compliant, it is suitable for secure or regulated deployments such as federal or multi-tenant infrastructures. Ideal for network expansion in high-bandwidth 4G/5G environments, it offers excellent potential for reliable, scalable traffic management. More detailed specifications are unavailable.

Specifications

Product Overview
Product Type Front Haul Aggregation Router
Form Factor 1RU Rack-mountable
Weight 18.3 lbs (8.3 kg)
Power Requirements AC or DC power supply options
Power Consumption Max 300W
Designed For 4G/5G mobile front haul and edge aggregation
Operating System Cisco IOS XR

Wireless Features
Wi-Fi Standards

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
NEBS Level 3 Compliant Yes
Certifications UL, CE Mark, FCC, ICES

Advanced Security Features
Access Control Lists (ACL) Yes
Secure Boot and Image Signing Yes
MACsec Support Yes (on supported ports)
Control Plane Protection Yes
Authentication Protocols 802.1X, RADIUS, TACACS+
Traffic Encryption Yes, IPsec supported

Interfaces
Total Ports 20
10/25-Gigabit Ethernet Ports 16 SFP28 ports
100-Gigabit Ethernet Ports 4 QSFP28 ports
Management Ports 1x RJ-45 console, 1x micro USB console, 1x RJ-45 management
Timing Ports 2x BITS, 1x ToD, 1x 1-PPS, 1x 10-MHz
Expansion Slots None
Throughput Capacity Up to 800 Gbps

Physical & Environmental
Dimensions (W x D x H) 17.5 x 18.9 x 1.72 in (445 x 480 x 43.6 mm)
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Rail Kit Included Yes
Cooling Method Front-to-back airflow with redundant fans

Cloud Management & Licensing
Management Interface Cisco IOS XR CLI, SNMP, NETCONF, RESTCONF
Licensing Model Cisco Smart Licensing
Cloud Management Platform Cisco Crosswork Network Controller (optional)
Licenses Included Base License (Advanced feature licenses sold separately)
