Cisco N9K-C9348GC-FXP-B1 Nexus 9348GC-FXP 48-Port L3 Switch

VENDOR: CISCO Mfg Part#: N9K-C9348GC-FXP-B1 UPC#: 889728086837
  • The Cisco Nexus 9348GC-FXP is a high-performance, limited-orderable 1U rack-mountable switch that features 48 Gigabit Ethernet ports and 6 uplink ports including 4x 10/25G SFP28 and 2x 40/100G QSFP28. Designed for modern data centers, it delivers line-rate Layer 3 switching with advanced features and scalability, supported by extensive routing protocol options, 24GB RAM, and 128GB SSD storage.
1 1

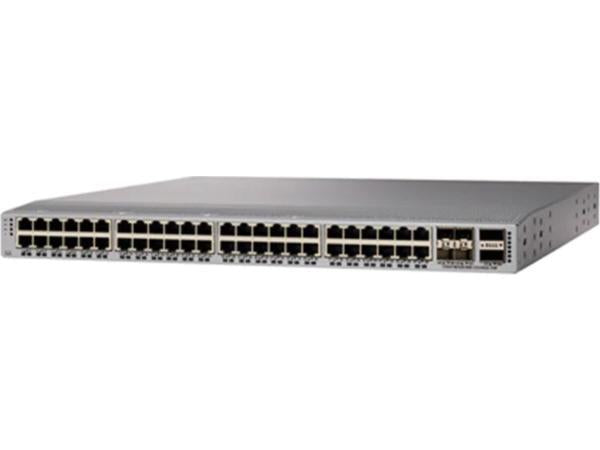

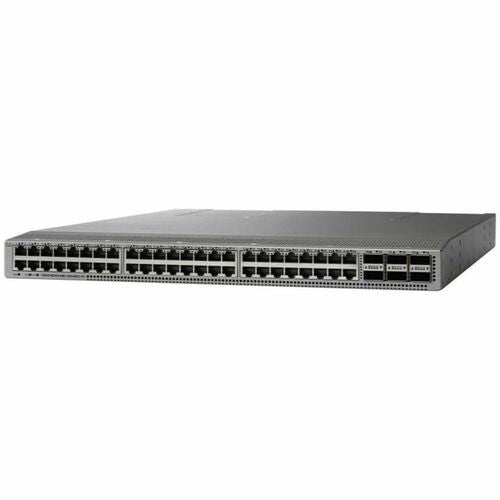

Photo is for illustration purposes only. Actual product may be different.
$13,211.15
$13,211.15
Sale Sold out
MSRP: $19,216.21
Shipping calculated at checkout.
  • 48 x 1000Base-T downlink ports and 6 uplink ports (4x SFP28, 2x QSFP28)
  • Layer 3 managed switch with 696 Gbps bandwidth and latency < 1 µs
  • Support for MPLS, VXLAN, EVPN, and various routing protocols like OSPF and BGP
  • Advanced scalability with 16,000 VRFs, 4,096 VLANs, and 512K MAC table entries
  • Integrated 24 GB RAM and 128 GB SSD for fast data handling and provisioning
  • 1U rack-mountable form factor with optional N+1 power redundancy
View full details

Key Benefits

Eye-Insights
  • Delivers ultra-low latency and up to 696 Gbps bandwidth, making it ideal for next-gen data center applications
  • Supports dense deployments and multi-protocol flexibility with 48 access ports and advanced L3 routing capabilities
  • TAA compliance, extensive standards support, and advanced replacement warranty make it enterprise and government ready

Product Overview

The Cisco Nexus 9348GC-FXP (N9K-C9348GC-FXP-B1) is a high-performance, rack-mountable, Layer 3 switch featuring 48 100M/1G ports, 4x 10/25G SFP28, and 2x 40/100G QSFP28 uplinks, delivering a total bandwidth of 696 Gbps with sub-microsecond latency. It is ideal for edge or top-of-rack deployments with high-density access and speed upgrades. Support for advanced protocols like OSPF, BGP, EIGRP, VXLAN, and MPLS enable seamless integration into complex fabric schemes. The device supports 16,000 VRFs, 4,096 VLANs, and a 512K MAC address table. Built-in 24GB RAM and 128GB SSD provide superior control-plane responsiveness. With optional N+1 power redundancy, a 1U design, and TAA compliance, it is optimized for both space and government-standard environments.

Specifications

Primary Information
Network Device Type Switch
Model Cisco Nexus 9348GC-FXP
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 57
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
RAM / Total Installed Size 24 GB
Power / Voltage Required 100 to 240V AC
MTBF 257860 hours

Interfaces / Ports
Interfaces 48 x 100M/1G BASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100-Gbps QSFP28 ports, 1 RJ-45 and 1 SFP+, USB, RS-232

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
COO MEXICO
TAA compliance Yes
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Service&Support
Service & Support Type 1-year limited hardware warranty

Network
Interfaces 48 x 100M/1G BASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100-Gbps QSFP28 ports, 1 RJ-45 and 1 SFP+, USB, RS-232

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 19.7 Inch
Height 1.72 Inch

UNSPSC Code
UNSPSC Code 43222612
