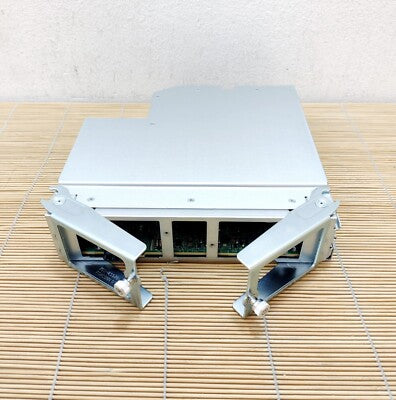

CISCO N9K-C9504-FM-E Fabric Module with 100G Support

VENDOR: CISCO Mfg Part#: N9K-C9504-FM-E=
1 3
Photo is for illustration purposes only. Actual product may be different.
$14,943.77
$14,943.77
Sale Sold out
MSRP: $21,917.53
Shipping calculated at checkout.
  • Supports 100G connectivity for high-bandwidth applications
  • Compatible with both Cisco ACI and NX-OS environments
  • TAA compliant for government procurement standards
  • Designed for Cisco Nexus 9504 modular switch chassis
  • Supports scalable architecture in enterprise network deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables high-throughput data operations with 100G support, ideal for performance-critical networking.
  • Fully compatible with Cisco ACI and NX-OS, ensuring seamless integration into existing infrastructures.
  • TAA compliance supports eligibility for U.S. government and public sector procurement.

Product Overview

The CISCO N9K-C9504-FM-E is a high-performance fabric module designed for the Nexus 9504 switch chassis with support for 100G connectivity. It is compatible with ACI and NX-OS environments, offering flexibility for cutting-edge data center deployments. As a TAA-compliant module with origins in China, Mexico, or Malaysia, it suits a wide range of procurement needs. Its architecture supports higher bandwidth and load optimization within scalable, modular environments.

Specifications

Product Overview
Product Type Fabric Module
Compatible Chassis Cisco Nexus 9504
Supported Bandwidth 100 Gbps
Architecture Support Modular, Scalable
Typical Use Case Data Center Networking
Operating System Compatibility ACI and NX-OS
Form Factor Plug-in Module
Hot Swappable Yes
Power Requirements Supplied by chassis
Redundancy Support Yes

Wireless Features
Wireless Support Not Applicable

Compliance & Origin
TAA Compliance Yes
Country of Origin China / Mexico / Malaysia
EMC Standards FCC Part 15 Class A, ICES-003 Class A, EN55022 Class A
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1
RoHS Compliance Yes
Product Code/SKU N9K-C9504-FM-E=

Advanced Security Features
Secure Boot Supported via chassis and software stack
MACsec Encryption Support Chassis dependent (line card and supervisor specific)
Access Control Policy enforcement via ACI/NX-OS policy models
ASIC-Level Security Enforcement Yes (Nexus 9000 series architecture dependent)

Interfaces
Fabric Speed 100 Gbps per port
Backplane Interface High-speed fabric interface to line cards and supervisors
Number of Fabric Modules per Chassis Supported Up to 6

Physical & Environmental
Dimensions (W x H x D) 15.3 x 7.6 x 1.8 inches
Weight 6.2 lb (2.81 kg)
Mounting Type Installed in chassis slot
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Operating Humidity 5% to 95% (non-condensing)
Altitude Support Up to 13,123 ft (4000 m)
Heat Dissipation 547 BTU/hr (typical)

Cloud Management & Licensing
Cloud Management Supported via Cisco ACI or DCNM
Licensing Requirements No additional license required for hardware module
ACI Fabric Compatibility Yes
NX-OS Mode Compatibility Yes
