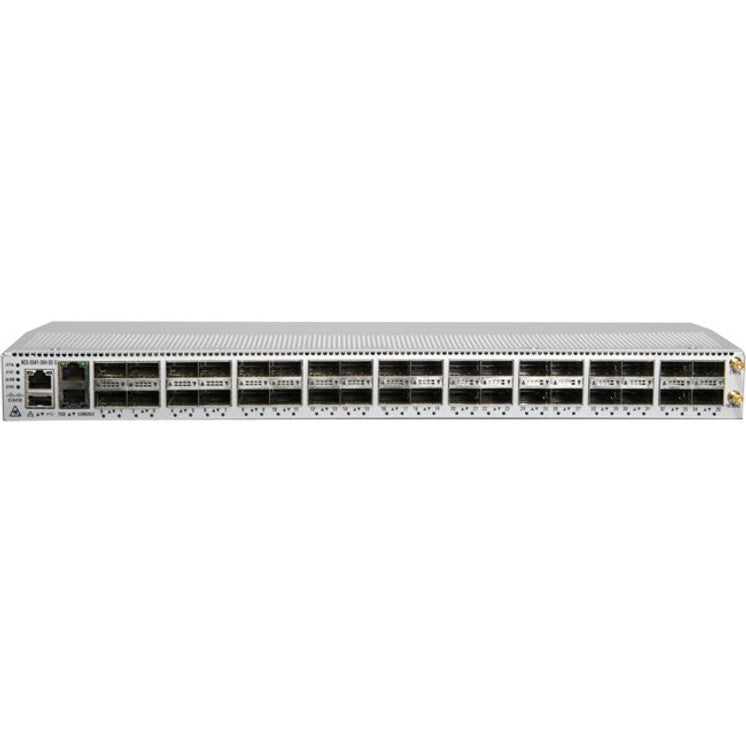

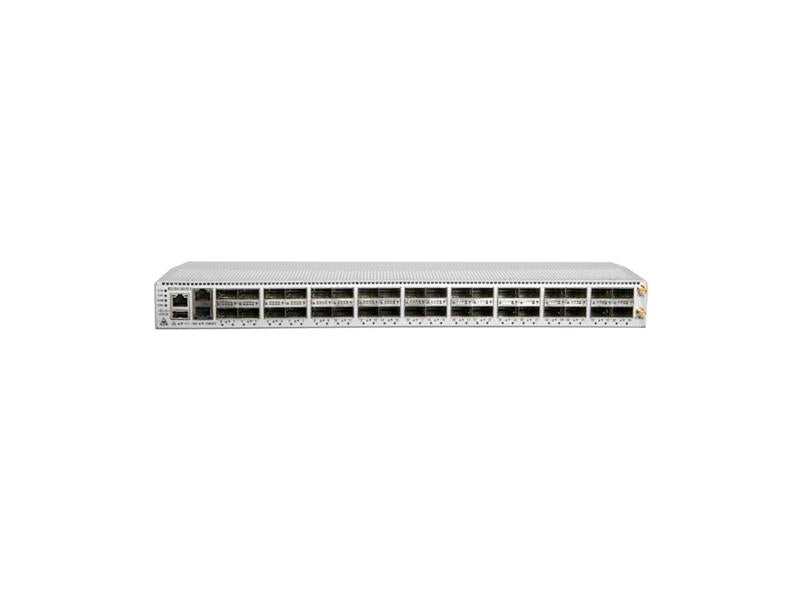

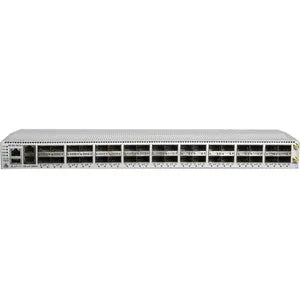

Cisco NCS55A1 Fixed 36x100G Base Chassis Bundle

VENDOR: CISCO Mfg Part#: NCS-55A1-36H-GLE
1 3
Photo is for illustration purposes only. Actual product may be different.
$296,943.25
$296,943.25
Sale Sold out
MSRP: $435,516.75
Shipping calculated at checkout.
  • 36x 100 Gigabit Ethernet ports with QSFP28 form factor
  • Supports 100 Gbps data transfer rate for high-throughput networking
  • Interfaces include RJ45, RS-232, and RS-422 for flexible management
  • 32 GB of installed RAM to support advanced networking functions
  • TAA compliant and RoHS certified for regulatory alignment
  • Compact 1.72-inch chassis height fits standard 19-inch racks

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for high-density 100G Ethernet deployments with 36 ports, enabling scalable network growth.
  • TAA compliance and RoHS certification ensure suitability for government and regulated sectors.
  • Versatile interface support and 32 GB RAM provide enhanced performance and control in complex environments.

Product Overview

The Cisco NCS55A1 Fixed 36x100G Base Chassis Bundle is a high-performance network switch designed for data-intensive environments. It supports 36 ports of 100 Gigabit Ethernet through QSFP28, delivering exceptional bandwidth in a 1RU form factor. Key hardware includes 32 GB RAM and versatile interfaces such as RJ45, RS-232, and RS-422. It meets compliance standards including RoHS and TAA, making it well-suited for enterprise and government applications. Compact yet powerful, this switch enables streamlined deployments in complex network infrastructures.

Specifications

Product Overview
Product Type Network Switch
Model Cisco NCS 55A1
Chassis Bundle NCS55A1 Fixed 36x100G Base Chassis Bundle
Manufacturer Part Number NCS-55A1-36H-GLE
Form Factor 1RU
Installed Memory (RAM) 32 GB
Power Supply Type Redundant AC or DC power supplies (depending on configuration)
Power Consumption (Typical) 630 Watts

Wireless Features
Wireless Support

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin China / United States
EMC Standards EN55032, EN55024, CISPR 32, CISPR 24
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1
Certifications CE, FCC, UL, CSA, VCCI, BSMI

Advanced Security Features
Access Control Role-Based Access Control (RBAC)
Authentication Protocols RADIUS, TACACS+
Secure Management SSHv2, SNMPv3, HTTPS
MACsec Support Yes
Control Plane Protection Yes
Infrastructure ACLs Yes

Interfaces
Total Ports 36
Port Type QSFP28
Data Transfer Rate per Port 100 Gbps
Data Link Protocol 100 Gigabit Ethernet
Management Interfaces RJ45; RS-422; RS-232
Console Port RJ45 (RS-232)
Auxiliary Port RS-422
USB Ports 1 x USB Type A

Physical & Environmental
Width 17.3 in (43.94 cm)
Depth 30 in (76.2 cm)
Height 1.72 in (4.37 cm)
Weight 39.7 lbs (18 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity 5% to 85% (non-condensing)
Storage Relative Humidity 5% to 95% (non-condensing)
Mounting Type Rack-mountable
Cooling Front-to-back or back-to-front airflow (field configurable)

Cloud Management & Licensing
Management Interface CLI via console and SSH; SNMPv2/v3; NETCONF/YANG; gNMI; Cisco IOS XR
Cloud Managed No (locally managed with remote capabilities)
Included Licenses Base OS license included; additional licenses required for advanced features
Supported Management Tools Cisco Prime; Cisco Crosswork; Cisco Network Services Orchestrator (NSO)
