Cisco NEXUS 36180YC-R 48P 10/25G + 6P QSFP28 Managed Switch

VENDOR: CISCO Mfg Part#: N3K-C36180YC-R UPC#: 889728021449
  • The Cisco NEXUS 36180YC-R offers 48 ports of 1/10/25G SFP+ and 6 ports of 40/100G QSFP28, delivering exceptional flexibility and high-speed connectivity in a 1U rack-mountable form factor. Designed for modern data centers, this managed Layer 3 switch features advanced routing protocols, MACsec security, and robust automation support through NETCONF and EEM.
1 1

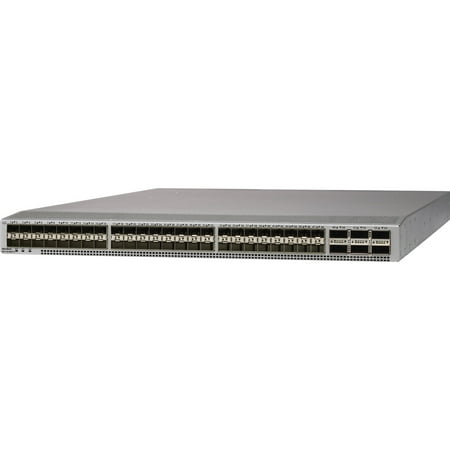

Photo is for illustration purposes only. Actual product may be different.
$36,004.85
$36,004.85
Sale Sold out
MSRP: $52,370.69
Shipping calculated at checkout.
  • 48 x 1/10/25 Gigabit SFP+ and 6 x 40/100 Gigabit QSFP28 ports for high-speed connectivity
  • 1.8 Tbps switching capacity with 1.67 Bpps forwarding rate
  • Supports up to 750,000 MAC addresses, 256,000 LPM routes, and 128,000 multicast entries
  • Protocols supported: OSPF, BGP, RIP-2, EIGRP, IGMPv2/3, VRRP, PIM-SM, MSDP
  • Power redundancy with two hot-plug internal power supplies (771W total)
  • Comprehensive feature set including MACsec, POAP, EEM, RBAC, and SNMP v1/2/3
View full details

Key Benefits

Eye-Insights
  • Delivers exceptional port flexibility and high throughput to handle modern multi-Gigabit data center workloads
  • Advanced Layer 3 routing and automation features enhance scalability and reduce operational complexity
  • Robust redundancy and global compliance make it a reliable core switch for secure, always-on enterprises

Product Overview

The Cisco NEXUS 36180YC-R is a high-performance, rack-mountable Layer 3 managed switch engineered for agile and scalable data center deployments. Featuring 48 ports of 1/10/25G SFP+ and 6 ports of 40/100G QSFP28, it delivers a switching capacity of 1.8 Tbps and a forwarding rate up to 1.67 Bpps. Support for a MAC Address Table of 750,000 entries, 256,000 LPM routes, and 128,000 multicast entries makes it ideal for complex network topologies.

Protocols like OSPF, BGP, EIGRP, and VRRP ensure highly interoperable routing. With security features like MACsec and automation frameworks such as Power On Auto Provisioning and Embedded Event Manager, the switch promotes both integrity and operational efficiency. It supports remote management via SNMP, Telnet, TFTP, and NETCONF.

Redundant 771W hot-swappable power supplies and robust environmental tolerances make this switch resilient in diverse settings. Additionally, compliance with global standards and a one-year limited warranty offer added peace of mind for enterprise deployments.

Specifications

Primary Information
Network Device Type Switch
Form Factor 1RU
Networking / Ports Qty 57
Data Transfer Rate 100 Gbps
Data Link Protocol Gigabit Ethernet
Flash Memory / Installed Size 128 GB
Max Power Consumption 771 Watt

Special Feature
COO BRAZIL / CHINA / MEXICO / UNITED STATES
TAA compliance Yes

Interfaces / Ports
Interfaces 48p 10/25G and 6p QSFP28; Management, console, and USB flash-memory ports

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 26.85 Inch
Height 1.72 Inch

UNSPSC Code
UNSPSC Code 43222612

Network
Interfaces 48p 10/25G and 6p QSFP28; Management, console, and USB flash-memory ports
