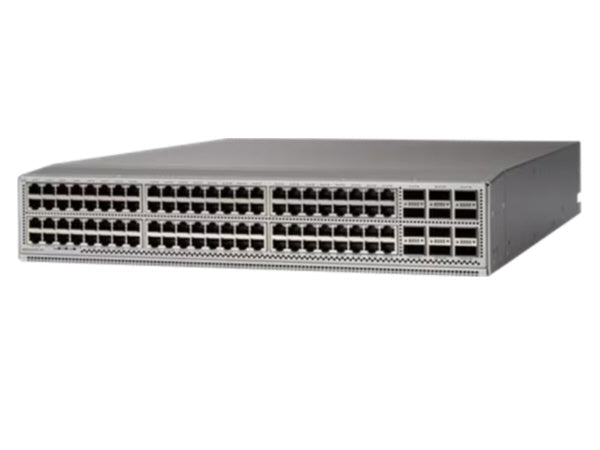

Cisco Nexus 9300 N9K-C93216TC-FX2 112-Port 10G/100G Switch

VENDOR: CISCO Mfg Part#: N9K-C93216TC-FX2 UPC#: 889728208000
  • High-performance Cisco Nexus 9300 N9K-C93216TC-FX2 switch offers 96 10GBase-T and 12 QSFP28 100GbE ports for scalable data center and enterprise networking. With advanced FCoE NPV support and up to 256,000 MAC addresses, it delivers robust LAN and SAN convergence on a lossless Ethernet backbone.
1 1
Photo is for illustration purposes only. Actual product may be different.
$43,654.07
$43,654.07
Sale Sold out
MSRP: $49,100.49
Shipping calculated at checkout.
  • 112 total ports including 96 x 10GBASE-T and 12 x 40/100-Gigabit QSFP28
  • 100Gbps data transfer rate for high-speed networking
  • Fibre Channel and FCoE N-Port Virtualization (NPV) support for network scalability
  • 256,000 MAC address table capacity for dense traffic environments
  • Supports IPv4 and IPv6 remote management for flexibility
  • MTBF of 290,680 hours for long-term reliability
View full details

Key Benefits

Eye-Insights
  • Enables high-bandwidth data center connectivity with 96 x 10G and 12 x 100G ports
  • Facilitates LAN and SAN convergence with advanced FCoE and NPV features
  • Built for reliability and scalability with high MTBF and sheer port density

Product Overview

The Cisco Nexus 9300 N9K-C93216TC-FX2 is an enterprise-grade Layer 2/3 switch featuring 96 x 100M/1/10GBASE-T and 12 x 40/100-Gigabit QSFP28 ports for maximum deployment flexibility. Supporting a 100Gbps data rate and 256,000 MAC addresses, it's engineered for high-throughput environments. With Fibre Channel over Ethernet (FCoE) and N-Port Virtualization (NPV), it enables centralized SAN management and converged networking. Designed for efficiency, it operates within a 0–40°C temperature range and offers a rated MTBF of over 290,000 hours, ensuring consistent uptime. TAA compliance makes it a secure choice for regulated environments.

Specifications

Primary Information
Network Device Type Switch
Model N9K-C93216TC-FX2
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 112
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Power Consumption Operational 580 Watt
Max Power Consumption 965 Watt
MTBF 290680 hours
Features Fibre Channel and Fibre Channel over Ethernet (FCoE) N-Port Virtualization (NPV) support enables the network administrator to control domain IDs and points of management on a Fibre Channel network as it scales. This feature enables LAN and SAN converged networks on a lossless, reliable Ethernet network.

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gigabit QSFP28 ports; Console port (RS232 port); Management port (RJ-45 port); Management port (SFP+ port); USB port;

Special Feature
COO BRAZIL / CHINA / MEXICO
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
MAC Address Table Size 256000
Remote Management Protocol IPv6; IPv4
Interfaces 96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gigabit QSFP28 ports; Console port (RS232 port); Management port (RJ-45 port); Management port (SFP+ port); USB port;

Dimensions&Miscellaneous
Width 17.41 Inch
Depth 23.6 Inch
Height 3.38 Inch
