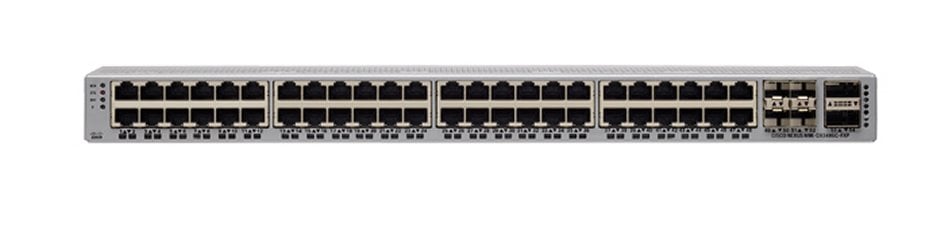

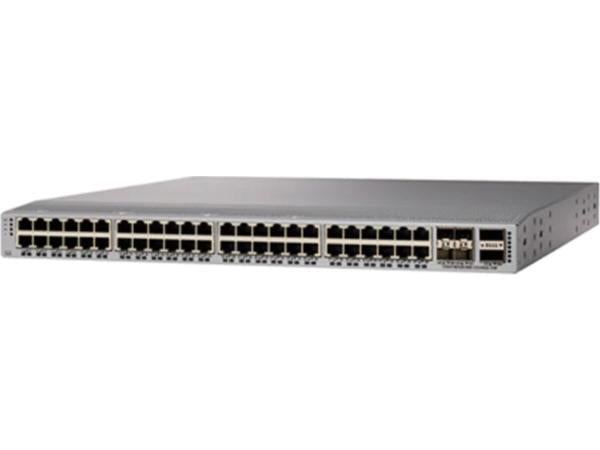

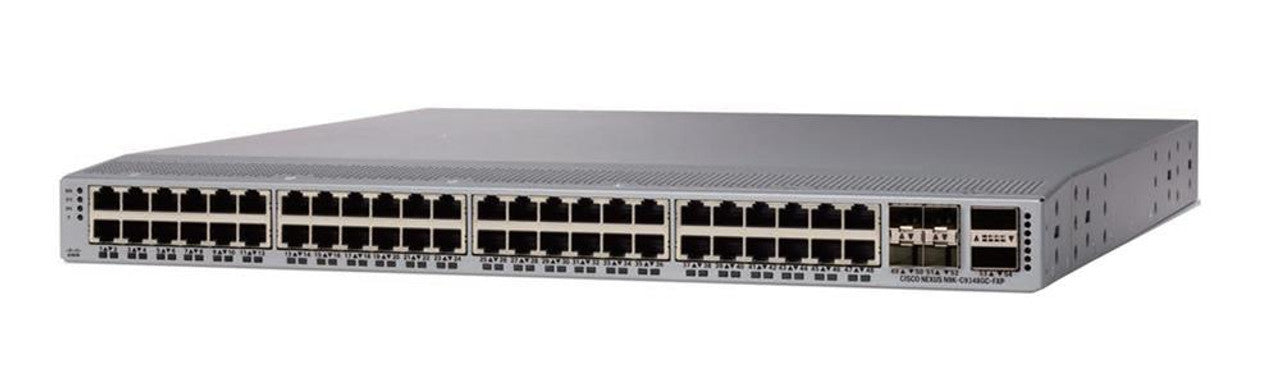

Cisco Nexus 9348GC-FXP 48-Port Switch Bundle w/ 8x 100G Optics

VENDOR: CISCO Mfg Part#: N9K-C9348-FX-B24C UPC#: 889728092715
  • The Cisco Nexus 9348GC-FXP is a high-performance 1U rack-mountable switch offering 48x 100M/1G BASE-T ports, 4x SFP28 ports, and 2x 40/100-Gbps QSFP28 uplinks. Engineered for enterprise-scale Layer 2 and Layer 3 networking, it delivers excellent throughput with 696 Gbps bandwidth. Additional features include 24 GB RAM, 128 GB SSD, redundant hot-swappable power supplies, and a 1-year hardware warranty, making it ideal for top-of-rack and dense edge deployments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$29,698.47
$29,698.47
Sale Sold out
MSRP: $43,197.77
Shipping calculated at checkout.
  • 48 x 1000Base-T ports plus 4 x 1/10/25G SFP28 and 2 x 40/100G QSFP28 uplinks
  • Switching bandwidth up to 696 Gbps
  • 24 GB RAM and 128 GB SSD for high-speed data processing and storage
  • Redundant hot-swappable 350W power supplies (1+1 configuration)
  • Management options include RJ-45, SFP+, USB, and RS-232 interfaces
  • MTBF rated at 257,860 hours with industry-standard certifications
View full details

Key Benefits

Eye-Insights
  • Supports high-density environments with a total of 54 ports, including high-speed 100G QSFP28 uplinks
  • Includes 8x 100G optical transceivers, offering ready-to-deploy scalability and savings on additional optics
  • Rack-mountable 1U form factor and redundant power design ensure space efficiency and system uptime

Product Overview

The Cisco Nexus 9348GC-FXP is a powerful, enterprise-grade switch designed to handle dense and high-speed networking environments. This 1U rack-mountable switch features 48 1GBASE‑T ports, 4 multi-rate (1/10/25G) SFP28 uplinks, and 2 QSFP28 high-speed ports. This bundle includes 8x 100G optical transceivers, ready for high-throughput deployments.

Designed with redundant power supplies, 696 Gbps bandwidth, and manageability options such as USB, serial, RJ-45, and SFP+, this switch meets the demands of modern data center and enterprise networks. It ensures durability with its MTBF of over 257,000 hours and supports global compliance standards, providing trust and compatibility in diverse environments.

Specifications

Primary Information
Network Device Type Switch
Model Cisco Nexus 9348GC-FXP
Networking / Ports Qty 58
Form Factor 1RU
Power / Device Type Power Supply
Power Consumption Operational 178 Watt
Power / Voltage Required AC 100 to 240V,DC -36V to -72V
Features Architectural flexibility; Extensive programmability; High Scalability, Flexibility, and Security;Intelligent Buffer Management;LAN and SAN Convergence
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Data Link Protocol Gigabit Ethernet
Processor / Type Quad-Core
RAM / Total Installed Size 24 GB
Media Layer Supported Layer 2,Layer 3
Max Power Consumption 287 Watt
MTBF 257860 hours

Special Feature
COO BRAZIL / CHINA / MEXICO
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
RoHS Y

Dimensions&Miscellaneous
Depth 19.7 Inch
Height 1.72 Inch
Weight 14.2 lbs.
Width 17.3 Inch

Interfaces / Ports
Interfaces 48 x 100M/1G BASE-T ports,4 x 1/10/25-Gbps SFP28 ports,2 x 40/100-Gbps QSFP28 ports, 1 RJ-45,1 SFP+, USB,RS-232

Service&Support
Service & Support Type 1-year limited hardware warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 512000
Remote Management Protocol TCP/IP; IPv6; IPv4
Routing Protocol EIGRP,RIPv2,OSPF
Interfaces 48 x 100M/1G BASE-T ports,4 x 1/10/25-Gbps SFP28 ports,2 x 40/100-Gbps QSFP28 ports, 1 RJ-45,1 SFP+, USB,RS-232
