| Product Type | Data Center Switch |
| Model | Cisco Nexus 9364C |
| Form Factor | Rack-mountable |
| Height (Rack Units) | 2U |
| Weight | Approximately 36.6 lbs (16.6 kg) |
| RAM | 32 GB |
| Flash Memory | 128 GB |
| Internal Storage | 128 GB SSD |
| Power Supply Type | Internal, hot-plug |
| Redundant Power Supply | Optional |
| Power Consumption (Operational) | 1622 Watt |
| MTBF | 237,760 hours |

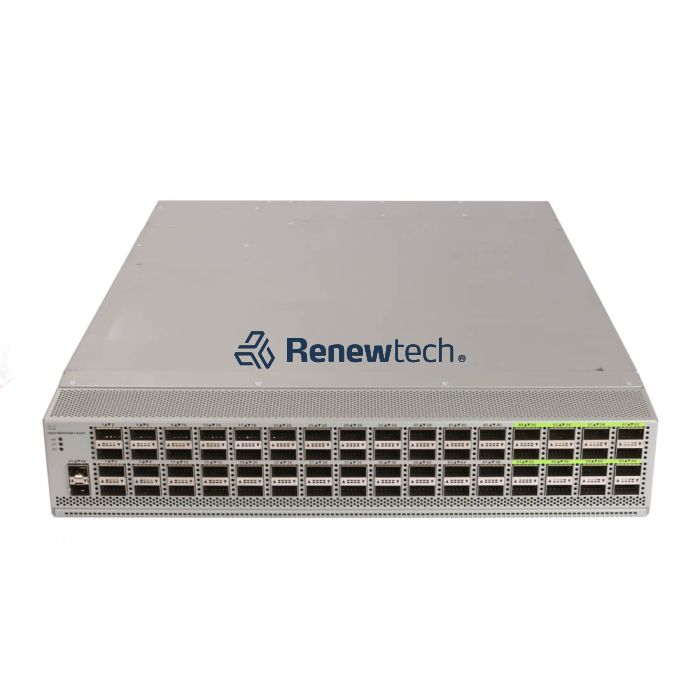

Cisco Nexus 9364C 64-Port 40/100G QSFP28 Spine/Leaf Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$31,500.12
Regular price
Sale price
$31,500.12
Unit price
per
MSRP: $62,069.20
Shipping calculated at checkout.
Couldn't load pickup availability
- 64 x 40/100G QSFP28 ports supporting breakout capability
- MAC address table supporting up to 256K entries
- Advanced Layer 2/3 protocol support, including BGP, OSPF, PIM-SM, and ECMP
- 32 GB RAM and 128 GB SSD for enhanced performance and reliability
- Redundant, hot-swappable internal power supply
- Comprehensive remote management via RESTCONF, NETCONF, and CLI
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High port density and QSFP28 flexibility allow scalable deployment in modern spine-leaf architectures.
- Extensive protocol and virtualization support ensure integration into complex enterprise networks.
- TAA compliance and global safety certifications make it suitable for government and regulated sector usage.
Product Overview

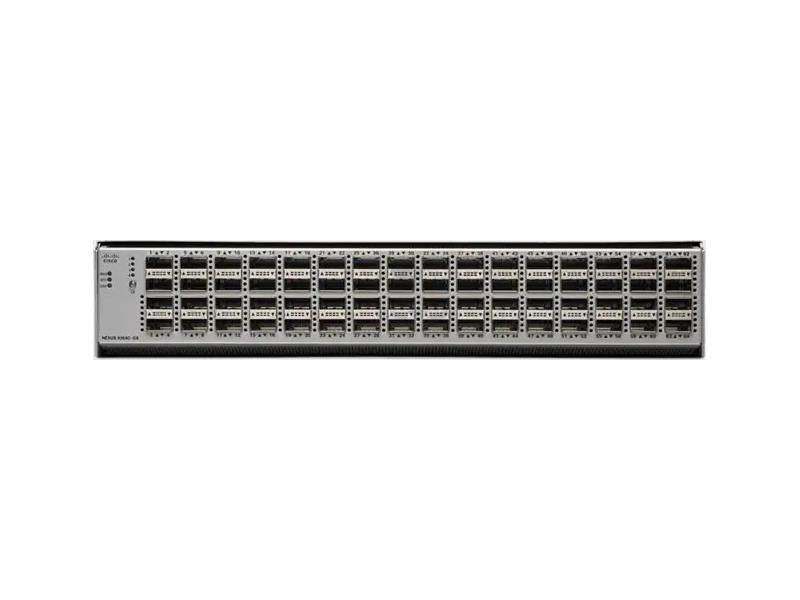

The Cisco Nexus 9364C is a high-performance, rack-mountable switch engineered for modern enterprise and service provider data centers implementing Cisco ACI or NX-OS. Offering 64 ports of 40/100G QSFP28 throughput, it supports both spine and leaf roles in modular network architectures. The switch comes equipped with a host of Layer 2 and Layer 3 features, including support for OSPF, BGP, EIGRP, ECMP, and multicast protocols like PIM-SM and MSDP, making it capable of handling complex routing configurations.
With a substantial MAC address table size of 256K entries and support for up to 896,000 IPv4 host and routing entries, the Nexus 9364C ensures efficient traffic flow and minimal latency. It includes advanced capabilities like EVPN, VTEP, DCBX, RDMA, breakout port configurations, and MACsec for encrypted communications. The internal hot-swappable power supply and optional redundancy contribute to its uptime, while the 80MB system buffering enhances performance during heavy traffic loads. On the hardware side, it integrates 32 GB RAM, a 128 GB flash memory, and a 128 GB SSD, emphasizing speed and reliability throughout the system.
Built for maximum agility and control, the Nexus 9364C also supports modern management protocols including NETCONF, RESTCONF, and CLI interfaces over IPv6, HTTP, and HTTPS. The switch is certified under various global compliance standards and is TAA-compliant, ensuring deployment eligibility in regulated environments. Overall, the Cisco Nexus 9364C delivers robust scalability and protocol versatility in a compact 2RU footprint, offering high return on infrastructure investment for mission-critical networks.
Specifications
Product Overview
Cloud Management & Licensing
| Management Interfaces | CLI, NETCONF, RESTCONF |
| Management Protocols | IPv6, HTTP, HTTPS |
| APIs Supported | Yes (NETCONF, RESTCONF) |
| Deployment Modes | Cisco ACI and NX-OS |
Routing & Layer 3 Features
| Routing Protocols | OSPF, RIP-2, BGP, EIGRP, PIM-SM, MSDP, ECMP, RSVP |
| Maximum IPv4 Routing Entries | 896,000 |
| Maximum IPv6 Routing Entries | Not specified |
| ECMP Paths | 64 |
| Port Channels Supported | 512 |
| Links per Port Channel | 32 |
Physical & Environmental
| Dimensions (W x D x H) | 17.4 in x 22.6 in x 3.4 in |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity (Operating) | 5% to 95% (non-condensing) |
Warranty & Support
| Manufacturer Warranty | 1-year limited warranty |
| Support Type | Advance hardware replacement |
| Support Response Time | 10 days |
Interfaces
| Total Ports | 64 |
| Port Type | 100G QSFP28 / 40G QSFP28 |
| Interface Types | 64 x 100/40 GbE QSFP28, 1 x RJ-45 Mgmt, 1 x SFP+ Mgmt, 1 x USB, 1 x Serial (RS-232) |
| Port Speed | 40/100 Gbps per port |
| Breakout Support | Yes |
| Data Buffer Size | 80 MB |
Advanced Security Features
| MACsec Encryption | Supported |
| ACL Support | Yes |
Switching Capabilities
| MAC Address Table Size | 256,000 entries |
| Virtual Interfaces (VLANs) | 3967 |
| Multicast Routes | 32,000 |
| SPAN Sessions | 4 |
| HSRP Groups | 490 |
| MST Instances | 64 |
| NAT Entries | 1023 |
| RPVST Instances | 3967 |
Compliance & Origin
| Country of Origin | Brazil / China / Mexico |
| TAA Compliance | Yes |
| Compliance Standards | IEEE 802.1ae, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, FCC CFR47 Part 15 B Class A, EN 55022 Class A, EN55024, VCCI Class A, ICES-003 Class A, KN22 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition |
