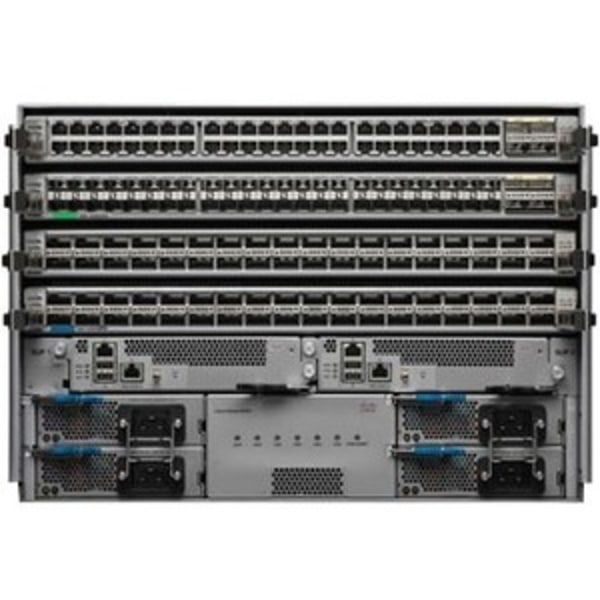

Cisco Nexus 9504 Chassis with 4 Linecard Slots

VENDOR: CISCO Mfg Part#: N9K-C9504 UPC#: 882658661532
  • NEXUS 9504 CHASSIS WITH 4 LINECARD SLOTS
1 1

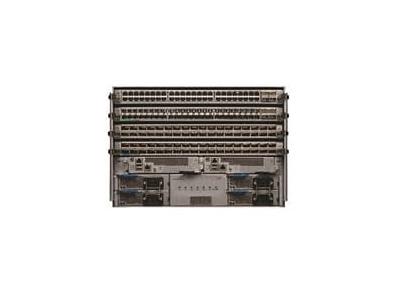

Photo is for illustration purposes only. Actual product may be different.
$12,267.99
$12,267.99
Sale Sold out
MSRP: $17,993.06
Shipping calculated at checkout.
  • 4 total expansion slots for customizable switch configurations
  • Modular, rack-mountable 7.1U chassis with front-to-back airflow
  • Supports hot-plug internal power supplies with redundant power options
  • Operating temperature range: 32°F to 104°F; humidity: 5-95% non-condensing
  • Compliance with major international standards including RoHS, UL, VCCI, and EN certifications
  • TAA compliant and manufactured in Brazil, China, Mexico, and the U.S.

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Scalable architecture with 4 free expansion slots supports modular growth and adaptability.
  • Power redundancy and hot-pluggable components offer increased system uptime and easier maintenance.
  • Comprehensive compliance to international standards and TAA certification ensures suitability for global and government deployments.

Product Overview

The Cisco Nexus 9504 Chassis is a modular, rack-mountable network switch built for enterprise and data center use. With four expansion slots and support for hot-plug, redundant power supplies, the system ensures high scalability, fault tolerance, and service continuity. Designed with front-to-back airflow and engineered to comply with an array of international standards, it is capable of performing in challenging thermal and environmental conditions. Its 7.1U enclosure allows for efficient space utilization in rack-mounted applications, and TAA compliance assures suitability for government and regulated use cases. Built by Cisco, a trusted name in networking, the Nexus 9504 delivers a future-ready platform for core and aggregation layers in sophisticated network environments.

Specifications

Product Overview
Product Type Modular Switch
Form Factor Rack-mountable 7.1U
Device Type Switch
Chassis Configuration Modular with 4 linecard slots
Installed Modules (Max) 0 (installed) / 4 (max)
Power Redundancy Yes
Power Supply Type Internal power supply (hot-plug, not included)
Maximum Supported Power Supplies 3
Airflow Direction Front to back
Weight 86.64 lbs

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliant Yes
Country of Origin Brazil / China / Mexico / United States
Certifications UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, VCCI Class A, ICES-003 Class A
Environmental Compliance RoHS
EMI Standards CISPR 22 Class A, EN 55022 Class A, EN 55024, AS/NZS 60950-1, KN22, CNS 13438(95)
Safety Standards IEC/EN/UL 60950-1 Second Edition

Advanced Security Features
Network Security Features Dependent on installed supervisor and software licenses

Interfaces
Expansion Slots 4 x linecard expansion slots
Linecard Interface Support Dependent on installed linecards (sold separately)
Management Ports Dependent on supervisor module

Physical & Environmental
Dimensions (W x D x H) 17.5 in x 30.5 in x 12.4 in
Width 17.5 in
Depth 30.5 in
Height 12.4 in
Min Operating Temperature 32 °F (0 °C)
Max Operating Temperature 104 °F (40 °C)
Min Storage Temperature -40 °F (-40 °C)
Max Storage Temperature 158 °F (70 °C)
Humidity Range Operating 5 - 95% (non-condensing)
Humidity Range Storage 5 - 95% (non-condensing)

Cloud Management & Licensing
Licensing Model Cisco Smart Licensing (based on software and linecards)
Supported Management Tools Cisco Data Center Network Manager (DCNM), CLI, SNMP
Management Interface Via installed supervisor engine and software
Included Cloud Features Dependent on software package
