Cisco QSFP-100G-SR4-S 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m

VENDOR: CISCO Mfg Part#: QSFP-100G-SR4-S= UPC#: 882658836640
  • Cisco QSFP-100G-SR4-S= is a high-performance QSFP transceiver designed for 100 Gigabit Ethernet over OM4 multimode fiber, delivering speeds up to 100 Gbps. This transceiver operates over a 100-meter distance using MPO-12 connectors and features 850nm wavelength laser technology for optimal signal clarity. Backed by a 5-year standard warranty, it ensures high-speed and reliable networking for data centers and enterprise environments.
1 1

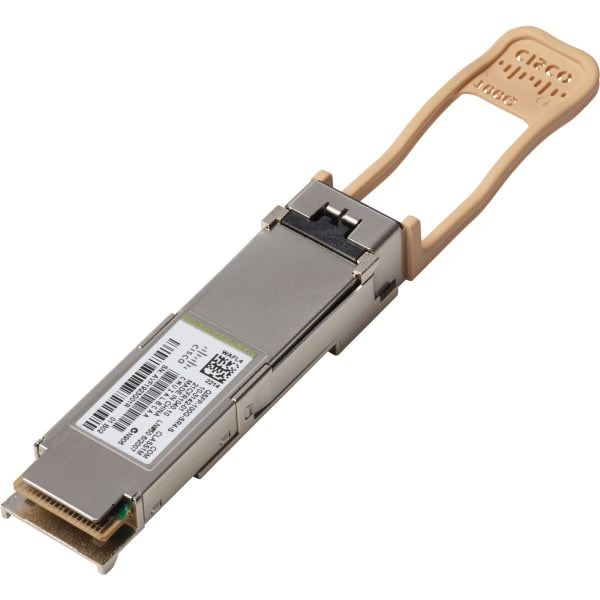

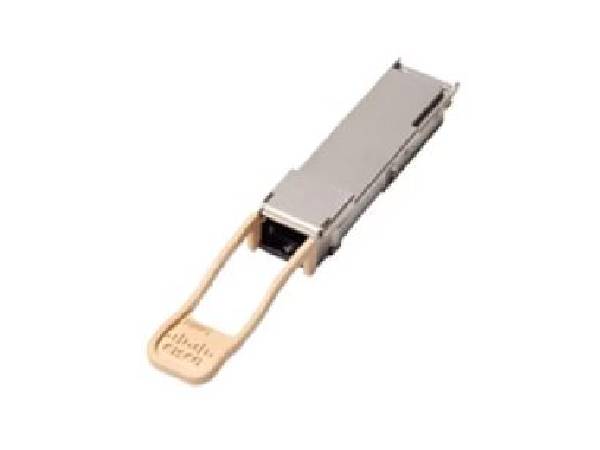

Photo is for illustration purposes only. Actual product may be different.
$2,803.98
$2,803.98
Sale Sold out
MSRP: $2,803.99
Shipping calculated at checkout.
  • 100 Gbps data transfer rate for high-speed Ethernet applications
  • 850nm wavelength laser optimized for OM4 multimode fiber
  • MPO-12 interface supports dense fiber connections in short-range environments
  • IEEE 802.3 compliant for assured interoperability
  • Compact dimensions: 72.4 mm (D) x 18.4 mm (W) x 13.5 mm (H)
  • Standard 5-year manufacturer warranty for extended support
View full details

Key Benefits

Eye-Insights
  • Delivers 100 Gbps throughput using OM4 fiber and MPO-12 interface, ideal for high-performance data links
  • Complies with IEEE 802.3 standards to ensure multi-vendor network compatibility
  • TAA compliance and 5-year warranty make it suitable for government and enterprise IT procurement

Product Overview

The Cisco QSFP-100G-SR4-S= is a high-speed 100GBASE-SR4 compatible QSFP transceiver engineered to meet the demands of modern enterprise and data center environments. Utilizing the MPO-12 fiber interface and designed for OM4 multimode fiber (MMF), it supports data transmission at 100 Gbps over distances up to 100 meters. Its 850nm wavelength laser aligns with IEEE 802.3 compliance standards and ensures efficient signal performance over cost-effective short-reach optical links.

Constructed with compact dimensions—72.4 mm depth, 18.4 mm width, and 13.5 mm height—the transceiver integrates easily into dense networking environments. Engineered for wired connectivity and backed by a robust 5-year warranty, it provides long-term value and support. With TAA compliance and a country of origin designation from either China or Taiwan, the Cisco QSFP-100G-SR4-S= supports regulatory and sourcing requirements for government and large enterprise applications.

This transceiver is ideal for aggregation switches, top-of-rack to spine connectivity, and other high-throughput applications in short-reach fiber infrastructure. Its proven compatibility, reliability, and performance make it a secure investment in any 100G Ethernet deployment.

Specifications

Primary Information
Device Type Transceiver
Form Factor QSFP
Cabling Type MMF
Data Transfer Rate 100 Gbps
Connectivity Technology Wired
Wave Length 850nm
Max Transfer Distance 100 M
Interfaces QSFP, MPO-12

UNSPSC Code
UNSPSC Code 43222608

Dimensions&Miscellaneous
Width 18.4 Mm
Depth 72.4 Mm
Height 13.5 Mm

Special Feature
COO CHINA / TAIWAN
TAA compliance Yes

Networking
Data Link Protocol 100 Gigabit Ethernet
Networking Compliant Standards IEEE 802.3

Service&Support
Service & Support Type Standard warranty: 5 years
