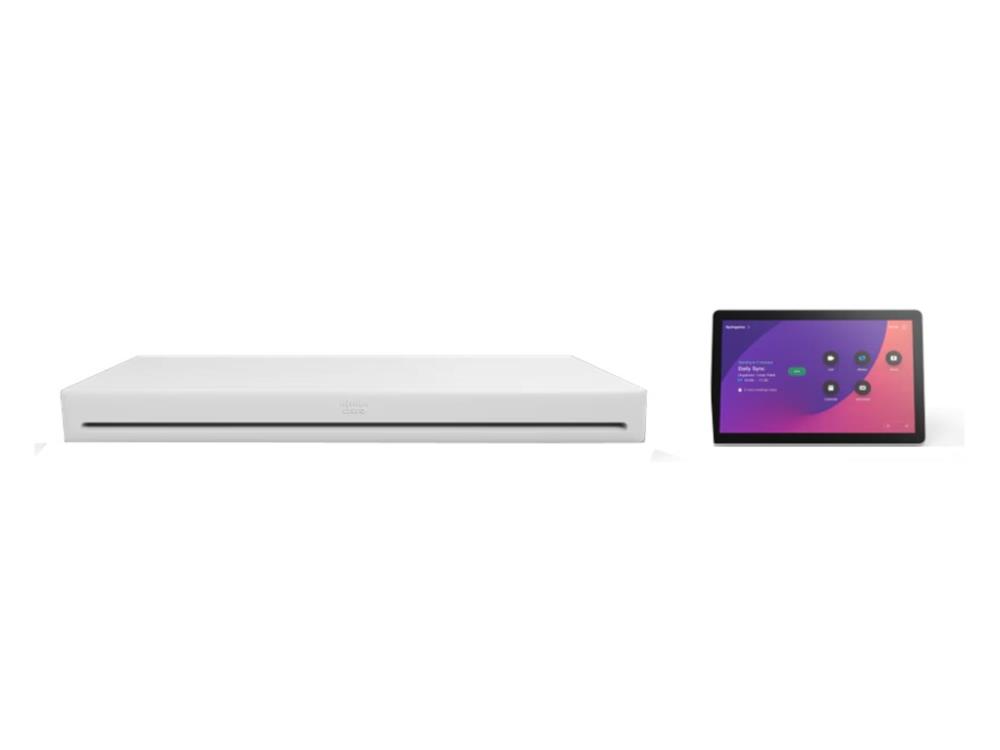

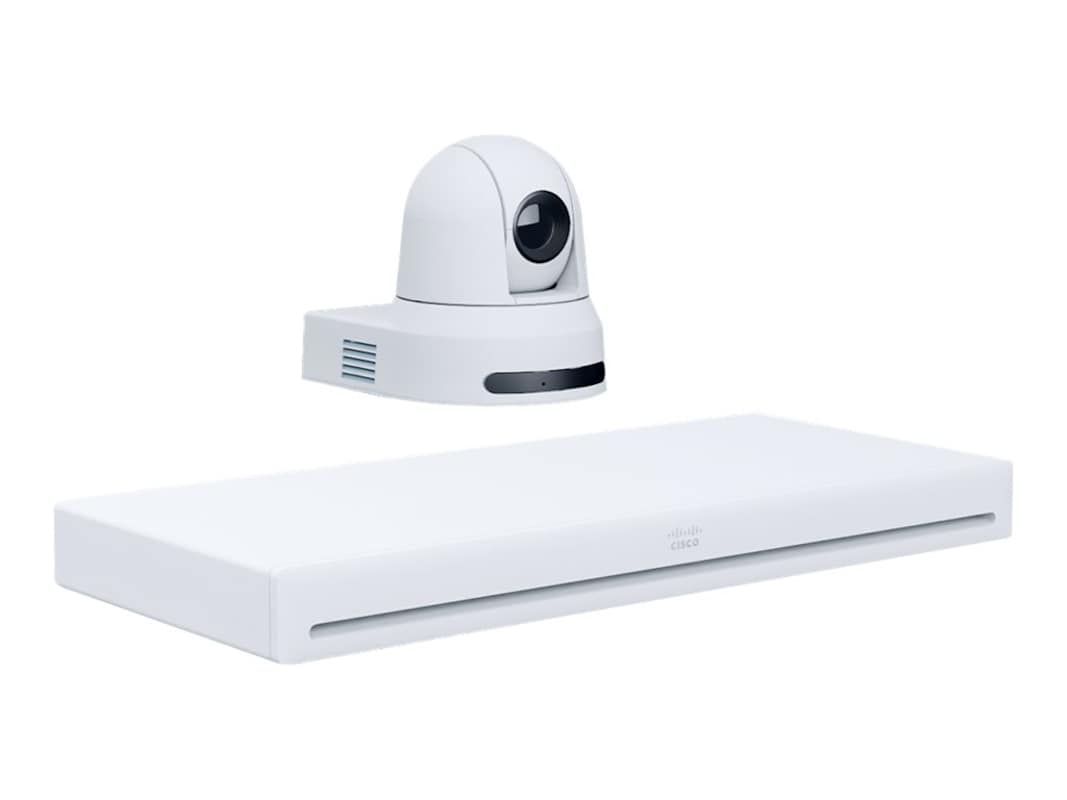

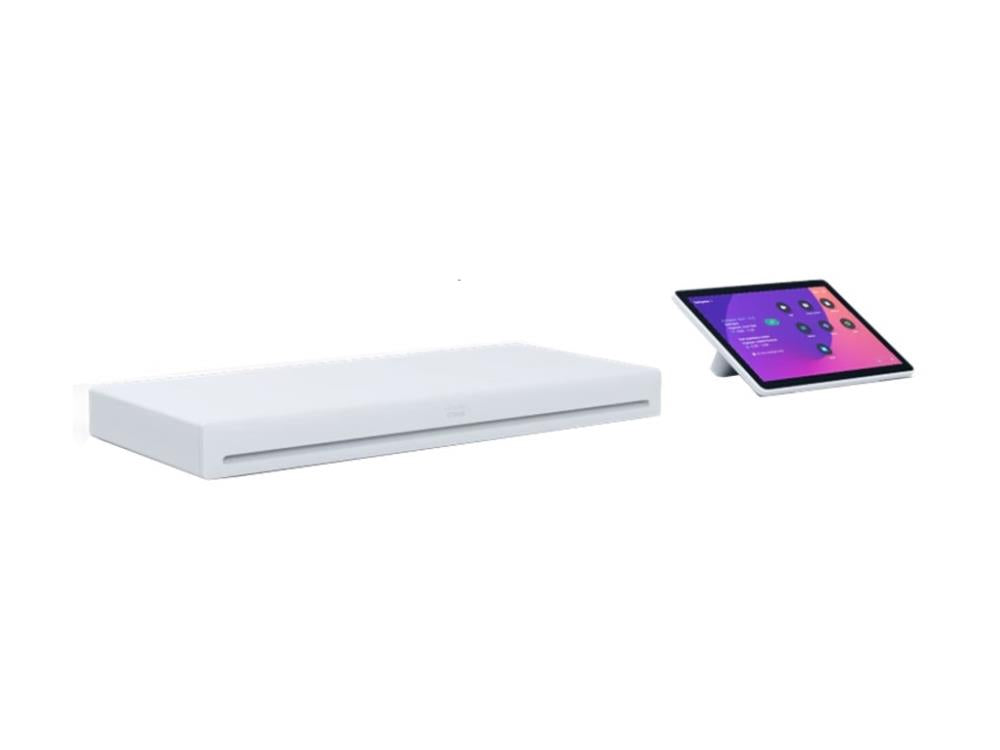

Cisco Room Kit EQ with PTZ 4K Camera, TAA Compliant

VENDOR: CISCO Mfg Part#: CS-KIT-EQ-4K-K9++
1 2
Photo is for illustration purposes only. Actual product may be different.
$15,342.24
$15,342.24
Sale Sold out
MSRP: $22,501.95
Shipping calculated at checkout.
  • PTZ 4K camera with 240x total zoom (20x optical, 12x digital)
  • Supports 3840 x 2160 resolution at 60 fps across up to three displays
  • Multiple audio codecs: G.711, G.722, G.729 for optimized sound quality
  • Compatible with SIP and H.323 digital signaling protocols
  • Connectivity via HDMI, USB, RJ-45, and wireless
  • Efficient video compression with H.264, H.263, and H.265 HEV

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance ensures eligibility for government and public-sector procurement.
  • 4K video with triple monitor support provides immersive conferencing for large meeting rooms.
  • Wide compatibility and flexible connectivity simplify integration into existing infrastructures.

Product Overview

The Cisco Room Kit EQ with PTZ 4K Camera is a high-performance video collaboration system designed for modern enterprises. With 3840 x 2160 UHD resolution across up to three displays and a PTZ camera offering 240x total zoom, it ensures clear visuals and expansive coverage. The system features comprehensive connectivity via HDMI, USB, RJ-45, and wireless options. Advanced video and voice codecs such as H.264, H.265, G.722, and SIP enable seamless communication, while bandwidth efficiency sustains performance at lower bitrates. TAA compliance and a 90-day limited warranty make it ideal for government and enterprise deployments.

Specifications

Product Overview
Product Type Room Kit
Form Factor Integrated codec and PTZ camera system
Weight 4.79 kg (codec only)
Power Requirements 100-240V AC, 50/60Hz
Included Components Codec EQ, PTZ 4K Camera, mounting hardware, cables

Wireless Features
Wireless Connectivity Yes
Wi-Fi Standards Supported 802.11a/b/g/n/ac (via supported modules)
Bluetooth Bluetooth 4.0 LE

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Regulatory Compliance UL 60950-1, EN 60950-1, IEC 60950-1
EMC Certifications FCC Part 15B Class A, CE Mark, ICES-003
Environment Certification RoHS, WEEE

Advanced Security Features
Signaling Encryption TLS 1.2, SRTP
Network Authentication 802.1X
Content Encryption AES-128, AES-256

Interfaces
Video Outputs 3x HDMI (up to 3840 x 2160 @ 60 fps)
Audio Outputs HDMI, USB, RJ-45, Line-out
Audio Input Microphone array (external, supported via RJ-45)
Touchscreen Input Support Yes
USB Ports 2x USB 3.0 Type-A
Ethernet Ports 1x RJ-45 (Gigabit Ethernet)
Maximum Data Transfer Rate 1 Gbps

Physical & Environmental
Width 18.6 in
Depth 8 in
Height 1.7 in
Operating Temperature Range 0°C to 35°C (32°F to 95°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Humidity 10% to 90% (non-condensing)
Cooling Fanless passive cooling

Cloud Management & Licensing
Management Interface Cisco Webex Control Hub
Cloud Compatibility Webex RoomOS
Licensing Requirements Webex Room subscription required
Remote Management Yes, via Webex Control Hub

Video & Audio Capabilities

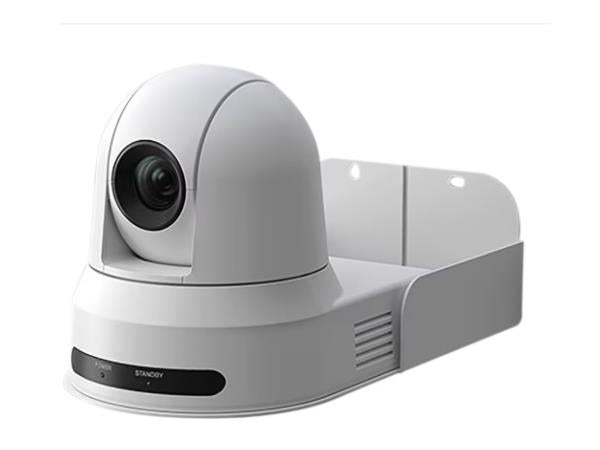

Camera Type PTZ 4K Camera
Camera Zoom 240x total (20x optical, 12x digital)
Max Video Resolution 3840 x 2160 (UHD 4K)
Supported Video Codecs H.263, H.264, H.265 HEVC
Supported Audio Codecs G.711, G.722, G.729
Digital Signaling Protocols SIP, H.323
Bandwidth for 1080p60 2560 Kbps
Bandwidth for 720p60 1152 Kbps
