Cisco Secure Firewall 3100 6x25G FTW Netmod, LR-Singlemode

VENDOR: CISCO Mfg Part#: FPR3K-XNM-6X25LRF
1 3

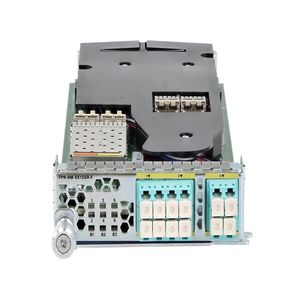

Photo is for illustration purposes only. Actual product may be different.
$32,256.39
$32,256.39
Sale Sold out
MSRP: $47,309.37
Shipping calculated at checkout.
  • Six 25Gb Ethernet SFP28 ports for high-throughput connectivity
  • Built-in hardware bypass ensures network uptime during failures
  • 25 Gbps data transfer rate per port for performance-intensive applications
  • Supports long-range 25GBase-LR optical interface via SFP (mini-GBIC)
  • Plug-in module form factor for seamless hardware integration
  • TAA compliant and covered by a 90-day limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for seamless integration with Cisco FirePOWER systems in enterprise environments
  • High-speed 25GbE ports and long-range support deliver data center-grade performance
  • Built-in bypass functionality ensures business continuity during system faults

Product Overview

The Cisco Secure Firewall 3100 6x25G FTW Netmod, LR-Singlemode is a plug-in network adapter designed for enterprise-level networking and seamless integration with Cisco FirePOWER solutions. Featuring six 25GbE SFP28 ports with LR optics support, it provides high-speed, long-range connectivity. The module includes built-in hardware bypass for fault tolerance and 25 Gbps per port data throughput. Its TAA compliance makes it suitable for regulated industries, and the compact form factor allows for easy deployment in existing infrastructure.

Specifications

Product Overview
Product Type Network Adapter
Form Factor Plug-in module
Device Type Cisco FirePOWER Network Adapter
Family Cisco Secure Firewall 3100 Series
Model Name Secure Firewall 3100 6x25G FTW Netmod, LR-Singlemode
Manufacturer Part Number FPR3K-XNM-6X25LRF
Power Consumption Typical 25W
Compatibility Cisco Secure Firewall 3100 Series Platforms

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards FCC Part 15 Class A, UL/CSA 60950-1, RoHS
Certifications CE, UL, CSA, VCCI, BSMI

Advanced Security Features
Firewall Integration Designed for Cisco Secure Firewalls
Malware Protection Support Yes (Requires Cisco Secure Malware Analytics)
Intrusion Prevention System (IPS) Supported via Secure Firewall OS
Content Filtering Supports Cisco Secure Web Appliance Integration
Network Threat Protection Supports with Secure IPS

Interfaces
Interface Type SFP28
Number of Ports 6
Port Type 25GBase-LR
Data Link Protocol 25 Gigabit Ethernet
Data Transfer Rate per Port 25 Gbps
Total Aggregate Throughput 150 Gbps
Connectivity Technology Wired
Hardware Bypass Support Yes (Built-in)

Physical & Environmental
Dimensions (H x W x D) 1.2 x 6.8 x 8.9 inches (approximate)
Weight 0.64 kg (1.41 lb)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 149°F (-20°C to 65°C)
Operating Humidity 5% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Managed via Cisco SecureX and Cisco Defense Orchestrator
License Type Requires Cisco Security Subscription License
Included Cloud Features Integration with Cisco Threat Intelligence, Dashboard Monitoring
