Cisco Secure Firewall 3140 Appliance, 1RU Spare, SSD, No Pwr/Fan

VENDOR: CISCO Mfg Part#: FPR3140-K9=
1 2
Photo is for illustration purposes only. Actual product may be different.
$38,297.35
$38,297.35
Sale Sold out
MSRP: $115,575.00
Shipping calculated at checkout.
  • Firewall throughput up to 49 Gbps
  • IPS throughput up to 45 Gbps
  • Supports 10 million concurrent sessions and 1.1 million new sessions per second
  • Includes 8 x RJ-45 and 8 x SFP Ethernet interfaces
  • 900 GB integrated SSD storage
  • 1U rack-mountable chassis with HTTP remote management

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High throughput design ensures strong performance under heavy network traffic.
  • Spare unit flexibility allows easy integration into existing security infrastructure.
  • Complies with TAA regulations, ideal for government and regulated industry deployments.

Product Overview

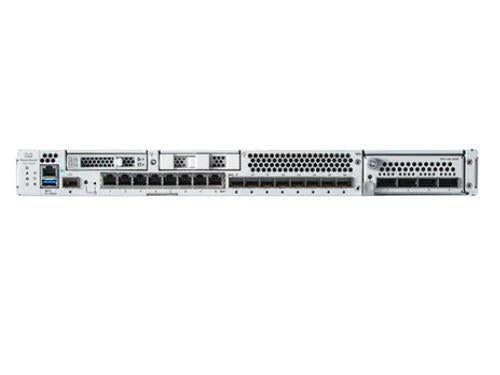

The Cisco Secure Firewall 3140 appliance offers 49 Gbps firewall throughput and 45 Gbps IPS performance in a 1U rack-mountable form factor. It includes a 900 GB SSD and supports 10 million concurrent sessions with 1.1 million new sessions/sec. The front panel features 8 x RJ-45 Ethernet ports, 8 x SFP ports, and versatile management options including RJ-45 console and USB 3.0. Designed for scalability in enterprise environments, this TAA-compliant spare unit omits power and fan modules, which must be procured separately.

Specifications

Product Overview
Product Type Firewall
Model FIREWALL 3140
Form Factor 1U
Rack Height 1U
Type Network Security Appliance
Weight 32.92 lbs (14.93 kg)
Power Requirements 100-240V AC, 50/60 Hz (PSUs sold separately)
Power Supply Included No (Spare unit; power module required)
Fan Module Included No (Fan module required)
Storage Capacity 900 GB SSD

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Certifications UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, RoHS, REACH
Safety Standards EN 60950-1, IEC 62368-1
Emissions Standards FCC Part 15 Class A, EN55032 Class A

Advanced Security Features
Firewall Throughput 49 Gbps
IPS Throughput 45 Gbps
Concurrent Sessions 10 million
New Sessions Per Second 1,100,000
Threat Defense Cisco Secure Threat Defense (FTD)
Intrusion Prevention System (IPS) Yes
Malware Protection Cisco Advanced Malware Protection (AMP)
URL Filtering Reputation- and category-based URL filtering
Site-to-Site VPN Yes (IPSec)
Remote Access VPN Yes (SSL and IPsec support)
High Availability Active/Standby and Active/Active support

Interfaces
Ethernet Ports 8 x RJ-45
SFP Ports 8 x SFP
Console Ports 1 x RJ-45 console, 1 x USB mini-B (console)
USB Ports 1 x USB 3.0 Type A
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Remote Management Protocol HTTP
Networking / Ports Qty 19

Physical & Environmental
Width 17 inch (43.18 cm)
Depth 20 inch (50.8 cm)
Height 1.75 inch (4.45 cm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
MTBF 487,590 hours (calculated with standard configuration)

Cloud Management & Licensing
Management Interface Cisco Firepower Management Center (FMC), Cisco Defense Orchestrator (CDO)
Cloud-delivered Features Cisco SecureX integration, automated policy management
License Type Subscription (sold separately)
Security Services Licensing Threat, Malware, URL Filtering, IPS (licensed separately)
