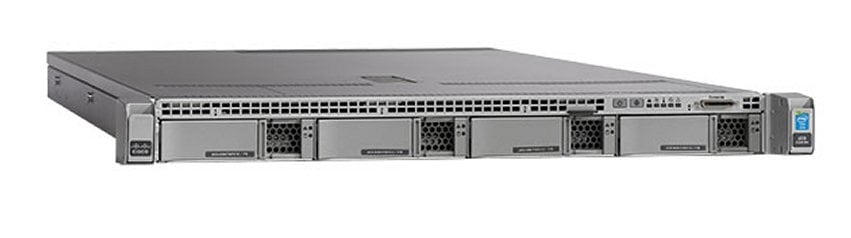

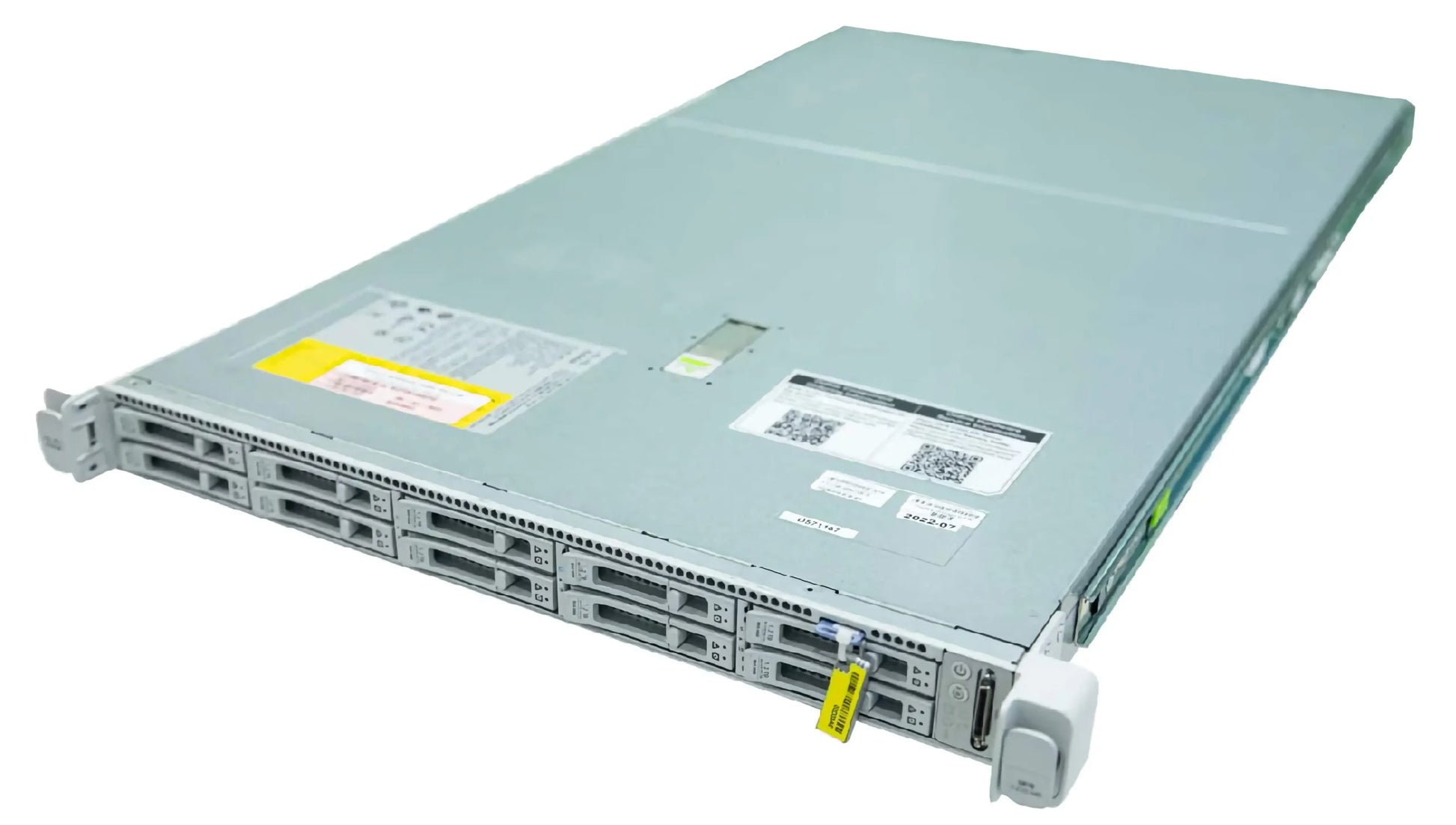

Cisco Secure Firewall Management Center 2700 Chassis

VENDOR: CISCO Mfg Part#: FMC2700-K9
1 3
Photo is for illustration purposes only. Actual product may be different.
$59,655.43
$59,655.43
Sale Sold out
MSRP: $87,494.63
Shipping calculated at checkout.
  • 1 x AMD EPYC 7282 2.8 GHz processor for high-performance operations
  • 64 GB DDR4 SDRAM for efficient multi-sensor management
  • 4 x 600 GB SAS HDDs + 2 x 240 GB SSDs with RAID 5 support for resilient storage
  • Supports up to 300 managed sensors and 60 million IPS events
  • Multiple network interfaces including 10G SFP+, 1G RJ-45, USB 3.0, and VGA
  • Redundant 1050W hot-plug power supplies with front-to-back airflow design

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports centralized management of up to 300 sensors and 60 million IPS events, ideal for large-scale enterprises
  • Hot-swappable RAID 5 storage with both SSD and SAS options enhances uptime and data reliability
  • Built-in secure features such as TPM 2.0, RBAC, and secure boot offer strong compliance and security assurances

Product Overview

The Cisco Secure Firewall Management Center 2700 Chassis is a robust and scalable network management solution designed to centralize and streamline firewall and intrusion prevention operations. Built around a powerful AMD EPYC 7282 2.8 GHz processor with 64 GB DDR4 SDRAM, it provides the horsepower to manage up to 300 sensors and process up to 60 million IPS events. The chassis supports front-to-back airflow and is rack-mountable in a 1U form factor. Storage configuration includes four 600 GB 2.5-inch SAS 12Gb/s hot-swappable HDDs and two 240 GB M.2 SSDs, delivering a total storage pool of 2.28 TB. Integrated RAID 5 support ensures redundancy and data integrity. The system includes high-availability features, Role-Based Access Control (RBAC), secure boot, TPM 2.0, and network discovery for centralized visibility. Connectivity includes dual 10G SFP+, dual 1G RJ-45, USB 3.0, and VGA ports. Remote management is enabled via SNMP and Syslog. Redundant power supplies and 1050W capacity ensure uptime. This solution ships with Cisco Firepower Management Center Software v7.4.0 and meets TAA compliance standards.

Specifications

Product Overview
Product Type Network management appliance
Form Factor Rack-mountable
Rack Units 1U
Processor AMD EPYC 7282 2.8 GHz
Number of Processors 1
Memory Installed 64 GB DDR4 SDRAM
Hard Drive Type SAS 12Gb/s HDD (hot-swappable)
Hard Drive Capacity 4 x 600 GB (2.5")
SSD Storage 2 x 240 GB M.2 SSD
Storage Total 2.28 TB
RAID Support RAID 5
Power Requirements AC 100-240 V (50/60 Hz)
Power Supply Wattage 1050 W
Redundant Power Supplies Yes
Weight 37.04 lbs

Physical & Environmental
Width 16.9 in
Depth 30 in
Height 1.7 in
Airflow Direction Front-to-back
Minimum Operating Temperature 50 °F
Maximum Operating Temperature 95 °F

Cloud Management & Licensing
Management Software Cisco Firepower Management Center Software v7.4.0
Device Capacity - Sensors Up to 300 sensors managed
Event Capacity Up to 60 million IPS events
Event Storage Capacity 1.8 TB
Network Map Capacity (Hosts) 150,000
Network Map Capacity (Users) 150,000
Max Events per Second 12,000
RBAC Support Yes

Interfaces
10G SFP+ Ports 2
1G RJ-45 Ports 2
USB 3.0 Ports 2 x Type-A
VGA Port 1 x DB-15
Data Link Protocols Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocols SNMP, Syslog

Compliance & Origin
Country of Origin United States
TAA Compliant Yes

Advanced Security Features
High Availability Support Yes
Trusted Platform Module TPM 2.0
Secure Boot Yes
Network Discovery Yes
