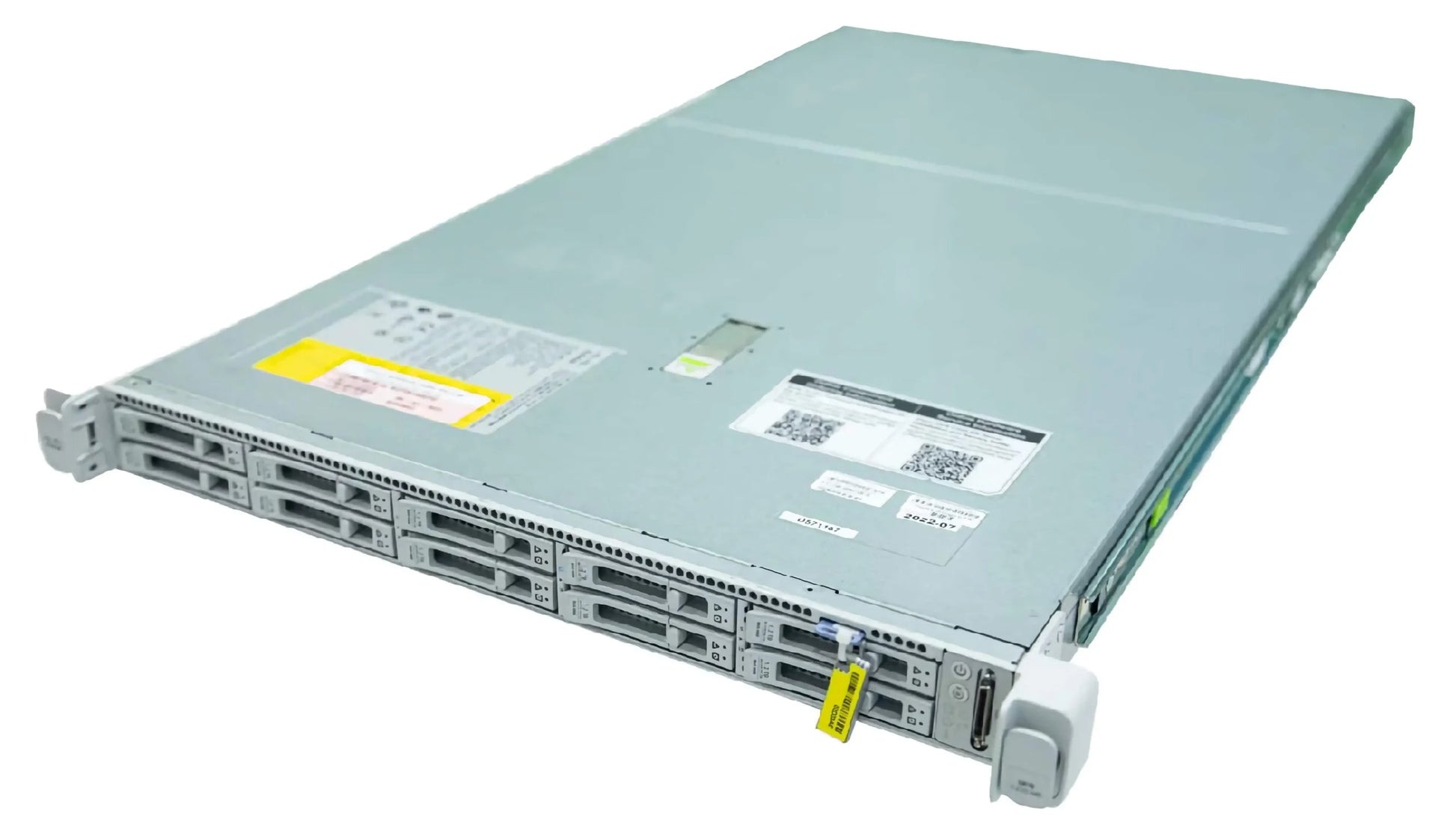

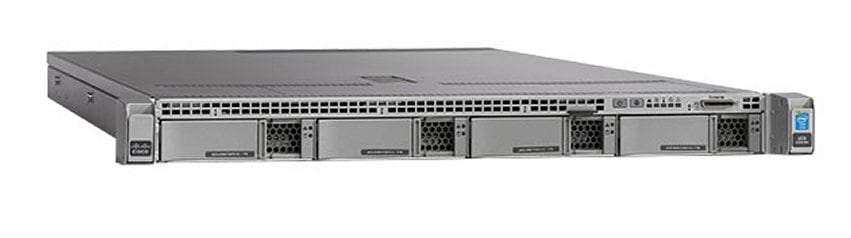

Cisco Secure Firewall Management Center 4700 Chassis

VENDOR: CISCO Mfg Part#: FMC4700-K9
1 3
Photo is for illustration purposes only. Actual product may be different.
$136,917.55
$136,917.55
Sale Sold out
MSRP: $200,812.39
Shipping calculated at checkout.
  • 1 x AMD EPYC 7352 2.3 GHz processor with 128 GB DDR4 SDRAM for high performance
  • Ten hot-swappable 1.2 TB SAS 12Gb/s drives and dual 240 GB M.2 SSDs in RAID 6 for fault-tolerant storage
  • Supports up to 1,000 managed sensors and 400 million IPS events for broad network visibility
  • Multiple high-speed interfaces: 2 x 25GBase-X, 2 x 10GBase-T, USB 3.0, and VGA
  • Redundant internal 1050W hot-plug power supplies for operational reliability
  • Advanced features: secure boot, TPM 2.0, role-based access control, SNMP support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Centralized management with support for up to 1,000 sensors drastically streamlines security administration across large-scale networks
  • RAID 6-based hot-swappable storage with 3.2 TB capacity provides robust event logging and fast forensic analysis capabilities
  • Built-in high availability and hardware-based security features like TPM and secure boot enhance resilience and compliance standards

Product Overview

The Cisco Secure Firewall Management Center 4700 Chassis is a rack-mountable 1U appliance designed for scalable and centralized firewall management. Featuring an AMD EPYC 7352 2.3 GHz processor and 128 GB DDR4 RAM, it delivers performance essential for demanding network environments. Its storage system includes 10 hot-swappable 1.2 TB SAS drives and two 240 GB M.2 SSDs, configured in RAID 6 for high availability and data protection.

With redundant 1050W power supplies, secure boot, and TPM 2.0, the system emphasizes operational continuity and security compliance. It supports extensive network metrics, including up to 1,000 managed sensors and 400 million IPS event logs. Connectivity is versatile with 25GBase-X, 10GBase-T, USB 3.0, and VGA ports. Perfect for use in enterprise and TAA-compliant settings, this management center maximizes threat awareness and minimizes response times.

Specifications

Product Overview
Product Type Network management device
Form Factor Rack-mountable - 1U
Airflow Direction Front to back airflow
Processor 1 x AMD EPYC 7352 - 2.3 GHz
RAM 128 GB DDR4 SDRAM
Primary Storage 10 x 1.2 TB 2.5" SAS 12Gb/s HDD (hot-swappable)
Secondary Storage 2 x 240 GB M.2 SSD
RAID Level RAID 6
Power Supply Type Hot-plug, internal power supply
Power Redundancy Yes
Power Provided 1050 Watt
Voltage Required AC 100-240 V
Software Included Cisco Firepower Management Center Software v7.4.0
Warranty 90-day limited warranty with advance parts replacement

Cloud Management & Licensing
Management Software Cisco Firepower Management Center
Management Version v7.4.0
Supported Managed Sensors Up to 1,000 sensors
Event Log Capacity Up to 400 million IPS events
Network Map Size (hosts) 600,000
Network Map Size (users) 600,000
Maximum Events per Second 30,000

Physical & Environmental
Dimensions (W x D x H) 16.9 in x 30 in x 1.7 in
Rack Units 1U
Weight 37.04 lbs
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F

Interfaces
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
25Gb Ethernet Ports 2 x 25GBase-X (SFP28)
10Gb Ethernet Ports 2 x 10GBase-T (RJ-45)
USB Ports 2 x USB 3.0 Type A
Video Output 1 x VGA (DB-15)
Remote Management Protocols SNMP, Syslog

Advanced Security Features
Hardware Security Trusted Platform Module (TPM) 2.0
System Security Secure boot
Access Control Role-Based Access Control (RBAC)
Other Security Features High Availability, Network Discovery

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
