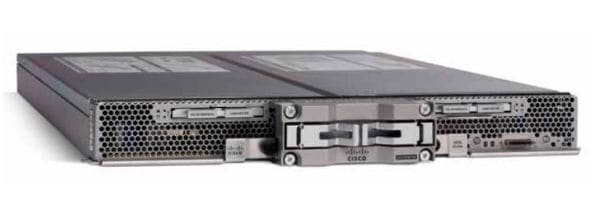

Cisco UCS B480 M5 Blade Server Barebone, 4-Socket, DDR4, Xeon-Ready

VENDOR: CISCO Mfg Part#: UCSB-B480-M5-U UPC#: 889728014205
1 2
Photo is for illustration purposes only. Actual product may be different.
$6,675.54
$6,675.54
Sale Sold out
MSRP: $12,072.49
Shipping calculated at checkout.
  • Supports up to 4 Intel Xeon Scalable processors for high-performance compute power
  • 48 total memory slots supporting DDR4-2666/PC4-21300, up to 6TB RAM capacity
  • 12Gb/s SAS controller with 4 internal 2.5" bays for high-speed storage expansion
  • Integrated Gigabit Ethernet and RAID support for network and data redundancy
  • Matrox G200e graphics controller with 16MB memory for base video output
  • Central management via Cisco UCS Manager with Single Connect Technology

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for high-performance virtualization and database workloads with multi-CPU scalability
  • Supports large memory configurations without impact on CPU speed or core count—ideal for memory-intensive applications
  • Part of Cisco UCS ecosystem, allowing centralized management of up to 160 servers and streamlined deployment

Product Overview

The Cisco UCS B480 M5 Blade Server is a high-performance barebone system optimized for virtualization and database workloads. It supports up to four Intel Xeon Scalable processors and 48 DDR4 memory slots, delivering scalable compute and memory capabilities. Featuring Gigabit Ethernet, RAID support, and 12Gb/s SAS storage connectivity, it offers flexible infrastructure expansion. With centralized management via Cisco UCS Manager and compatibility within the UCS 5108 Blade Server Chassis, it ensures streamlined deployment and lifecycle control. Designed for IT environments needing compute density and control, the B480 M5 Blade provides a robust platform for enterprise applications.

Specifications

Product Overview
Product Type Barebone System
Form Factor Blade
Product Name UCS B480 M5 Barebone System
Product Series B480 M5
Brand Name Cisco
Manufacturer Cisco Systems, Inc
Manufacturer Part Number UCSB-B480-M5-U
UPC 889728014205
Number of Processors Supported 4
Processor Supported Intel Xeon Scalable
Chipset Manufacturer Intel
Chipset Model C620
64-bit Processing Yes
Weight (Approximate) 15.10 lbs
Power Requirements Supplied by UCS 5108 Blade Server Chassis

Memory
Number of Total Memory Slots 48
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Maximum Memory Supported Up to 6 TB

Physical & Environmental
Height 2"
Width 16.50" (419.10 mm)
Depth 24.4"

Cloud Management & Licensing
Management Interface Cisco UCS Manager (UCSM)
Management Features Single Connect Technology; Consolidated network, storage & management traffic
Supported UCS Manager Scale Up to 160 servers per domain
Extended Management Cisco UCS Central for global multi-domain management

Interfaces
Ethernet Technology Gigabit Ethernet
Controller Type 12Gb/s SAS
RAID Supported Yes
Expansion Slot Type Mezzanine card slot
Supported I/O Bandwidth Up to 160 Gb aggregate I/O (with UCS VIC)
Number of Internal 2.5" Bays 4
Number of Total Expansion Bays 4

Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity 16 MB

Compliance & Origin
Country of Origin China / United States
TAA Compliance Yes

Advanced Security Features
Secure Boot Supported
Trusted Platform Module (TPM) TPM 2.0 (optional)
