CISCO UCS C240 M7 Rack Server, 2U, 24-NVMe Backplane, No CPU/Drives/Mem

VENDOR: CISCO Mfg Part#: UCSC-C240-M7SN
1 2
Photo is for illustration purposes only. Actual product may be different.
$4,480.27
$4,480.27
Sale Sold out
MSRP: $6,571.07
Shipping calculated at checkout.
  • 2U rackmount server chassis with 24 NVMe drive backplane
  • Ships without CPU, memory, or drives for full customization
  • Matrox G200e integrated graphics controller included
  • Gigabit Ethernet connectivity for network deployment
  • TAA-compliant design for government and regulated sectors
  • Manufactured in China and the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers flexible configuration by shipping without CPU, drives, or memory, allowing tailored builds.
  • TAA-compliant construction supports secure deployment in government and regulated environments.
  • Equipped with a high-performance 24 NVMe backplane, ideal for flash storage and high-IO workloads.

Product Overview

The CISCO UCS C240 M7 Rack Server (model UCSC-C240-M7SN) is a 2U enterprise-class server chassis tailored for deployment in performance-critical environments. Featuring a 24 NVMe backplane, it is ideal for flash-based storage configurations and data-intensive workloads. This unit is delivered without CPU, memory, or drives, allowing users to custom-configure components as needed for targeted applications. With TAA compliance and a manufacturing footprint across China and the United States, it also accommodates regulated industry requirements. A built-in Matrox G200e GPU and Gigabit Ethernet support are included to streamline server deployment and management.

Specifications

Product Overview
Product Type Rack Server
Model UCS C240 M7
Chassis Form Factor 2U
Server Series Cisco UCS C-Series
Processor Support Up to 2x 3rd Gen Intel Xeon Scalable Processors
Maximum Memory Capacity 8 TB
Memory Type DDR4-3200/2933 DIMMs or Intel Optane Persistent Memory 200 Series
Drive Bays 24 x 2.5-Inch NVMe Hot-Swap
GPU Support Up to 2 x Single-width GPUs or 1 x Double-width GPU
Graphics Integrated Matrox G200e
Power Supply Options Dual Redundant Hot-Swappable 1600W or 1050W Power Supplies
Hot-Swap Capability Yes
Tool-less Access Yes
Weight (Maximum) 39.46 kg (87.01 lbs)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin CHINA / UNITED STATES
TAA Compliant Yes
Certifications FCC Class A, UL, CE Mark, RoHS, VCCI, BSMI, ICES, KC Mark

Advanced Security Features
Secure Boot Yes
TPM Support Trusted Platform Module 2.0 (optional)
System Lockdown Yes (via CIMC)
Firmware Security Signed firmware and secure firmware updates
Chassis Intrusion Detection Yes

Interfaces
LAN Ports 2 x 10/100/1000BASE-T (dedicated management and LOM via mezzanine)

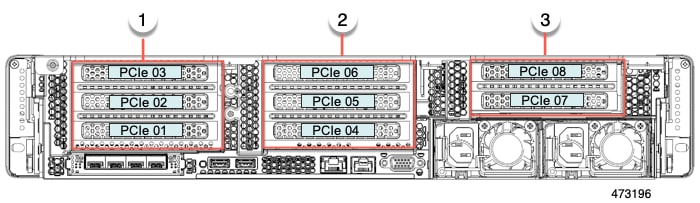

Expansion Slots 8 x PCIe Gen4 Slots (6 x full-height, 2 x rear mezzanine)
Storage Controller Options Embedded Software RAID (SATA only), Cisco 12G SAS RAID or HBA controllers
Internal USB 1 x USB 3.0 Type A
Rear USB 2 x USB 3.0
Video Ports 1 x VGA
Serial Port 1 x RJ-45
LOM (LAN on Motherboard) Cisco VIC Modular LAN on Motherboard Slot
Networking Options Support for Cisco VIC 1400 Series Modular LOMs

Physical & Environmental
Dimensions (H x W x D) 3.4 x 17.2 x 31.0 in (86.36 x 437.88 x 787.4 mm)
Operating Temperature 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90%, non-condensing
Non-Operating Humidity 5% to 93%, non-condensing

Cloud Management & Licensing
Management Interface Cisco Integrated Management Controller (CIMC)
Remote Management Redfish, HTML5, IPMI 2.0, vKVM, Virtual Media
Cisco Intersight Support Yes (licensing required)
Management Software Compatibility Cisco UCS Manager, Cisco IMC Supervisor
Licensing Options Cisco Smart Licensing
