Cisco UCS Fabric Interconnect 6454 - 54-Port 100GbE Managed Switch

VENDOR: CISCO Mfg Part#: UCS-FI-6454
1 1

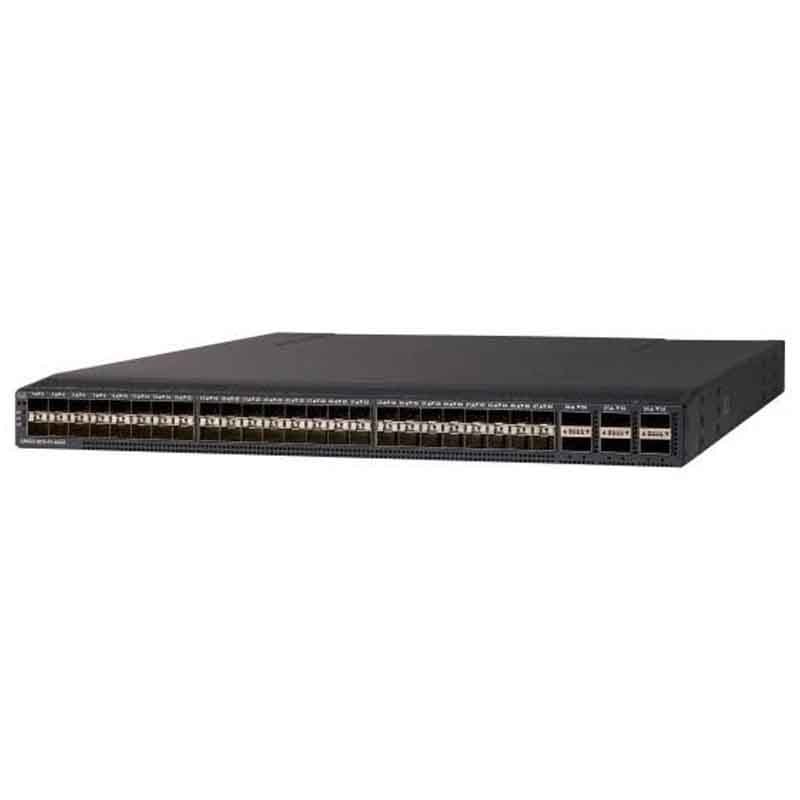

Photo is for illustration purposes only. Actual product may be different.
$26,757.89
$26,757.89
Sale Sold out
MSRP: $48,390.75
Shipping calculated at checkout.
  • 54 fully managed ports including 36 x 10/25Gb SFP28, 4 x 1/10/25Gb SFP28, 6 x 40/100Gb QSFP28, and 8 unified Fibre Channel/Ethernet ports
  • Switching capacity of 3.82 Tbps and Layer 2 forwarding rate of 4.2 billion bpps
  • Supports up to 32,000 MAC addresses and 4,000 VLANs
  • 64 GB DRAM and 6-core CPU for high control plane performance
  • Advanced feature support: FCoE, DCBX, QoS, LACP, Rapid PVST+, WRR, jumbo frames

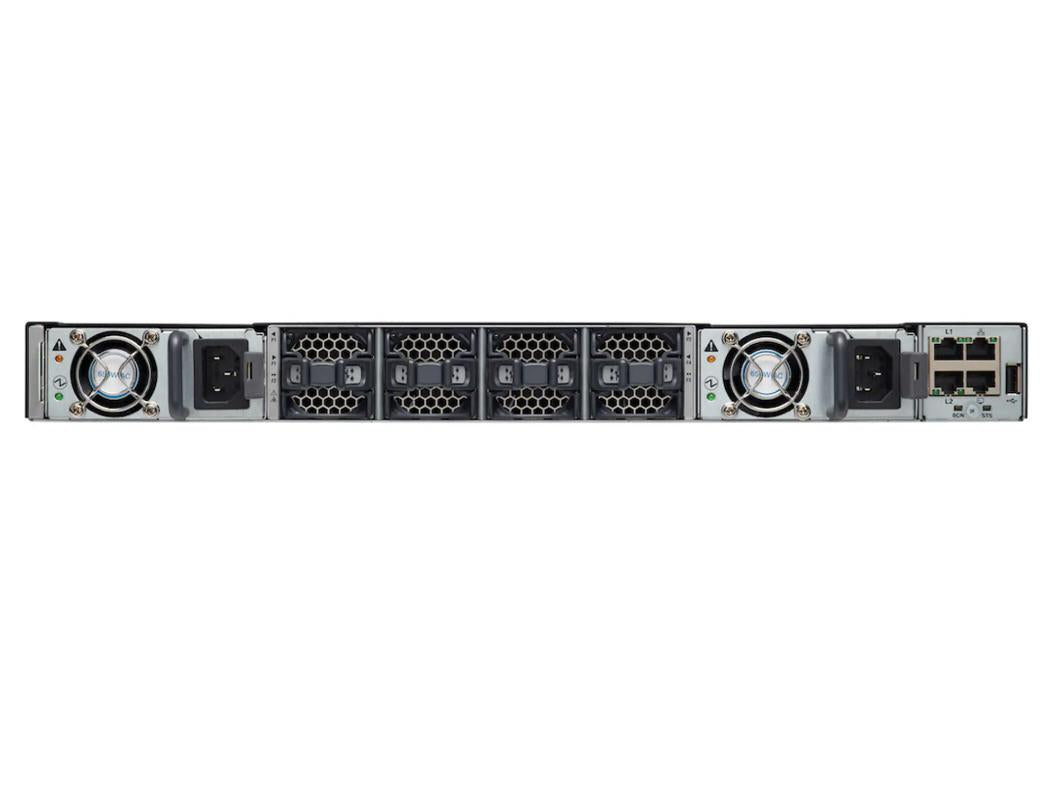

  • Hot-pluggable design with optional 1+1 power redundancy and 2+2 fan module setup

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports ultra-high bandwidth and port flexibility with 54 managed ports including 100GbE uplinks and unified FC/Ethernet
  • Enterprise-ready switching capacity of 3.82 Tbps paired with advanced traffic management ensures high-performance networking
  • Redundant hardware-ready with hot-plug power and fans, plus 64 GB RAM and enterprise-certified compliance for dependable deployment

Product Overview

The Cisco UCS Fabric Interconnect 6454 is a 1U rack-mountable managed switch supporting up to 54 ports with both Ethernet and Fibre Channel connectivity. Delivering 3.82 Tbps switching capacity and 32000 MAC address support, it is optimized for high-density environments. The switch supports up to 4000 VLANs, features advanced traffic management protocols including QoS, Rapid PVST+, and multicast handling via IGMPv2/v3. It integrates 64 GB RAM, a 6-core CPU, and supports jumbo frames (9216 bytes) for improved throughput. Optional 1+1 power redundancy and modular airflow complete its enterprise-grade design.

Specifications

Product Overview
Product Type Managed Switch
Model Cisco UCS Fabric Interconnect 6454
Form Factor 1U rack-mountable
Switching Capacity 3.82 Tbps
Forwarding Rate 4.2 billion packets per second
Performance Bandwidth 320 Gbps
Maximum MAC Address Entries 32000
Maximum VLANs Supported 4000
Queues per Port 16
Jumbo Frame Support 9216 bytes
RAM 64 GB
CPU 6-core processor
Redundant Power Supply Support Yes, 1+1 redundancy optional
Included Accessories Chassis accessory kit

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Brazil / China / United States
TAA Compliant Yes
Certifications UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FCC Part 15 A, ICES-003 Class A, EN 55022 Class A, VCCI Class A
Compliant Standards IEEE 802.3, 802.1Q, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.3ae, 802.1s, 802.1Qbb, 802.1Qaz, 802.3bm, 802.3by, 802.3bg

Advanced Security Features
QoS Support Yes
Protocol Support Rapid PVST+, LACP, IGMPv2/v3
Traffic Prioritization Weighted Round Robin (WRR)
Data Center Bridging Extensions (DCBX) Yes
Priority Flow Control (PFC) Yes
Fibre Channel over Ethernet (FCoE) Yes

Interfaces
Total Ports 54

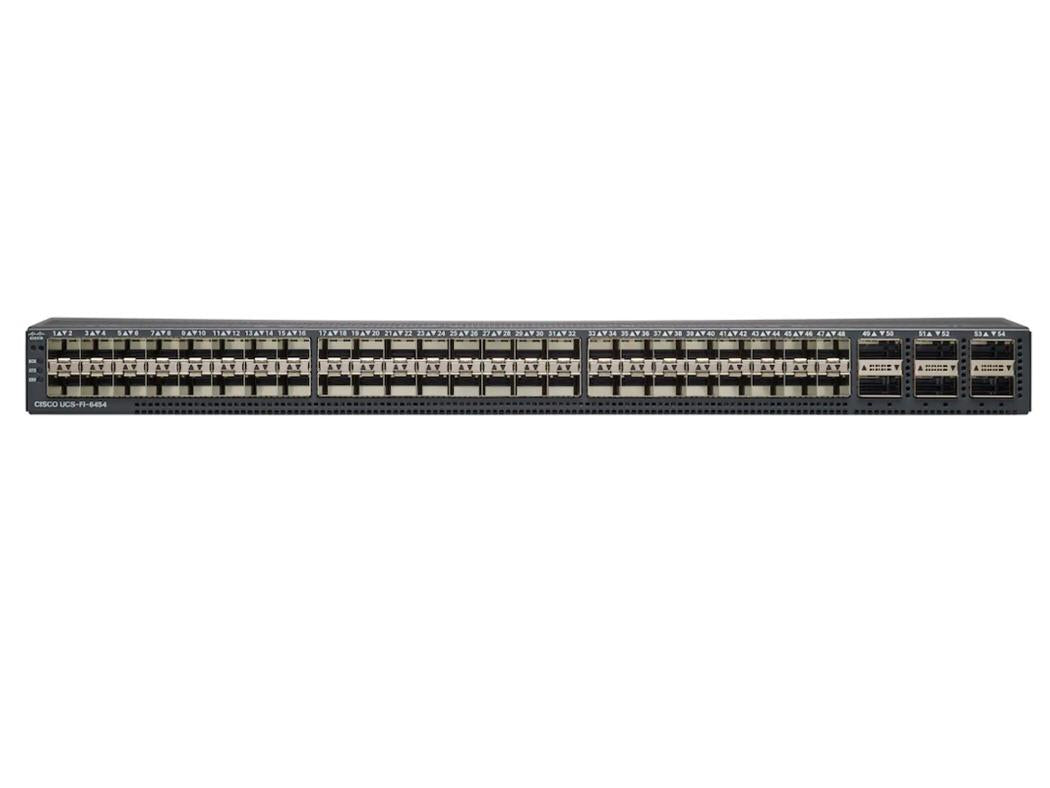

Port Configuration 36 x 10/25Gb SFP28, 4 x 1/10/25Gb SFP28, 6 x 40/100Gb QSFP28 (uplink), 8 x 10/25Gb Ethernet or 8/16/32Gb Fibre Channel
Interface Types SFP28, QSFP28, RJ-45, USB
Management Ports 1 x 10/100/1000Base-T RJ-45, 1 x USB
Fibre Channel Support 8/16/32 Gbps
Data Transfer Rate Up to 100 Gbps per QSFP28 port

Physical & Environmental
Dimensions (W x D x H) 17.3 in x 22.5 in x 1.7 in
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Min Operating Temperature 32 °F (0 °C)
Max Operating Temperature 104 °F (40 °C)
Operating Humidity Range 5% - 95% (non-condensing)
Min Storage Temperature -40 °F (-40 °C)
Max Storage Temperature 158 °F (70 °C)
Storage Humidity Range 5% - 95% (non-condensing)
Cooling Front-to-back airflow with 2+2 fan modules

Cloud Management & Licensing
Remote Management Protocol RMON
Cloud Managed
Licensing Model Cisco UCS licensing (sold separately)

Service & Warranty
Limited Warranty 3 years
Warranty Details Replacement - next business day response time
