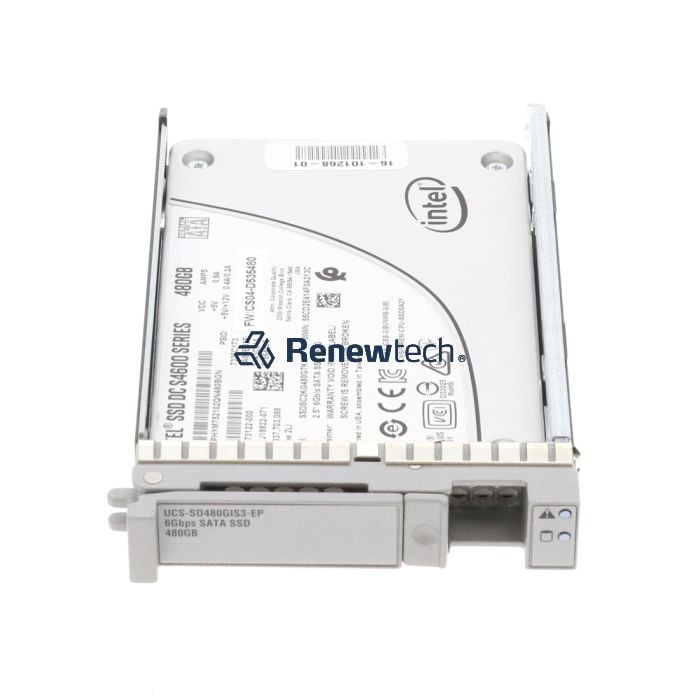

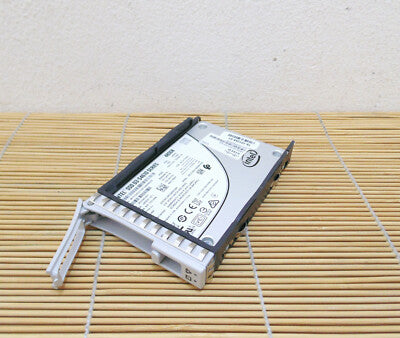

Cisco UCS-SD480GBI6-EP= 480GB 2.5in SATA Enterprise SSD

VENDOR: CISCO Mfg Part#: UCS-SD480GBI6-EP=
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,451.70
$2,451.70
Sale Sold out
MSRP: $4,433.82
Shipping calculated at checkout.
  • 480GB storage capacity with 2.5-inch form factor
  • SATA 6Gb/s interface delivering 600 MBps data transfer rate
  • 3 drive writes per day (DWPD) endurance rating for enterprise workloads
  • Hot-swap capability for easy deployment and maintenance
  • Designed for compatibility with Cisco UCS servers including UCSB-5108 and UCSB-B200-M6
  • 3-year limited manufacturer warranty with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for high-end Cisco UCS platforms, ensuring seamless hardware compatibility and performance.
  • Enterprise endurance of 3 DWPD supports demanding workloads such as databases and virtualization.
  • Hot-swap design reduces downtime and enables efficient, uninterrupted operations in production environments.

Product Overview

The Cisco UCS-SD480GBI6-EP= is an enterprise-grade SSD featuring 480GB capacity and a 2.5-inch hot-swap form factor. Built with a SATA 6Gb/s interface and capable of up to 600 MBps transfer rate, it ensures optimal performance. Its 3 DWPD endurance rating makes it suitable for write-intensive workloads in Cisco UCS platforms. This SSD offers TAA compliance and comes with a 3-year limited warranty, ideal for data centers requiring dependable, long-term storage solutions.

Specifications

Product Overview
Type Solid state drive - hot-swap
Form Factor 2.5"
Capacity 480 GB
Weight 70 g
Power Requirements 5V ±5%, Active: 2.5W Max, Idle: 1.3W
Drive Writes Per Day (DWPD) 3
Performance Class Enterprise Performance
Manufacturer Warranty 3-year limited warranty

Physical & Environmental
Dimensions (W x D x H) 69.85 x 100.45 x 7 mm
Operating Temperature 0°C to 70°C
Storage Temperature -55°C to 95°C
Operating Humidity 5% to 95% (non-condensing)
Vibration (Operating) 2.17 Grms (7–800 Hz)
Shock (Operating) 1000 G (0.5 ms half sine)
MTBF 2,000,000 hours

Cloud Management & Licensing
Management Interface None (attached via UCS Manager)
Licensing No licensing required
Included Cloud Features None

Compatibility
Designed For Cisco UCSB-5108, UCSB-B200-M6 series
OEM Manufacturer Equivalent Intel S4610

Interfaces
Interface Type SATA 6Gb/s
Port Count 1
Data Transfer Rate 600 MBps
Drive Transfer Rate 600 MBps (external)
Interfaces 1 x SATA 6 Gb/s
Compatible Bay 2.5"

Compliance & Origin
Country of Origin China / Taiwan
TAA Compliant Yes
RoHS Compliance Yes
Certifications CE, FCC, UL, TUV

Advanced Security Features
Data Protection End-to-end data protection with ECC
Data Encryption AES 256-bit Self-Encrypting Drive (SED)
Power Loss Protection Yes (power-fail protection capacitors)
Secure Erase Yes (supports ATA Secure Erase)
