Products Networking Switches Cisco UCSX Fabric Interconn...

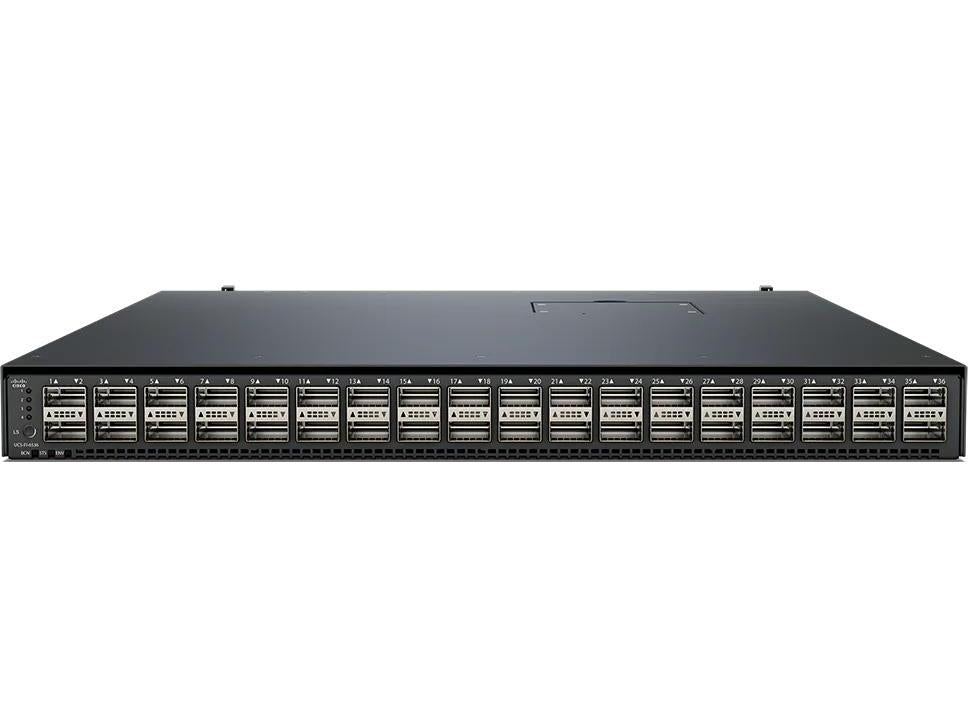

Cisco UCSX Fabric Interconnect 6536 100Gbps 1U Switch, 38 Ports

VENDOR: CISCO Mfg Part#: UCSX-FI-6536-U
  • The Cisco UCSX Fabric Interconnect 6536 is a high-performance 1U switch designed for Cisco UCS systems. With 38 ports and support for up to 100 Gbps data rates, it delivers ultra-fast connectivity for enterprise and data center environments. Ideal for high-throughput workloads and unified fabric integrations.
1 1
Photo is for illustration purposes only. Actual product may be different.
$21,815.25
$21,815.25
Sale Sold out
MSRP: $36,370.95
Shipping calculated at checkout.
  • 36 x 40/100-Gbps QSFP28 ports for ultra-high bandwidth connectivity
  • MAC address table supports up to 32,000 entries
  • Support for jumbo frames up to 9216 bytes for optimized data transfer
  • 32 GB installed RAM and quad-core processor for robust management
  • Layer 2 switching with IEEE 802.1s, 802.1w, 802.1q, 802.1x compliance
  • Managed via Cisco UCS Manager and Intersight for centralized control
View full details

Key Benefits

Eye-Insights
  • Delivers up to 100 Gbps per port across 36 QSFP28 interfaces for high-speed data center workloads
  • Integrated with Cisco UCS Manager/Intersight for simplified infrastructure orchestration
  • Built in the U.S. with RoHS and TAA compliance for government and regulated deployments

Product Overview

The Cisco UCSX Fabric Interconnect 6536 is an enterprise-class, high-speed switch tailored for integrated infrastructure like Cisco UCS. With 36 40/100-Gbps QSFP28 ports and support for jumbo frames up to 9216 bytes, it delivers scalable, low-latency networking. Designed with full Layer 2 compliance and managed through Cisco UCS Manager or Intersight, it enhances orchestration and visibility. A quad-core processor and 32 GB RAM ensure strong management responsiveness, while its MAC address table size of 32,000 supports dense traffic environments. RoHS and TAA compliance coupled with U.S. manufacturing underscore its reliability for critical deployments.

Specifications

Primary Information
Network Device Type Switch
Model Fabric Interconnect 6536
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 100 Gbps
Networking / Ports Qty 38
Data Link Protocol Gigabit Ethernet
Processor / Type Quad-Core
RAM / Total Installed Size 32 GB
Networking Compliant Standards 802.1s,802.1w,802.1p, 802.1x,802.1q
Media Layer Supported Layer 2
Power / Device Type None
Features Management (Cisco UCS Manager/Cisco Intersight),Unified fabric,Fabric extender architecture

Interfaces / Ports
Interfaces 36 x 40/100-Gbps QSFP28 ports; RJ-45 Management, RS-232 Serial; 1 x USB ports

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
RoHS Y
COO UNITED STATES
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 32000
Jumbo Frame Support up to 9216 bytes
Interfaces 36 x 40/100-Gbps QSFP28 ports; RJ-45 Management, RS-232 Serial; 1 x USB ports

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 24.7 Inch
Height 1.72 Inch
Weight 11.6 Kg

UNSPSC Code
UNSPSC Code 43222612
