Products Network Stuff Cisco VIC 15235 Dual-Port 2...

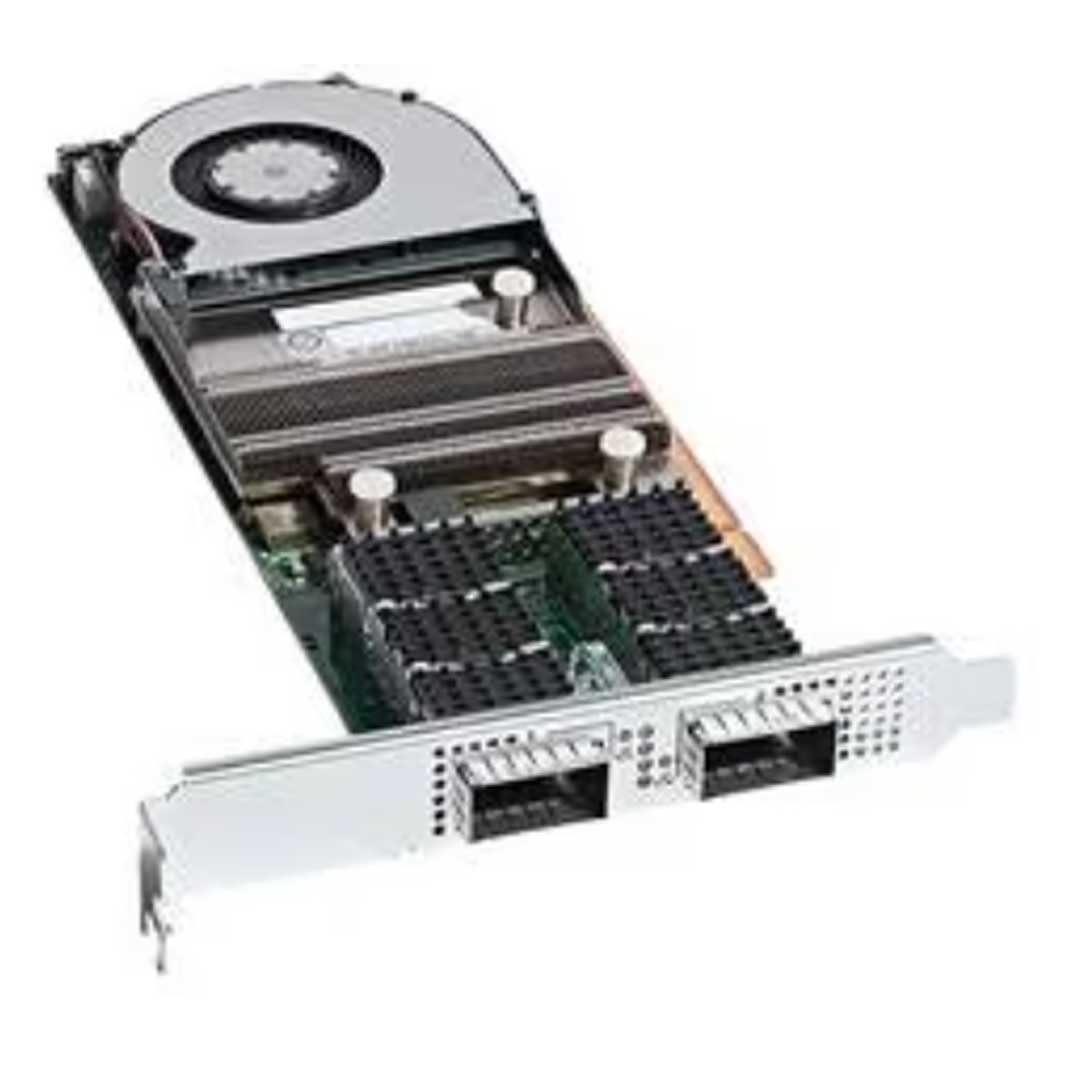

Cisco VIC 15235 Dual-Port 200Gbps PCIe Network Adapter w/Secure Boot

VENDOR: CISCO Mfg Part#: HCI-P-V5D200G=
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,644.14
$1,644.14
Sale Sold out
MSRP: $2,411.40
Shipping calculated at checkout.
  • Dual-port support for 40/100/200 Gbps via QSFP/QSFP28/QSFP56 interfaces
  • PCI Express plug-in form factor for Cisco UCS C-Series M6 servers
  • Supports secure boot and network interface virtualization
  • Compliant with a wide range of standards including IEEE 802.1q, 802.3cd, 802.3ba
  • Features high-speed wired connectivity and agile stateless platform
  • Compact size: 2.35 x 7.17 x 0.85 inches for space-constrained environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast 200 Gbps throughput, ideal for bandwidth-intensive data center tasks
  • Enhanced security with built-in secure boot and virtualization support for enterprise-grade protection
  • Designed specifically for Cisco UCS C-Series M6 servers, ensuring seamless integration and optimized performance

Product Overview

The Cisco VIC 15235 is an advanced network adapter engineered for high-throughput Ethernet applications in data center environments. Supporting dual-port 40/100/200-Gbps configurations via high-speed QSFP/QSFP28/QSFP56 interfaces, it is tailored for installation in Cisco UCS C-Series M6 rack servers. This plug-in PCIe card is ideal for environments requiring not just raw speed, but also enhanced security and virtualized network functionality.

With a data transfer rate of up to 200 Gbps and support for robust networking protocols—such as IEEE 802.1q, 802.1p, 802.3cd, and 802.3ba—the VIC 15235 delivers exceptional bandwidth and interoperability. As a stateless and agile platform, it supports network interface virtualization, offering flexibility for scaling workloads and optimizing server resources. Its secure boot capability adds a critical layer of protection, helping mitigate firmware threats and boost compliance.

Designed with a compact footprint of 2.35 x 7.17 x 0.85 inches, the adapter ensures easy integration into dense server configurations. With TAA compliance and built-in support for virtualization, the Cisco VIC 15235 meets the regulatory and performance needs of governmental and enterprise IT infrastructures.

Specifications

Product Overview
Product Type Network Adapter
Manufacturer Cisco
Model VIC 15235
Manufacturer Part Number HCI-P-V5D200G=
Form Factor Plug-In Card
Compatible Systems Cisco UCS C-Series M6 rack servers
Weight
Power Requirements

Wireless Features

Compliance & Origin
Country of Origin (COO) China
TAA Compliant Yes
Compliance Standards IEEE 802.1q, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3cd, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3ae, IEEE 802.3ap

Advanced Security Features
Secure Boot Yes
Firmware Integrity Protection Supported
Stateless Offloads Supported
Firewall Capabilities
Intrusion Detection/Prevention System (IDS/IPS)
Content Filtering
Malware Protection

Interfaces
Interface Type PCI Express
Number of Ports 2
Port Type QSFP/QSFP28/QSFP56
Data Transfer Rate 200 Gbps
Supported Speeds per Port 40/100/200 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Connectivity Technology Wired
Network Interface Virtualization Supported
Interfaces & Connections Dual-port 40/100/200-Gbps PCIe(QSFP/QSFP28/QSFP56)

Physical & Environmental
Width 2.35 Inch
Depth 7.17 Inch
Height 0.85 Inch
Operating Temperature
Storage Temperature
Operating Humidity

Cloud Management & Licensing
Cloud Managed
Management Interface
Subscription License
Included Cloud Features
