Cisco VIC 15237 2x 40/100/200G mLOM C-Series w/Secure Boot

VENDOR: CISCO Mfg Part#: HCI-M-V5D200GV2=
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,558.90
$1,558.90
Sale Sold out
MSRP: $2,286.38
Shipping calculated at checkout.
  • High performance dual-port interface supporting 40/100/200 Gbps operation
  • Supports plug-in form factor for Cisco C-Series mLOM slots
  • Built-in secure boot functionality enhances hardware-level security
  • Compliant with Trade Agreements Act (TAA) for government deployment
  • Compact dimensions: 3.94" (W) x 6.28" (D) x 0.74" (H)
  • Gigabit Ethernet protocol support for broad compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-high bandwidth up to 200 Gbps, ideal for data-intensive enterprise tasks
  • Secure boot functionality enhances operational integrity in sensitive or regulated environments
  • TAA compliance makes it viable for government and public sector IT procurement

Product Overview

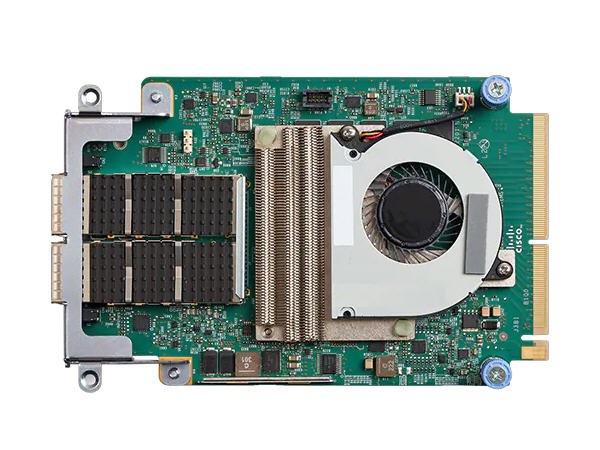

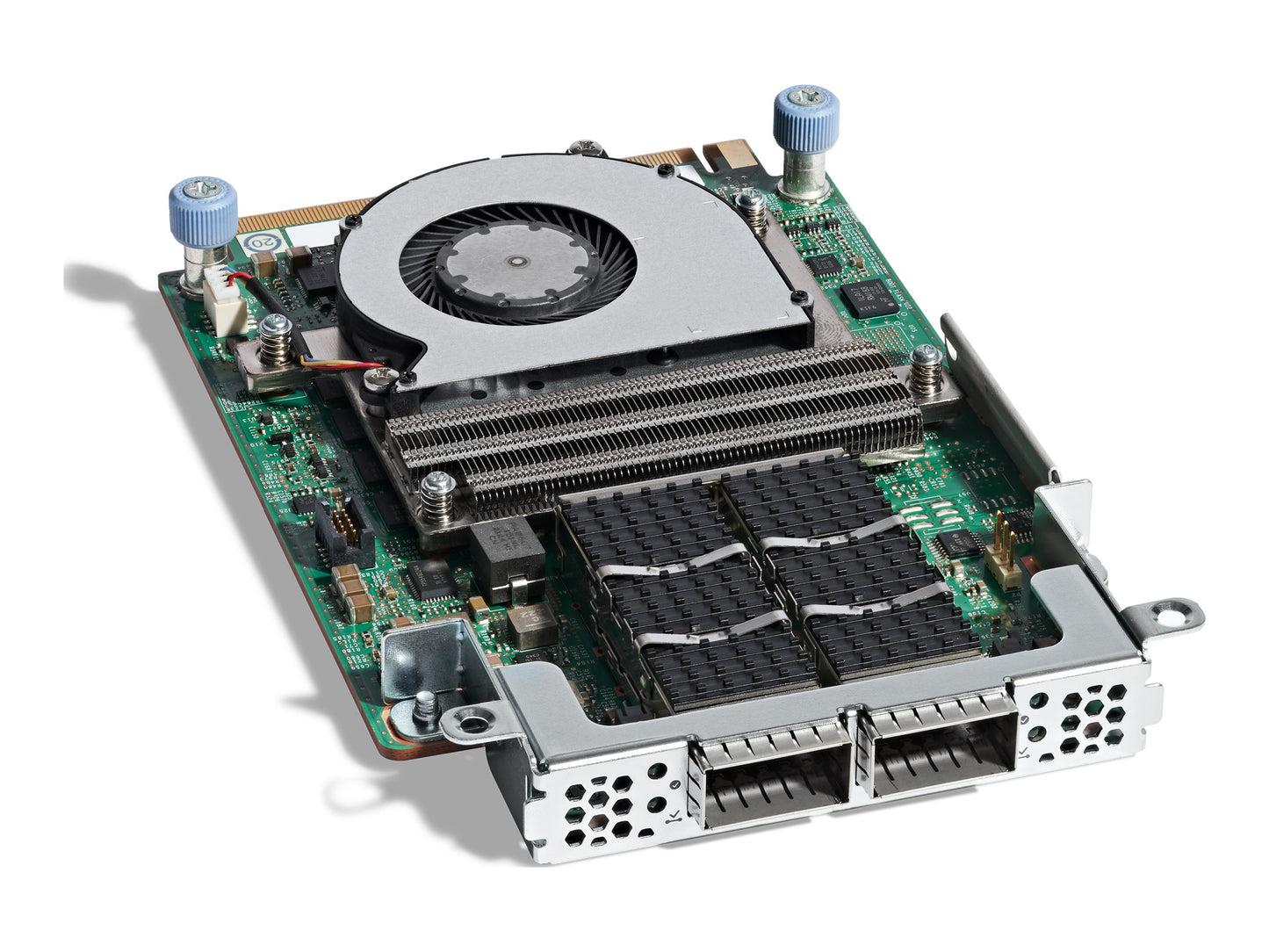

The Cisco VIC 15237 Virtual Interface Card is engineered for enterprise-class networking performance in Cisco C-Series servers. Supporting dual-port connectivity at 40/100/200 Gbps, this high-bandwidth adapter utilizes multigigabit link capability over Gigabit Ethernet buses. With a plug-in card format, it seamlessly integrates into Cisco’s modular LAN-on-Motherboard (mLOM) architecture—ensuring streamlined deployment across multiple server platforms.

Its 200 Gbps data transfer rate makes it ideal for data-intensive workloads in virtualized environments, including cloud computing, big data analytics, and high-performance computing (HPC). The card also enhances security with built-in secure boot functionality, helping maintain hardware-level trust during system startup. TAA compliance further positions it for use in government-certified and regulated sectors.

Designed with enterprise reliability, the card includes two front-facing high-speed ports and a compact physical footprint—offering a balance between throughput and space efficiency. Its Cisco standard reliability and Chinese manufacturing make it a trusted component for mission-critical deployments.

Specifications

Product Overview
Product Type Virtual Interface Card
Form Factor Plug-In Card
Weight 0.52 lbs (0.24 kg)
Power Consumption Up to 30W
Designed For Cisco UCS C-Series Rack Servers
Series Cisco VIC 15000 Series
Model VIC 15237
Secure Boot Support Yes

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin China
TAA Compliant Yes
Compliance Standards RoHS, IEEE 802.1Q, IEEE 802.3, REACH
Certifications FCC Class A, ICES-003, UL, CE

Advanced Security Features
Secure Boot Yes
Hardware Root of Trust Yes
Firmware Integrity Protection Yes
Traffic Isolation Yes, via VNTag and VLAN
Role-Based Access Control Yes

Interfaces
Ports 2 x QSFP56
Interface Type mLOM (modular LAN-on-motherboard) interface
Data Transfer Rate 200 Gbps
Supported Speeds 40/100/200 Gbps
Host Interface PCIe 4.0 x16 (via mLOM interface)
Connection Media Fiber
Port Connector Type QSFP56
Network Protocol Ethernet, TCP/IP, UDP, IPv4, IPv6, RoCEv2, iWARP
Offload Support VXLAN, NVGRE, GENEVE, RDMA
Virtualization Support VM-FEX, SR-IOV

Physical & Environmental
Width 3.94 Inch
Depth 6.28 Inch
Height 0.74 Inch
Operating Temperature 0 to 55 °C
Storage Temperature -40 to 70 °C
Operating Humidity 10% - 90% (non-condensing)
Storage Humidity 5% - 93% (non-condensing)

Cloud Management & Licensing
Management Interface Cisco Intersight, Cisco UCS Manager
License Requirement No license required for base functionality
Cloud-Managed Optional via Cisco Intersight
