Cisco VIC 15428 4x 10/25/50G mLOM C-Series Network Adapter

VENDOR: CISCO Mfg Part#: HCI-M-V5Q50G=
1 3

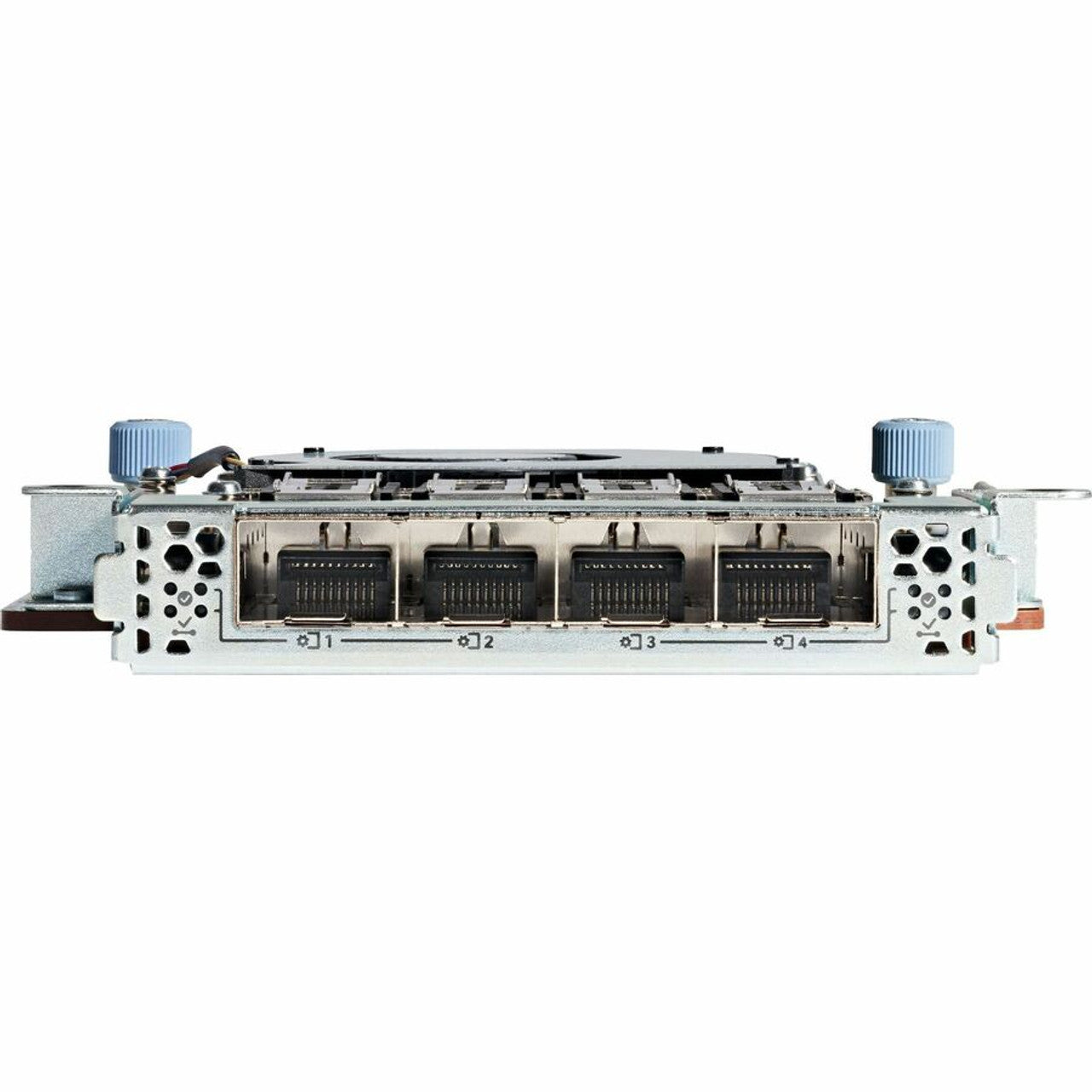

Photo is for illustration purposes only. Actual product may be different.
$1,356.34
$1,356.34
Sale Sold out
MSRP: $1,989.30
Shipping calculated at checkout.
  • - Four-port mLOM network adapter supporting 10/25/50 Gbps speeds
  • - Data transfer rate of up to 50 Gbps per port
  • - Compliance with IEEE 802.1q, 802.1p, and 802.1Qaz standards
  • - Compact dimensions: 2.5" width, 6.6" depth, 0.53" height
  • - Power-efficient design with 27.4W operational consumption
  • - TAA compliant for government and enterprise applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for demanding virtualized and high-throughput workloads in Cisco C-Series environments.
  • TAA compliance enables eligibility for federal and public-sector procurement.
  • Supports advanced Ethernet standards for enhanced traffic prioritization and QoS.

Product Overview

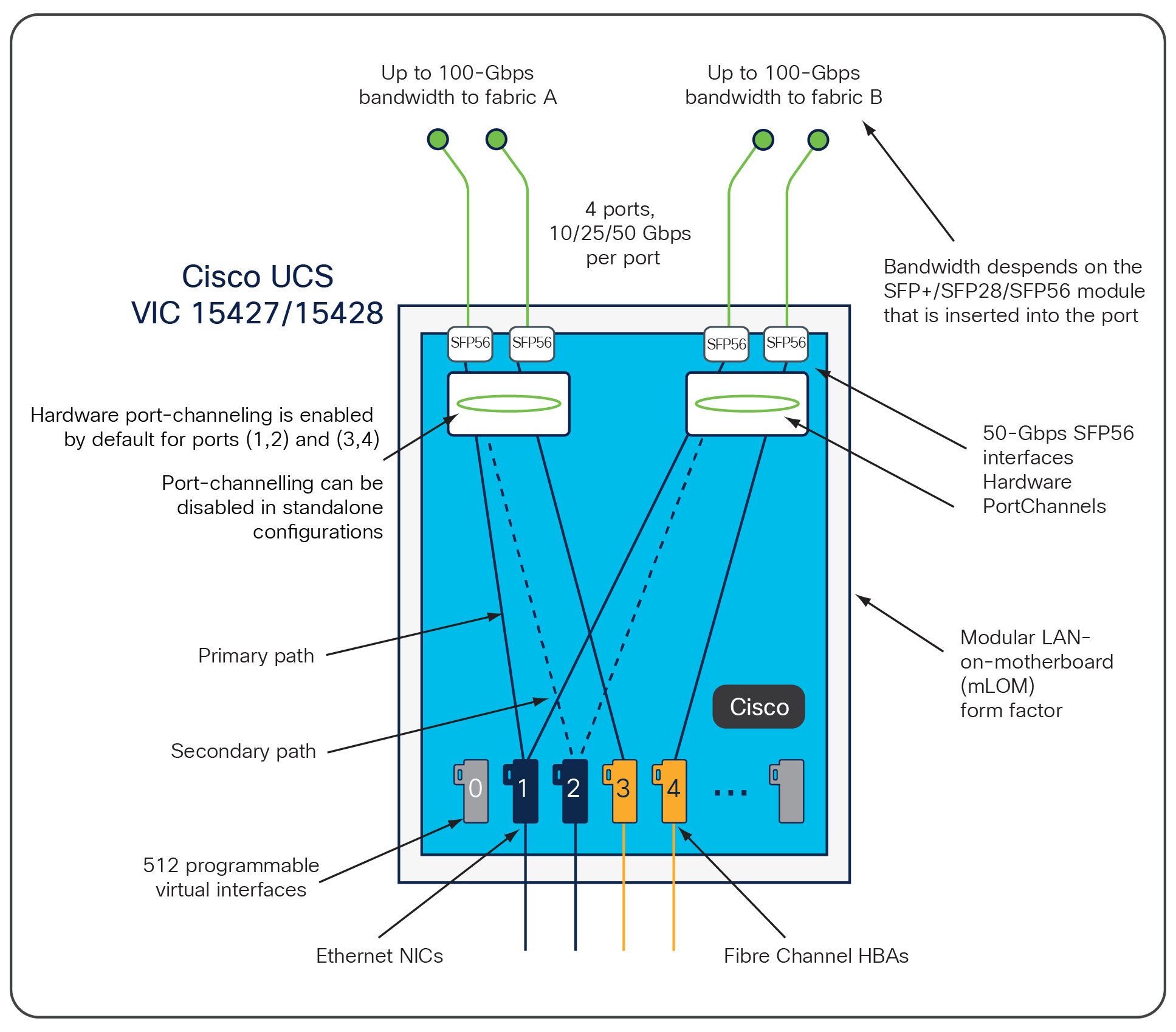

The Cisco VIC 15428 4x 10/25/50G mLOM C-Series network adapter is built for high-performance enterprise environments, supporting 10/25/50 Gbps Ethernet connections across four ports. With mLOM architecture, it integrates easily into Cisco C-Series servers, optimizing both space and power efficiency. Compliant with IEEE 802.3xl, 802.1q, 802.1p, and 802.1Qaz standards, and consuming just 27.4 watts, this adapter is TAA compliant and suited for mission-critical deployments.

Specifications

Product Overview
Product Type Network Adapter
Manufacturer Cisco
Model VIC 15428
Form Factor modular LAN on motherboard (mLOM)
Power Consumption (Operational) 27.4 Watt
Part Number HCI-M-V5Q50G=
UPC
Device Supported Cisco UCS C-Series Rack Servers

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin China
TAA Compliant Yes
RoHS Compliance Yes
Regulatory Standards UL, CE, FCC, VCCI, BSMI, C-Tick

Advanced Security Features
Secure Boot Compatibility Yes
Firmware Integrity Protection Yes (Signed firmware images)
Traffic Isolation Supported (via VLANs and QoS policies)
Network Segmentation Yes (802.1Q VLAN tagging support)
SR-IOV Support Yes

Interfaces
Ports Quantity 4
Supported Port Speeds 10/25/50 Gbps
Interface Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Connection Interface mLOM interface
Compatible Slot Type mLOM slot on Cisco UCS C-Series systems
System Interface PCIe 3.0 x16 (via mLOM)
Networking Compliant Standards IEEE 802.3xl, IEEE 802.1q, IEEE 802.1p, IEEE 802.1Qaz
Ethernet Standards IEEE 802.3by (25G), IEEE 802.3cd (50G)

Physical & Environmental
Width 2.5 inch
Depth 6.6 inch
Height 0.53 inch
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 10% to 90% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)
Airflow Front-to-back (dependent on server chassis airflow)

Cloud Management & Licensing
Management Interface Cisco Intersight, Cisco UCS Manager (via server integration)
Licensing Model No license required for basic operation
Supported Cisco Features Cisco VM-FEX, Cisco SingleConnect technology
Telemetry Support Yes (via Cisco Intersight)
