Cisco Webex Codec Pro Video Conferencing Device

VENDOR: CISCO Mfg Part#: CS-CODEC-PRO-K9++ UPC#: 889728185820
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$16,049.60
$16,049.60
Sale Sold out
MSRP: $23,539.41
Shipping calculated at checkout.
  • Supports video resolutions up to 3840 x 2160 (UHD) for superior visual quality
  • Advanced codecs including H.264, H.263, G.722.1, and G.729AB for efficient compression
  • Comprehensive connectivity: 6 HDMI inputs, 3 HDMI outputs, 8 microphone inputs, dual USB
  • Multi-protocol networking: H.323, SIP, BFCP, H.245 with IPv6 and SSH support
  • Networking interfaces include Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 4.0, Wi-Fi 802.11ac
  • TAA compliant and rack-mountable design with included Cisco Collaboration Endpoint 9.4 software

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-grade video conferencing codec ensures integration flexibility and high-definition communication performance
  • TAA compliance makes it suitable for federal and government procurement use in regulated environments
  • Extensive I/O and advanced networking support provide scalable and secure deployment in multidisciplinary AV systems

Product Overview

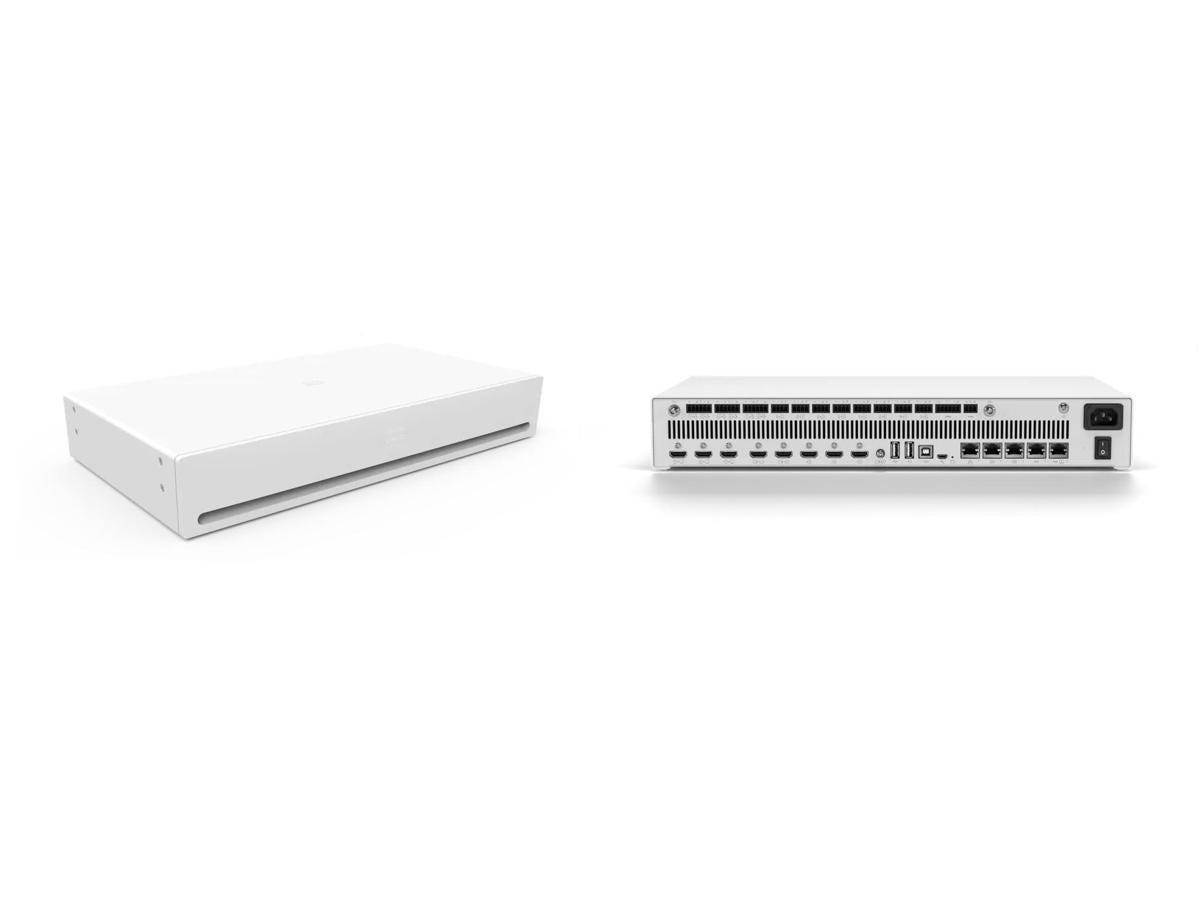

The Cisco Webex Codec Pro is a rack-mountable, TAA-compliant video conferencing codec purpose-built for enterprise collaboration environments. It supports resolutions up to 4K UHD (3840x2160) and includes 6 HDMI inputs, 3 HDMI outputs, and 8 microphone inputs for flexible integrations. The device enables high-speed networking through support for Gigabit Ethernet, 802.11ac Wi-Fi, and Bluetooth 4.0, and leverages protocols like SIP, H.323, and BFCP for reliable communication. Codec formats supported include H.263, H.264, G.722, and G.729AB. With advanced features such as dual-band wireless, 2x2 MU-MIMO, and Quality of Service, the system ensures intelligent and stable video performance. Included software, Cisco Collaboration Endpoint 9.4, streamlines integration and platform management.

Specifications

Product Overview
Product Description Cisco Webex Codec Pro - video conferencing device - TAA Compliant
Device Type Video conferencing device
Type Codec board - rack-mountable
Form Factor Rack-mountable
Weight 7.28 lbs
Power Requirements 100-240V AC, 50/60 Hz

Wireless Features
Wi-Fi Standards IEEE 802.11ac
Wi-Fi Bands Dual-band 2.4 GHz and 5 GHz
Bluetooth Version Bluetooth 4.0
MIMO Technology 2x2 MU-MIMO

Compliance & Origin
TAA Compliant Yes
Country of Origin Mexico
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, EN55024, FCC, EN 60950-1, FCC CFR47 Part 15 C, X.509, NRTL, EN 62311, Directive 2011/65/EU, Directive 2002/96/EU, EN 300.440, EN 300 328, EN 301 489-1, FCC CFR47 Part 15 B Class A, EN 62479, Directive 2014/35/EU, Directive 2014/30/EU, EN 55032 Class A, EN 301 893, FCC CFR47 Part 15 E, Directive 2014/53/EU, EN 301 489-17

Advanced Security Features
Encryption Support TLS, SRTP, HTTPS, Secure Security Partitioning
Security Protocols 802.1X, HTTPS, SSH, password-authenticated
Access Control Administrator/password authentication, role-based access, URI dialing security

Interfaces
HDMI Inputs 6 x HDMI Type A
HDMI Outputs 3 x HDMI Type A
Microphone Inputs 8 x microphone inputs
Audio Outputs 6 x audio outputs
Ethernet Ports 3 x RJ-45 (10/100/1000Base-T)
PoE Ethernet Ports 2 x RJ-45 (Power over Ethernet)
USB Ports 3 x USB (2 x standard, 1 x USB host)
Video Output Codec board
Digital Video Standard High-Definition Multimedia Interface (HDMI)
Max Transfer Rate 6 Mbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac, Bluetooth 4.0
Digital Signaling Protocol H.323, SIP, H.245, H.460.18, H.460.19, BFCP
Data Compression Protocol G.711, G.722, G.729AB, G.722.1, H.263, H.264
Supported Display Graphics HDTV (1920x1080), HD (1280 x 720), UHD (3840 x 2160)

Physical & Environmental
Width 17.2 in
Depth 9.1 in
Height 2.6 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%

Cloud Management & Licensing
Software Included Cisco Collaboration Endpoint 9.4
Management Interface Web UI, SSH, API, Cisco Touch 10
Supported Protocols TCP/IP, NTP, DHCP, DNS
Included Features IPv6 support, Quality of Service (QoS), SSH support, URI Dialing, Administrator password security, CEC 2.0, NTP client
