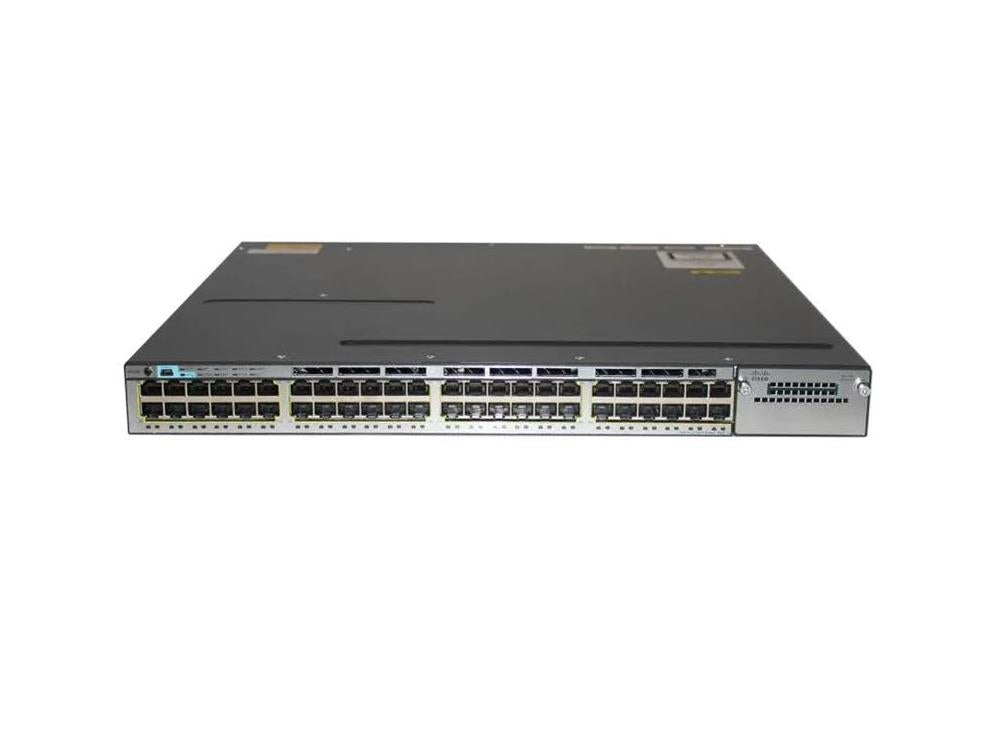

Cisco WS-C3750X-48T-L Catalyst 3750X 48-Port LAN Switch

VENDOR: CISCO Mfg Part#: WS-C3750X-48T-L
  • The Cisco Catalyst 3750X WS-C3750X-48T-L is a high-performance 48-port data LAN switch designed for scalable enterprise networking. With advanced Layer 2 and Layer 3 capabilities, support for protocols like OSPF and BGPv4, and robust security including TACACS+ and RADIUS, it delivers future-ready connectivity. Optimized for businesses requiring dependable performance and enhanced security.
1 1
Photo is for illustration purposes only. Actual product may be different.
$7,012.50
$7,012.50
Sale Sold out
MSRP: $10,200.00
Shipping calculated at checkout.
  • 48 data LAN ports for high-capacity networking
  • 256MB of RAM and 64MB flash memory for optimal performance
  • Supports Layer 2 and Layer 3 switching protocols
  • Dynamic routing: OSPF, EIGRP, BGPv4, and IS-ISv4 supported
  • TACACS+ and RADIUS for secure access control
  • Standards support: IEEE 802.1s, 802.1w, 802.1x
View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-ready scalability with 48 ports and comprehensive Layer 3 routing.
  • Offers secure access verification using TACACS+ and RADIUS protocols.
  • TAA compliance supports deployment in government-regulated environments.

Product Overview

The Cisco WS-C3750X-48T-L Catalyst 3750X switch features 48 high-speed data ports and a robust Layer 2/3 architecture, suited for growing enterprise networks. Engineered with 256MB RAM and 64MB flash memory, the device supports advanced routing protocols including OSPF, EIGRP, BGPv4, and IS-ISv4. Enhanced network protection is provided via TACACS+, RADIUS authentication, and support for IEEE 802.1x, 802.1s, and 802.1w. TAA compliance and visible LED indicators make it ideal for secure, scalable, and compliant enterprise infrastructures.

Specifications

Primary Information
Network Device Type Switch
Model WS-C3750X-48T-L
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Status Indicators LED indicators
RAM / Total Installed Size 256 MB
Flash Memory / Installed Size 64 MB
Networking Compliant Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Media Layer Supported Layer 2, Layer 3
Power / Device Type Power Supply
Power / Provided (W) 350 Watt
MTBF 171846 Hours
Features Media Access Control Security (MACsec) hardware-based encryption; Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink; Open Shortest Path First (OSPF) for routed access in IP Base image
Expansion Slot Type
Redundant Power Supply Supported
PoE (RJ-45) Port
Bypass
Stack Port
Management Port
Modular
USB
Number of Total Expansion Slots
LRE Port
Token Ring Port
Compatible Rack Unit
Manageable
Depth
Width
Height
Product Type
Brand Name
Product Series
Product Line
Product Name
Product Model
Manufacturer
Management
Form Factor
Weight (Approximate)
Layer Supported
Power Source
Marketing Information
Manufacturer Website Address
Manufacturer Part Number
License Type
License Quantity
Software Name
RAM Type
RAM / Technology
RAM / Storage Capacity

Interfaces / Ports
Interfaces 48 10/100/1000 Ethernet ports

Special Feature
Min Operating Temperature -5 CELSIUS
Min Storage Temperature -40 CELSIUS
Max Storage Temperature 70 CELSIUS
COO CHINA
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
Jumbo Frame Support 9216 Byte
Remote Management Protocol DHCP; TFTP; RMON
Routing Protocol OSPF, EIGRP, BGPv4, and IS-ISv4
Encryption Algorithm MACsec
Authentication Method TACACS+ and RADIUS
Interfaces 48 10/100/1000 Ethernet ports

Dimensions&Miscellaneous
Width 17.5 Inch
Depth 18.0 Inch
Height 1.75 Inch
Weight 7.4 Kg

UNSPSC Code
UNSPSC Code 43222612
