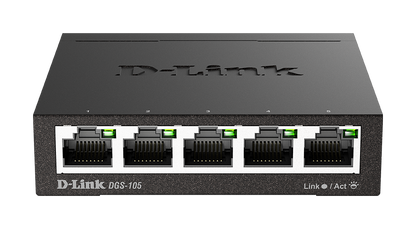

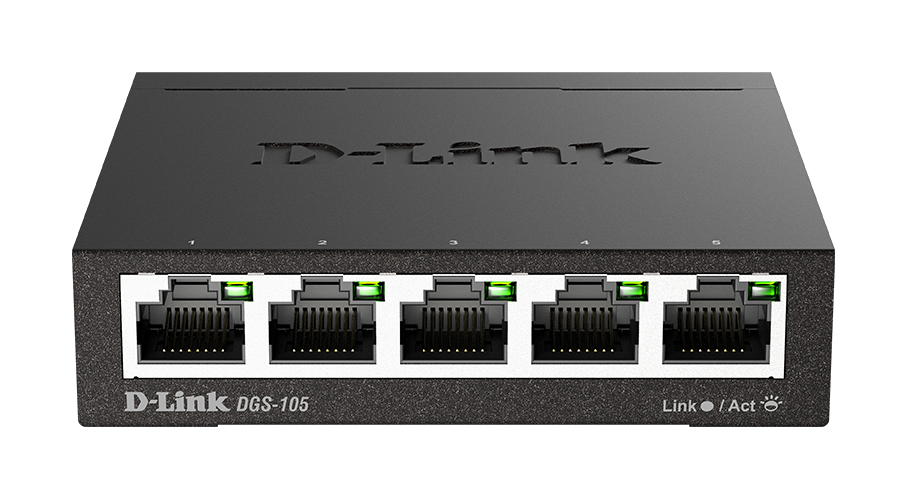

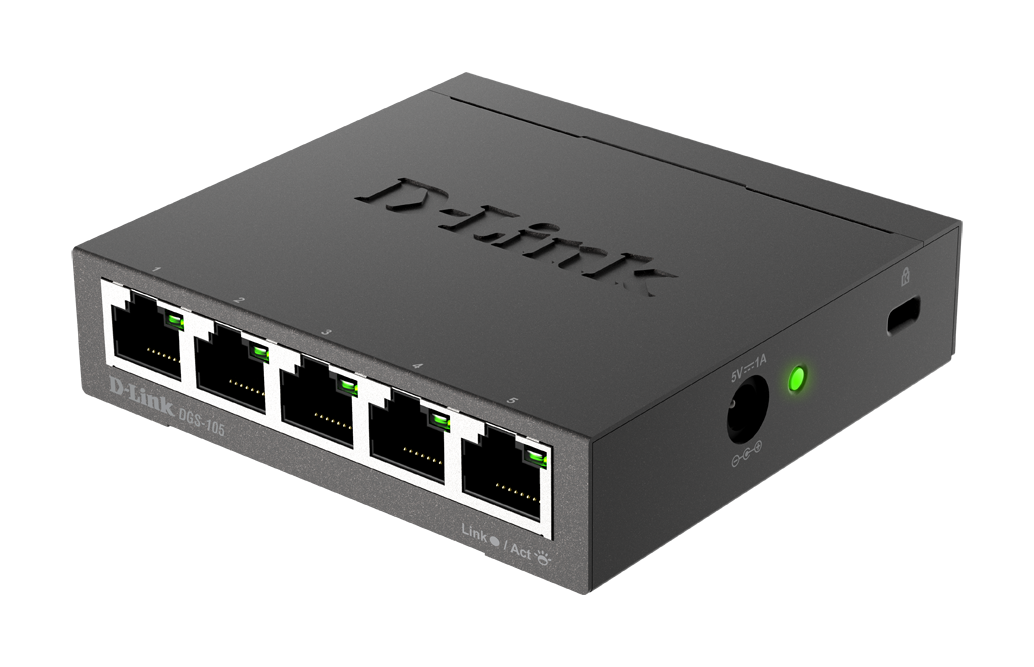

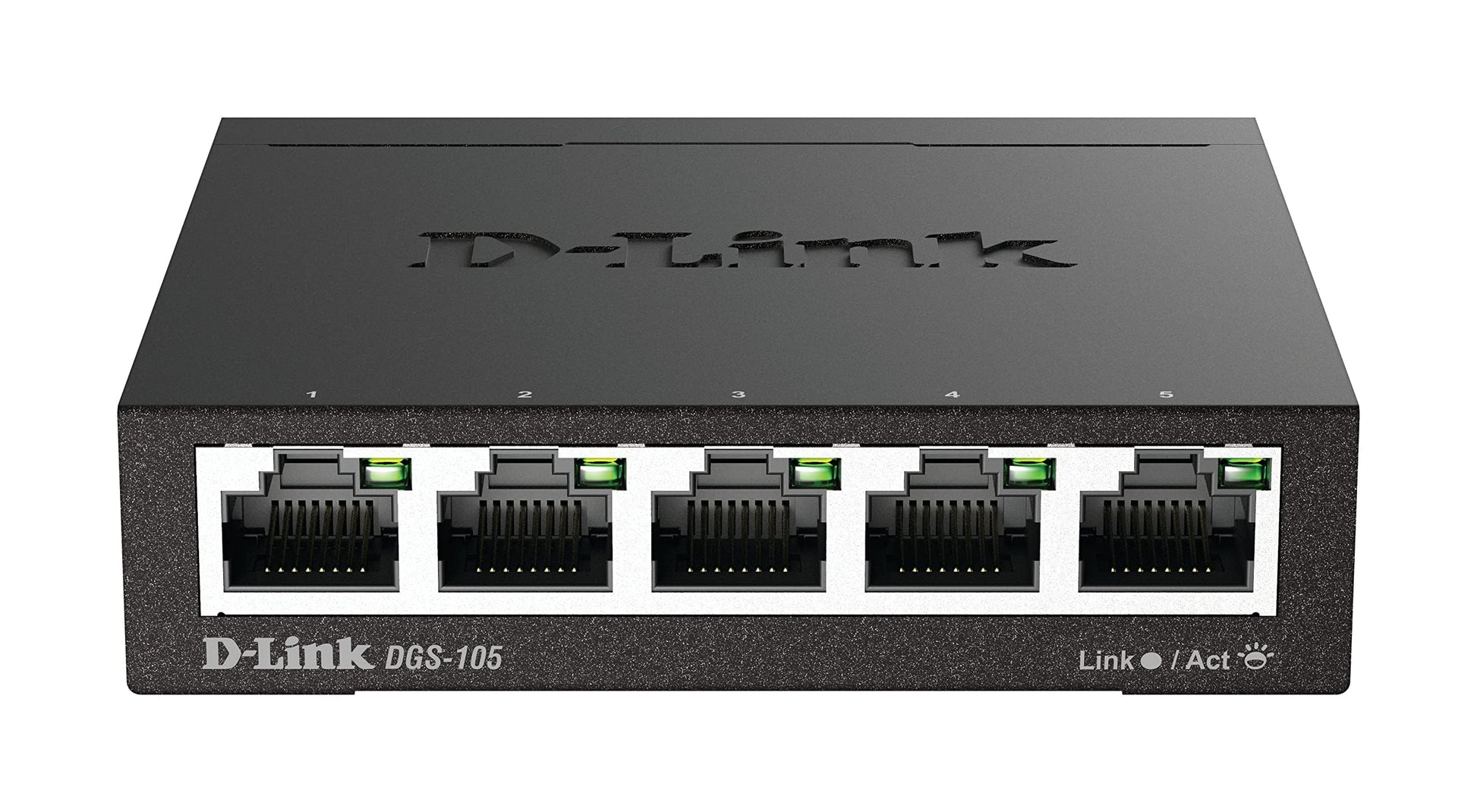

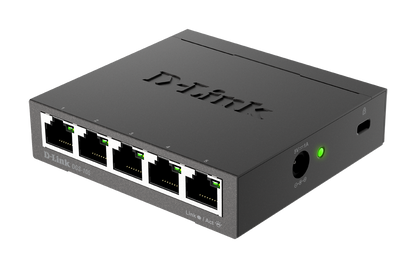

D-Link DGS-105 5-Port Unmanaged Gigabit Desktop Switch

VENDOR: D-LINK Mfg Part#: DGS-105 UPC#: 790069285981
1 3
Photo is for illustration purposes only. Actual product may be different.
$20.16
$20.16
Sale Sold out
MSRP: $32.99
Shipping calculated at checkout.
  • - 5 x 10/100/1000 Mbps RJ-45 ports for high-speed wired networking
  • - Unmanaged switch design with plug-and-play setup
  • - Supports IEEE 802.3, 802.3u, 802.3ab standards
  • - 802.1p QoS with 4 queues for traffic prioritization
  • - Metal enclosure with status LEDs for power and link/activity
  • - Jumbo frame support up to 9.6KB for improved throughput

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers fast and stable Gigabit Ethernet performance for small networks and workgroups.
  • 802.1p QoS support ensures priority traffic management crucial for VoIP or video streaming.
  • Compact metal housing and 5-year warranty offer long-lasting, reliable network operation.

Product Overview

The D-Link DGS-105 5-Port Unmanaged Gigabit Metal Desktop Switch is ideal for small offices and workgroups. It features five auto-sensing 10/100/1000 Mbps ports for fast data transfers and a 1 Gbps switching rate per port. The metal housing ensures durability, while IEEE compliance and 802.1p QoS support with four queues provide efficient traffic management. Its support for jumbo frames up to 9.6KB is ideal for intensive data transfers. With TAA compliance and a 5-year warranty, it's a reliable plug-and-play networking option.

Specifications

Product Overview
Product Type Unmanaged Gigabit Switch
Form Factor Desktop
Enclosure Type Metal
Number of Ports 5
Throughput 10 Gbps switching fabric
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps
MAC Address Table Size 2,000 entries
Packet Buffer 128 KB
Jumbo Frame Support 9.6 KB
QoS Support 802.1p with 4 queues
Power Supply External AC adapter
Power Consumption 2.3 Watts (maximum)
MTBF 2,163,105 hours
Warranty Limited lifetime warranty

Wireless Features
Wireless Capability

Compliance & Origin
Standards & Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Certifications FCC Class B, CE, ICES-003, RoHS
TAA Compliant Yes
Country of Origin Taiwan

Advanced Security Features
VLAN Support No (Unmanaged Switch)
Access Control List (ACL) No
Storm Control No
Loop Detection No

Interfaces
Port Type 10/100/1000BASE-T RJ-45
Total Gigabit Ethernet Ports 5
Auto MDI/MDIX Yes
Auto Negotiation Yes
Full/Half Duplex Supported
Flow Control IEEE 802.3x
Switch Architecture Store and Forward

Physical & Environmental
Width 3.8 in (100 mm)
Depth 3.9 in (98 mm)
Height 1.1 in (28 mm)
Weight 0.4 lb (180 g)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing

Cloud Management & Licensing
Cloud Management Not Supported
Centralized Management Not Supported
Licensing Requirements None (Unmanaged)
