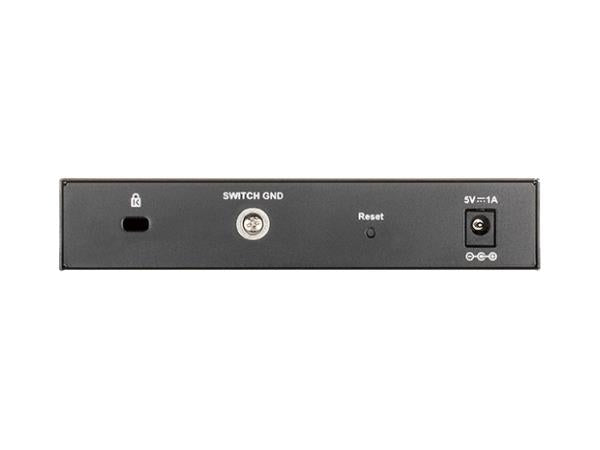

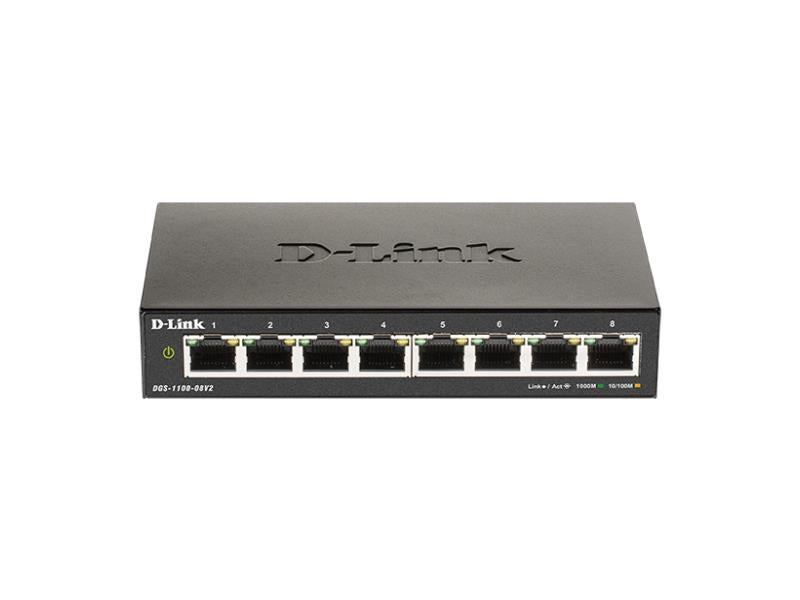

D-Link DGS-1100-08V2 8-Port Smart Managed Gigabit Switch

VENDOR: D-LINK Mfg Part#: DGS-1100-08V2 UPC#: 790069453304
  • The D-Link DGS-1100-08V2 is a Smart Managed Gigabit switch featuring 8 high-speed ports suited for small to medium-sized business networking. It offers robust Layer 2 management, diagnostics tools, energy efficiency enhancements, and compliance with key IEEE standards. Ideal for cost-effective yet professional network infrastructure.
  • The D-Link DGS-1100-08V2 is a Smart Managed Gigabit switch featuring 8 high-speed ports suited for small to medium-sized business networking. It offers robust Layer 2 management, diagnostics tools, energy efficiency enhancements, and compliance with key IEEE standards. Ideal for cost-effective yet professional network infrastructure.
1 2
Photo is for illustration purposes only. Actual product may be different.
$34.99
$34.99
Sale Sold out
MSRP: $44.99
Shipping calculated at checkout.
  • 8 x 10/100/1000 Mbps ports for high-speed connectivity
  • Layer 2 smart management with VLAN and IPv4 support
  • Jumbo frame support up to 9216 bytes
  • Energy Efficient Ethernet compliant (IEEE 802.3az), 4.94W max power
  • MAC address table with 4K entries
  • Compact desktop form factor with 2 MB flash memory
View full details

Key Benefits

Eye-Insights
  • Supports key IEEE networking standards ensuring compatibility with various business systems
  • Built-in smart management features including VLAN and IPv4 simplify network administration
  • Energy-efficient and reliable with low power consumption and 1.45 million-hour MTBF

Product Overview

The D-Link DGS-1100-08V2 is an 8-port Smart Managed Gigabit Ethernet switch designed for small to medium businesses requiring efficient, configurable Layer 2 networking. With 8 x 10/100/1000 Mbps ports, jumbo frame support, and a 4K-entry MAC address table, it delivers high-speed, reliable performance. The switch supports multiple IEEE standards and energy-efficient technologies, consuming a maximum of 4.94 watts. It also supports VLAN and IPv4 remote management, includes 2 MB flash memory, and complies with TAA regulations. Its desktop form factor and compact footprint make it an accessible choice for scalable network environments.

Specifications

Primary Information
Features Simple Layer 2 Management; Web-based User Interface;
Network Device Type Switch
Model DGS-1100-08V2
Form Factor Desktop
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Networking / Ports Qty 8
Data Link Protocol Gigabit Ethernet
Flash Memory / Installed Size 2 MB
Networking Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az
Power / Device Type Power Supply
Media Layer Supported Layer 2
Max Power Consumption 4.94 Watt
Power / Voltage Required 100 - 240 V
MTBF 1456992 hours

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 8 x 10/100/1000 Mbps
10/100/1000BASE-T Ports 8

Special Feature
COO TAIWAN
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
MAC Address Table Size 4K entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol IPv4; VLAN
10/100/1000BASE-T Ports 8
Interfaces 8 x 10/100/1000 Mbps

Dimensions&Miscellaneous
Width 145 Mm
Depth 82 Mm
Height 28 Mm
Weight 0.34 Kg
