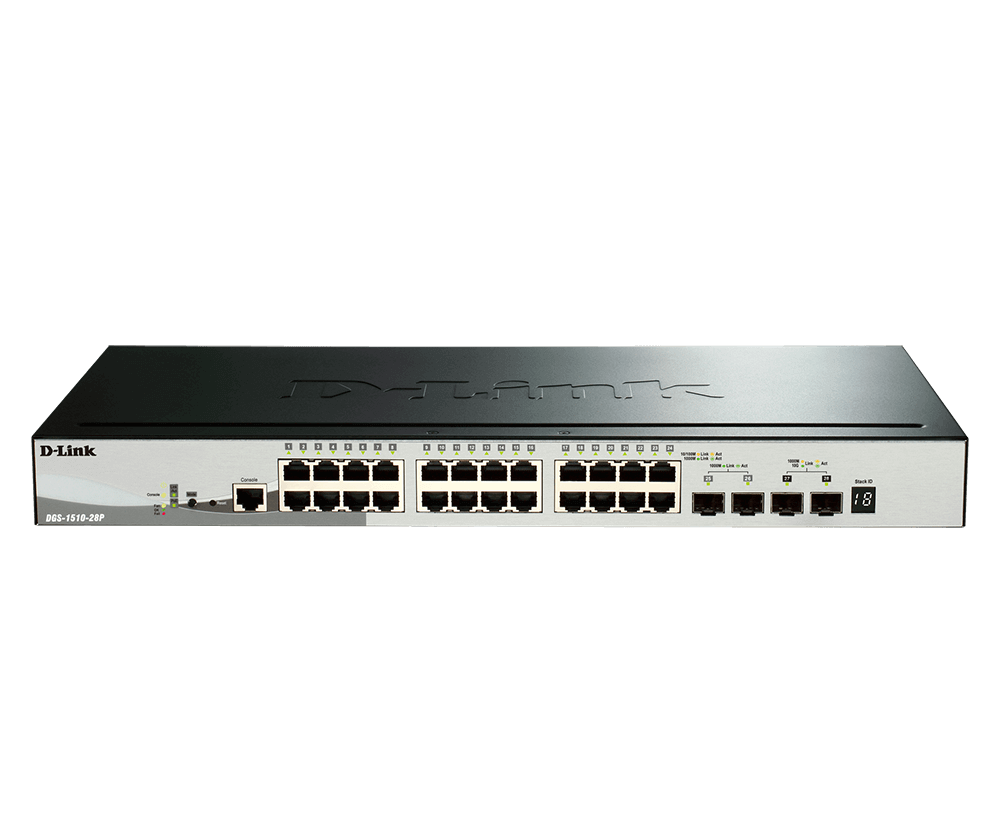

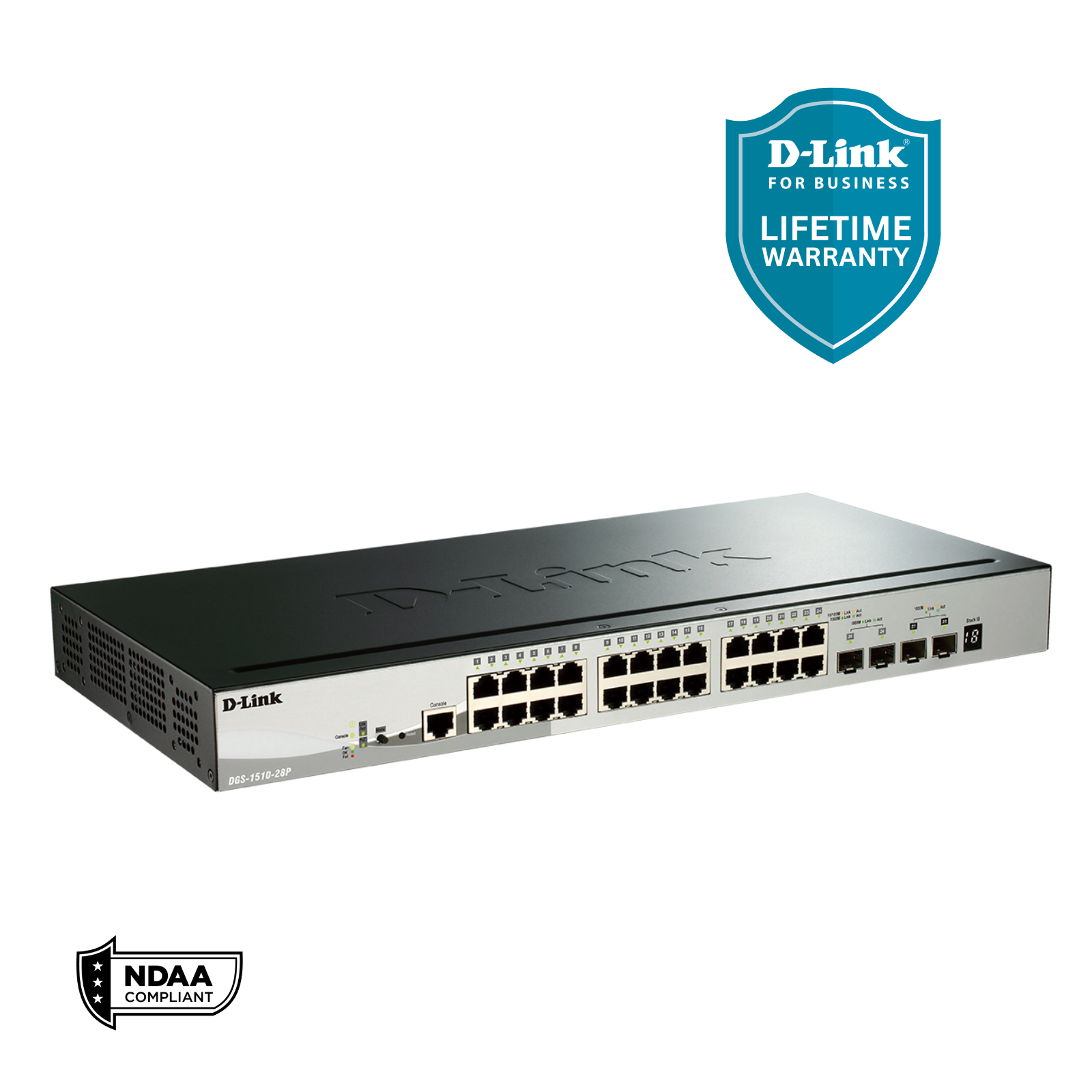

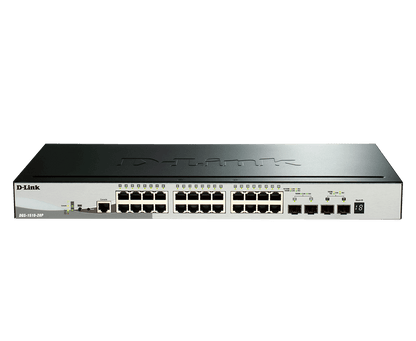

D-Link DGS-1510-28X 28-Port Managed Gigabit Switch with 10G Uplinks

VENDOR: D-LINK Mfg Part#: DGS-1510-28X UPC#: 790069406058
1 3
Photo is for illustration purposes only. Actual product may be different.
$399.99
$399.99
Sale Sold out
MSRP: $519.99
Shipping calculated at checkout.
  • 28-port switch with 24 x 10/100/1000 Mbps ports and 4 x 10G SFP+ uplinks
  • Supports Layer 2 management and security with Layer 3 capabilities
  • Jumbo frame support up to 9,216 bytes for enhanced data transfer efficiency
  • MAC address table size of up to 16,384 entries
  • Low power consumption of 22.3 Watts with internal universal power supply
  • MTBF of 516,593 hours ensures high reliability and longevity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for scaling enterprise networks with 10G uplinks and Layer 3 capabilities
  • Efficient energy consumption and wide temperature range suit diverse environments
  • High reliability (516,593-hour MTBF) ensures long-term deployment without failures

Product Overview

The D-Link DGS-1510-28X is a 1U rack-mountable managed switch with 24 Gigabit Ethernet ports and 4 10-Gigabit SFP+ uplinks, designed for high-bandwidth and scalable networks. It supports Layer 2 and basic Layer 3 features for traffic segmentation and enhanced security. With low 22.3W power consumption and robust temperature tolerance from -5°C to 50°C, it's engineered for efficient and reliable operation. This TAA-compliant device is ideal for enterprise and departmental deployments requiring high availability and ROI.

Specifications

Product Overview
Manufacturer D-Link
Model DGS-1510-28X
Type Managed Gigabit Ethernet Switch
Form Factor 1U Rack-Mountable
Weight 4.41 lbs.
Power Consumption (Max) 22.3 Watt
Power Requirements 100 to 240 VAC, 50/60 Hz, internal universal power supply
MTBF 516,593 hours
Connectivity Technology Wired

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC, CE, VCCI, cUL, IC, BSMI, CCC
RoHS Compliant Yes
Safety Compliance UL, CB

Advanced Security Features
Access Control 802.1X port-based access control
Traffic Segmentation VLAN (802.1Q) support
Storm Control Broadcast/Multicast/Unicast
DoS Attack Prevention Yes
Loopback Detection Yes
RADIUS/TACACS+ Yes, RADIUS and TACACS+ authentication

Interfaces
Total Ports 28
10/100/1000BASE-T Ports 24
10G SFP+ Ports 4
Interfaces 24 x 10/100/1000 Mbps; 4 x 10G SFP+
Data Link Protocol 10 Gigabit Ethernet
Jumbo Frame Support Yes, up to 9,216 Bytes
MAC Address Table Size 16,384 entries
Flash Memory Installed 32 MB

Physical & Environmental
Width 17.36 inches
Depth 8.26 inches
Height 1.73 inches
Min Operating Temperature -5 °C (23 °F)
Max Operating Temperature 50 °C (122 °F)
Min Storage Temperature -20 °C (-4 °F)
Max Storage Temperature 70 °C (158 °F)
Operating Humidity 10% to 95% non-condensing
Mounting Type Rack-mountable

Cloud Management & Licensing
Management Interface Web-based GUI, CLI, SNMP v1/v2c/v3, RMON, Telnet, SSH
Cloud Managed No (Standalone Management)
Management Features D-Link Network Assistant, DHCP auto-configuration, Dual Image, VLAN support
Licensing Required No additional licensing required
