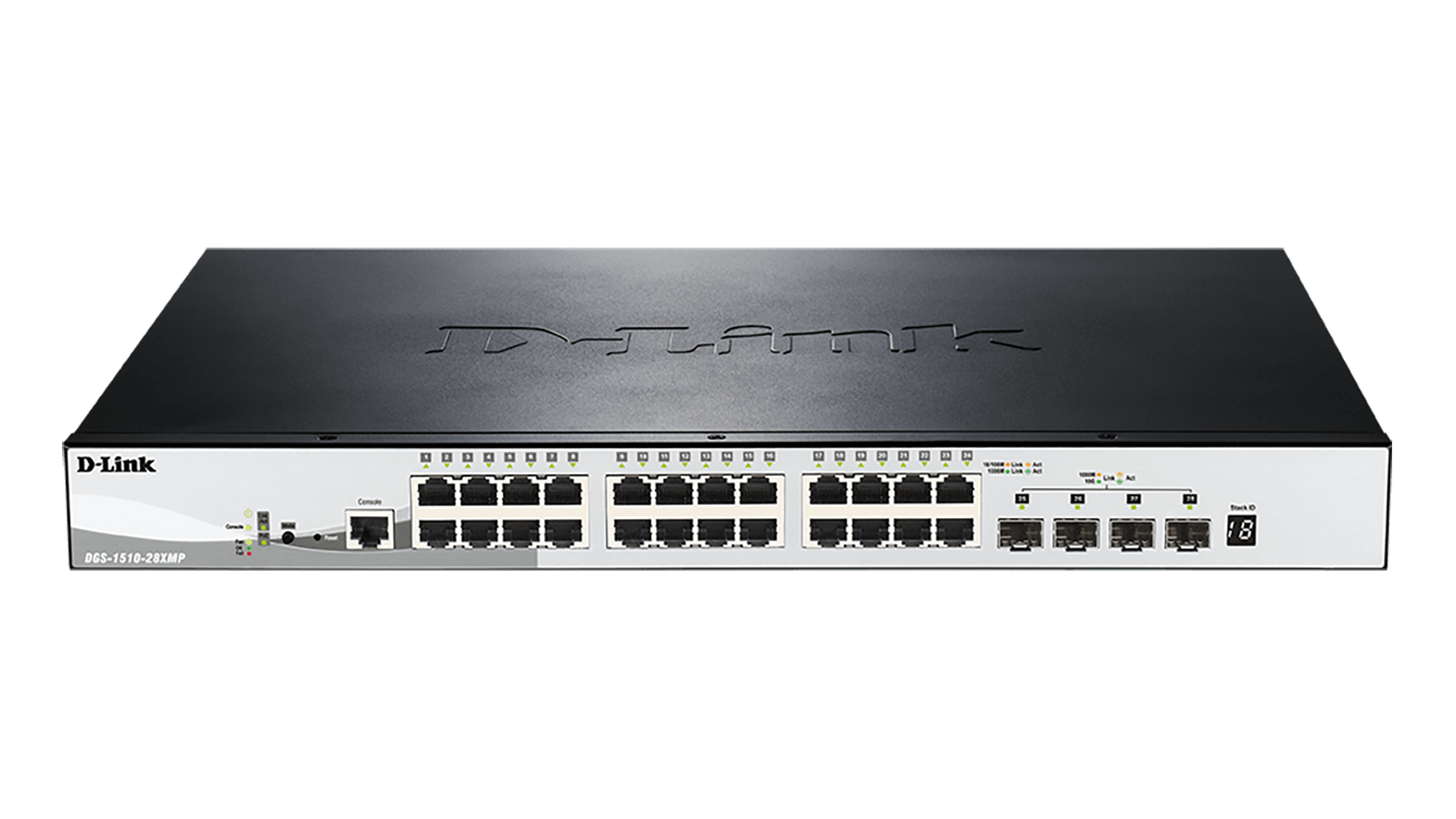

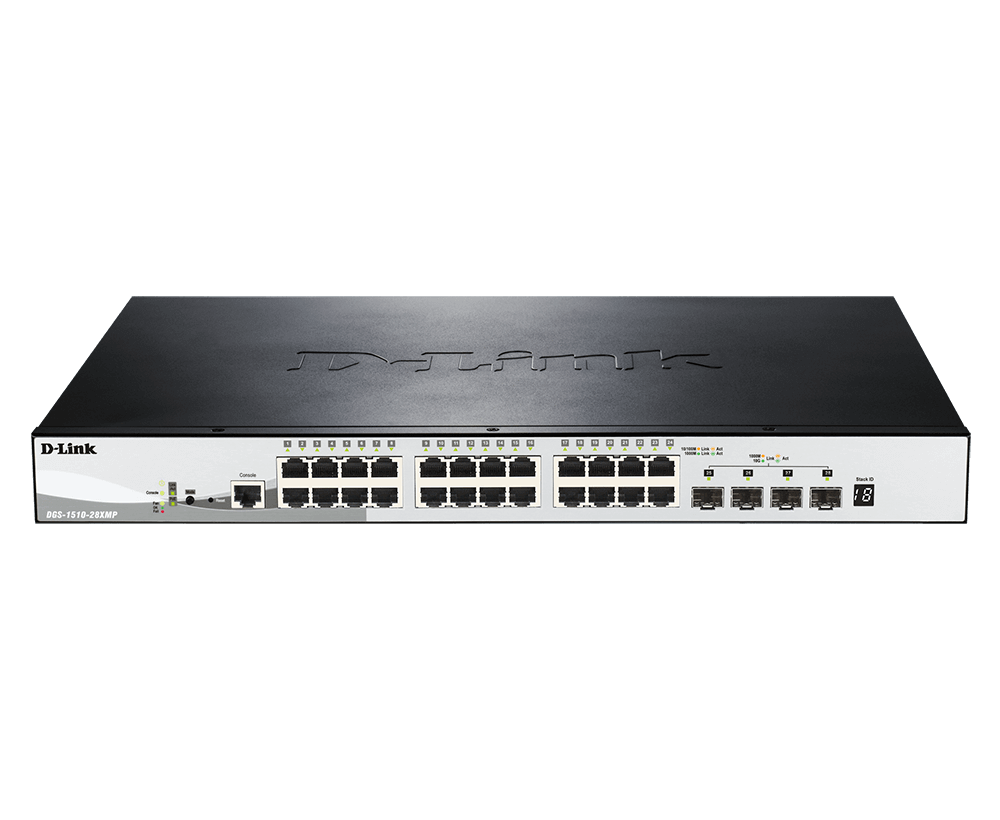

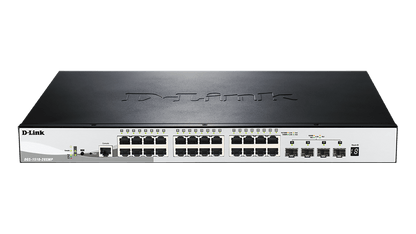

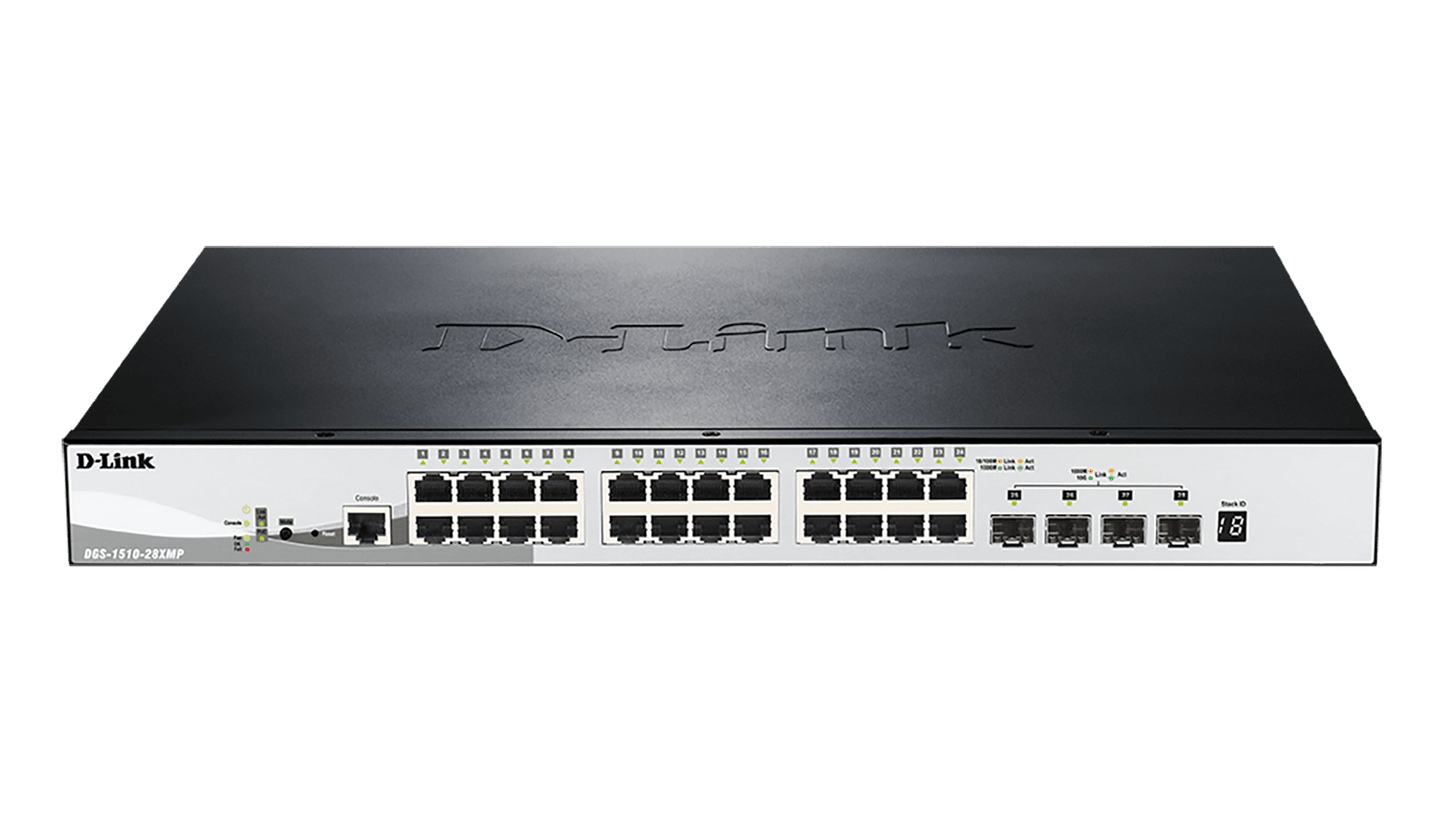

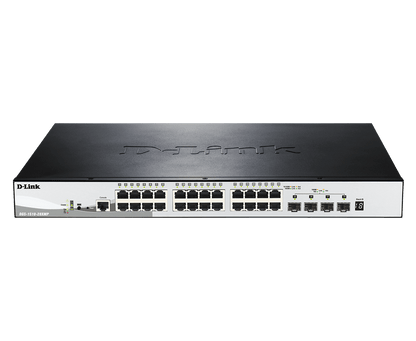

D-Link DGS-1510-28XMP Smart PoE Switch, 28-Port, 10Gbps, 1U

VENDOR: D-LINK Mfg Part#: DGS-1510-28XMP UPC#: 790069413780
1 3
Photo is for illustration purposes only. Actual product may be different.
$999.99
$999.99
Sale Sold out
MSRP: $1,299.99
Shipping calculated at checkout.
  • 24 x 10/100/1000BASE-T PoE ports with 370W total PoE budget
  • 4 x 10G SFP+ uplink ports for high-speed connectivity
  • Layer 3 static routing with IPv4 (64 entries) and IPv6 (32 entries) support
  • Remote management over IPv6 and IPv4 protocols
  • Jumbo frame support up to 9216 Bytes for optimized packet handling
  • Limited lifetime warranty with robust build (MTBF: 274,796 hours)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Scalable design with 10G uplinks and 28 total ports supports long-term network growth.
  • Built-in PoE with 370W power budget reduces need for separate power infrastructure.
  • Enterprise-grade reliability and support with a limited lifetime warranty and high MTBF.

Product Overview

The D-Link DGS-1510-28XMP Smart PoE Switch is a high-performance Layer 2+ managed switch designed for enterprise and SMB networks requiring robust features. With 24 PoE-enabled Gigabit ports and 4 10G SFP+ uplinks, it delivers scalability and power efficiency (370W PoE budget) in a compact 1U chassis. It supports advanced static routing (64 IPv4, 32 IPv6), remote manageability via IPv4/IPv6, and strong security with RADIUS and TACACS+ protocols. Operating on 100–240 VAC with a MTBF of 274,796 hours, and compliant with IEEE 802.3 and TAA regulations, it is ideal for mission-critical deployments in high-demand IT environments.

Specifications

Product Overview
Manufacturer D-LINK
Model DGS-1510-28XMP
Product Type Managed Layer 2+ PoE Switch
Form Factor 1U Rack-mountable
Weight 4.25 Kg
Power Requirements 100 to 240 VAC
Power Consumption (Max) 436.3 Watt
PoE Power Budget 370W
MTBF 274,796 hours
Installed RAM 256 MB
Flash Memory 32 MB

Cloud Management & Licensing
Remote Management Protocols IPv4, IPv6
Cloud Management Support Supported via D-Link Network Assistant or Web UI
Management Interface Web-based GUI, CLI, SNMP
Included Software D-Link Network Assistant
Mounting Option Rack-mount kit included

Physical & Environmental
Width 17.36 Inch
Depth 12.12 Inch
Height 1.73 Inch
Min Operating Temperature -5 Celsius
Max Operating Temperature 50 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 70 Celsius

Interfaces
Total Ports 28
10/100/1000BASE-T PoE Ports 24
10G SFP+ Ports 4
Network Interface Wired
Interface Standards IEEE 802.3 10BASE-T
Data Transfer Rate 10 Gbps
Jumbo Frame Support 9216 Bytes
MAC Address Table Size 16,384 entries

Advanced Security Features
Authentication Methods RADIUS, TACACS+
Access Control Port-based 802.1X authentication
Static Routing 64 IPv4 routes, 32 IPv6 routes
Traffic Control ACLs, Port Security
Storm Control Supported
IP-MAC-Port Binding Supported

Compliance & Origin
TAA Compliance Yes
Country of Origin Taiwan
Certifications and Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3az
