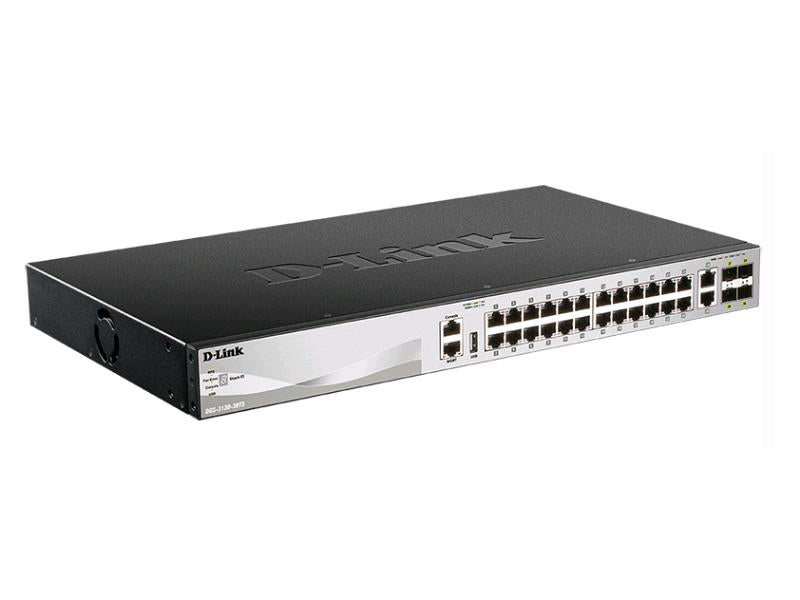

D-Link DGS-3130-30TS 30-Port Managed Gigabit Switch

VENDOR: D-LINK Mfg Part#: DGS-3130-30TS UPC#: 790069435256
  • DGS-3130 Series 30-Port L2+ Fully Managed Gigabit Switch. Offers advanced Layer 3 Lite functionality, flexible management interfaces, and robust security features. Designed for enterprise-grade performance with full Gigabit access, hot-swappable power, and 168 Gbps switching capacity.
1 1
Photo is for illustration purposes only. Actual product may be different.
$940.02
$940.02
Sale Sold out
MSRP: $1,219.99
Shipping calculated at checkout.
  • 24 x Gigabit Ethernet ports, 2 x 10GBase-T, 4 x 10GBase-X SFP+
  • Supports stacking: 12 physical units and up to 32 virtual stackable units
  • Layer 3 Lite routing: RIP, static IPv4/IPv6, IGMPv3, VRRP
  • 168 Gbps switching capacity; 125 Mpps forwarding performance
  • MAC table supports up to 16,384 entries; Jumbo frame up to 9KB
  • Advanced security: RADIUS, TACACS+, ACL support, Port Security, DoS protection
View full details

Key Benefits

Eye-Insights
  • Enterprise-grade switching with high-capacity stacking and advanced L3 Lite routing optimizes performance across large network infrastructures.
  • Hot-pluggable internal power supply with optional redundancy ensures continued operation and easy maintenance in high-availability environments.
  • Limited lifetime warranty with next business day replacement increases long-term value and minimizes total cost of ownership.

Product Overview

The D-Link DGS-3130-30TS is a high-performance, fully managed Layer 2+/Lite Layer 3 Gigabit Ethernet switch built for enterprise and campus networks. With 24 Gigabit ports, 2 10GBase-T, and 4 10G SFP+ uplinks, it offers 168 Gbps switching capacity and 125 Mpps forwarding performance. Designed for scalability, it supports physical stacking up to 12 units and virtual stacking up to 32 units.

Advanced features include comprehensive Layer 3 Lite routing (IPv4/IPv6), multicast handling via IGMP/MLD, and robust security through RADIUS, TACACS+, and ACLs. Layered services such as QoS, port security, DHCP server, and VLAN management facilitate efficient traffic handling and segmentation. Reliability is ensured with hot-swappable power supply, 6KV surge protection, and EEE support.

Ideal for businesses needing scalable, secure and resilient network infrastructure, the DGS-3130-30TS includes a limited lifetime warranty and offers extensive remote management options such as CLI, SNMP, SSH, and web UI, promoting ease of administration across deployments.

Specifications

Primary Information
Network Device Type Switch
Form Factor Rack-Mountable
Networking / Ports Qty 24
Model DGS-3130-30TS
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces USB
10/100BASE-T Ports 2
10/100/1000BASE-T Ports 24
SFP+ Ports 4

Special Feature
COO TAIWAN
TAA compliance Yes

Dimensions&Miscellaneous
Width 440 Mm
Depth 250 Mm
Height 44 Mm

Network
Remote Management Protocol HTTP
Remote Management Protocol HTTP
10/100BASE-T Ports 2
10/100/1000BASE-T Ports 24
SFP+ Ports 4
Interfaces USB
