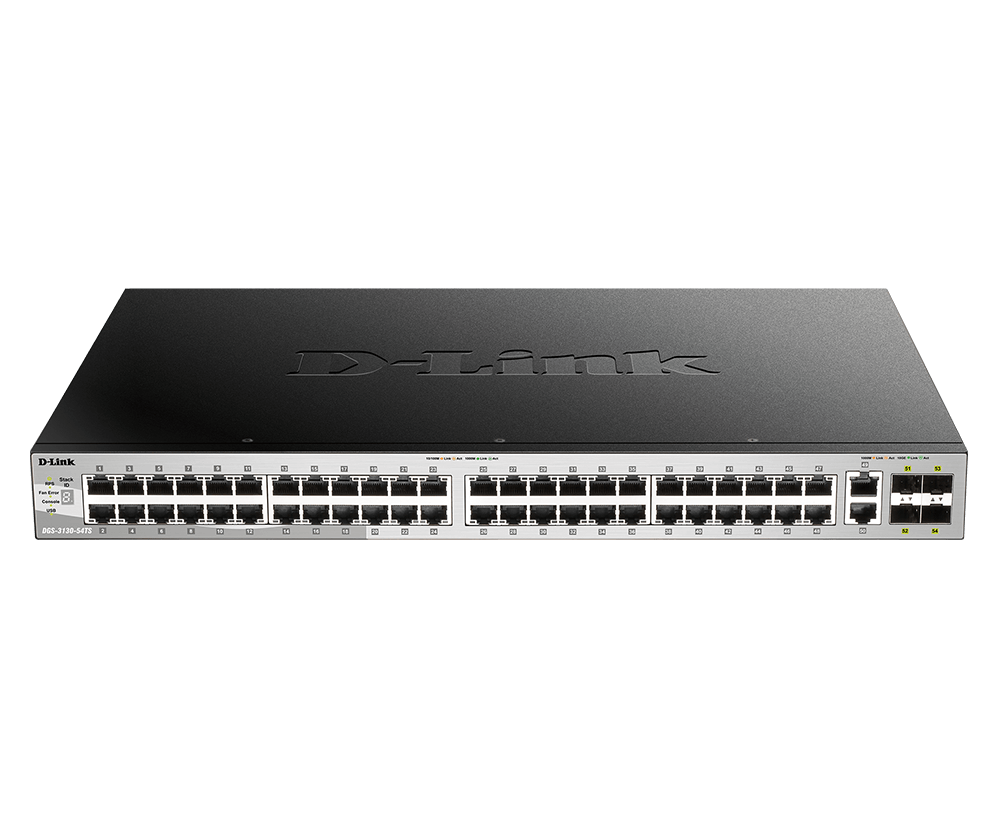

D-Link DGS-3130-54TS 54-Port L3 Stackable Managed Switch

VENDOR: D-LINK Mfg Part#: DGS-3130-54TS UPC#: 790069435300
  • The D-Link DGS-3130-54TS is a Layer 3 Stackable Managed Switch designed for high-volume enterprise networking. It features 48 Gigabit Ethernet ports, 2 10GBASE-T ports, and 4 10G SFP+ ports, providing powerful bandwidth aggregation and flexible deployment options. Advanced features like IGMP snooping, static routing, and Layer 3 protocols make it ideal for scalable managed environments requiring performance and redundancy.
  • The D-Link DGS-3130-54TS is a Layer 3 Stackable Managed Switch designed for high-volume enterprise networking. It features 48 Gigabit Ethernet ports, 2 10GBASE-T ports, and 4 10G SFP+ ports, providing powerful bandwidth aggregation and flexible deployment options. Advanced features like IGMP snooping, static routing, and Layer 3 protocols make it ideal for scalable managed environments requiring performance and redundancy.
  • The D-Link DGS-3130-54TS is a Layer 3 Stackable Managed Switch designed for high-volume enterprise networking. It features 48 Gigabit Ethernet ports, 2 10GBASE-T ports, and 4 10G SFP+ ports, providing powerful bandwidth aggregation and flexible deployment options. Advanced features like IGMP snooping, static routing, and Layer 3 protocols make it ideal for scalable managed environments requiring performance and redundancy.
1 3

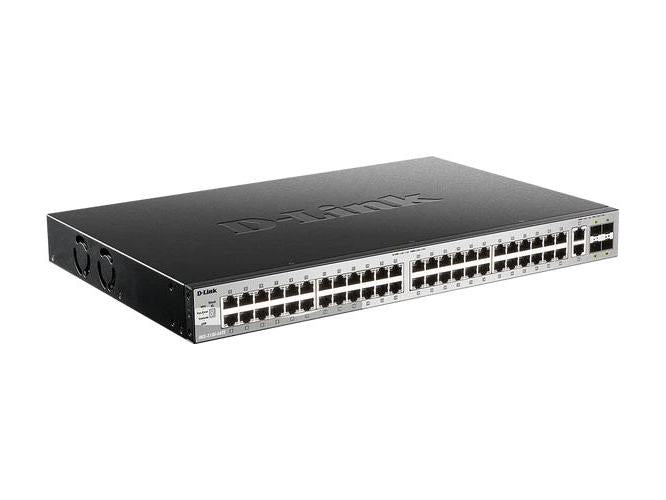

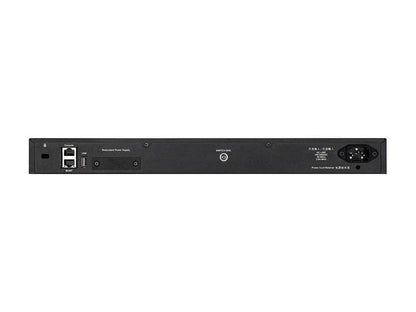

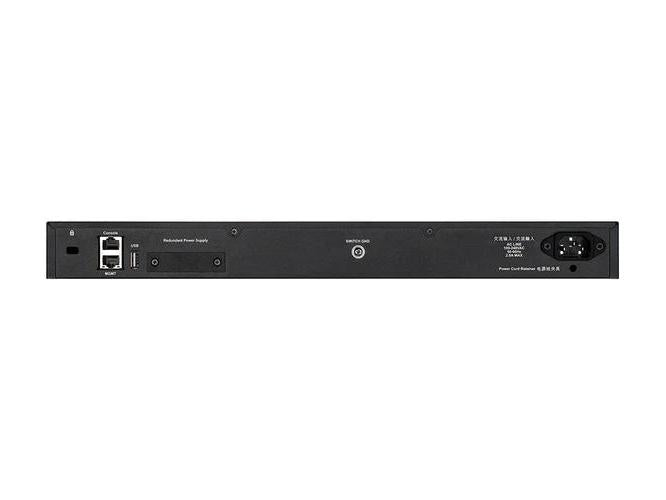

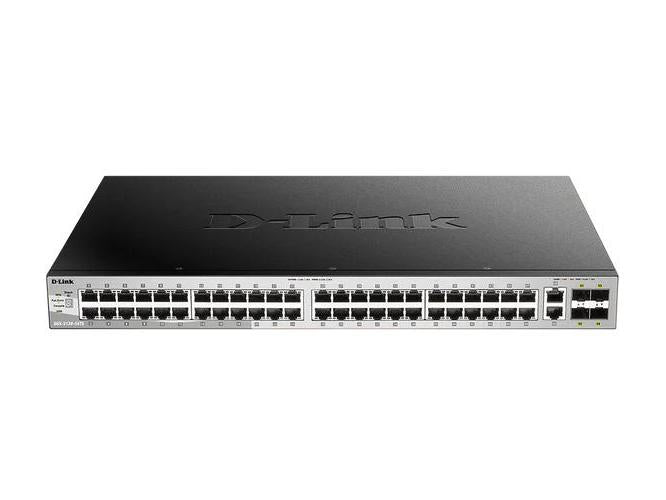

Photo is for illustration purposes only. Actual product may be different.
$1,750.01
$1,750.01
Sale Sold out
MSRP: $2,274.99
Shipping calculated at checkout.
  • 48 x 10/100/1000 ports, 2 x 10GBASE-T, and 4 x 10G SFP+ for high-throughput, flexible networking
  • Switching capacity of 216 Gbps and 161 Mpps forwarding performance for consistent performance
  • Layer 3 protocol support including RIP, OSPFv2/v3, VRRP, and static routing for advanced network segmentation
  • Supports up to 32 stackable units and 4000 VLANs for scalable enterprise deployment
  • Robust management and security features: SNMPv3, ACL, QoS, SSH, 802.1X, AAA, and energy-efficient operation
  • Optional redundant power supply with internal hot-swappable PSU and surge protection
View full details

Key Benefits

Eye-Insights
  • Supports scalable network growth with up to 32-unit virtual stacking and extensive VLAN capacity
  • Provides high reliability with 6 kV surge protection, optional redundant power, and 478,258-hour MTBF
  • Delivers enterprise-grade routing, performance, and traffic control with Layer 3 capabilities and QoS features

Product Overview

The D-Link DGS-3130-54TS is a robust Layer 3 switch offering 48 x 10/100/1000 Mbps ports, 2 x 10GBASE-T, and 4 x 10G SFP+ uplinks, designed for scalable enterprise infrastructure. With a 216 Gbps switching capacity and 161 Mpps forwarding rate, it efficiently handles high throughput. It supports 4MB packet buffer, 16K MAC table, 4000 VLANs, and jumbo frame support up to 9KB.

This device accommodates advanced routing protocols, including RIP, RIPng, OSPFv2/v3, IGMPv1/2/3, and static routing. Security and control features such as ACLs, Energy-Efficient Ethernet, loopback detection, and AAA are integrated, along with remote management via SNMP, Telnet, SSH, and HTTPS. With redundant power options, 6 kV surge protection, and durable design (MTBF of 478,258 hours), it is ideal for enterprise, data center, or surveillance network deployments.

Specifications

Primary Information
Network Device Type Switch
Model DGS-3130-54TS
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 57
Data Link Protocol Gigabit Ethernet
Status Indicators LED
Networking Compliant Standards 802.1D, 802.1w, 802.1s
Power / Device Type Power Supply
Media Layer Supported Layer 3
Uplink Port 6
Max Power Consumption 46.19 Watt
Power / Voltage Required 100 to 240 V AC, 50 to 60 Hz
MTBF 273037 hours

Interfaces / Ports
Interfaces 48 x 10/100/1000BASE-T, 2 x 10GBASE-T, 4 x 10G SFP+, 10/100/1000BASE-T RJ-45 Console, 10/100/1000BASE-T RJ-45 Management, 1 x USB 2.0 Type A
10/100/1000BASE-T Ports 48
SFP+ Ports 4

Service&Support
Service & Support Type Lifetime Warranty

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 16K entries
Jumbo Frame Support Up to 9 Kbytes
Remote Management Protocol RMON; Telnet; SNMP
Routing Protocol OSPF, RIPv1/v2/ng, Static Routing
Authentication Method RADIUS/TACACS+
10/100/1000BASE-T Ports 48
SFP+ Ports 4
Interfaces 48 x 10/100/1000BASE-T, 2 x 10GBASE-T, 4 x 10G SFP+, 10/100/1000BASE-T RJ-45 Console, 10/100/1000BASE-T RJ-45 Management, 1 x USB 2.0 Type A

Dimensions&Miscellaneous
Width 17.32 Inch
Depth 12.20 Inch
Height 1.73 Inch
Weight 4.2 Kg

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 50 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO TAIWAN
TAA compliance Yes
