D-LINK DGS-3630-28PC/SI 24-Port L3 PoE Switch with 4 SFP+ Uplinks

VENDOR: D-LINK Mfg Part#: DGS-3630-28PC/SI UPC#: 790069435010
1 3

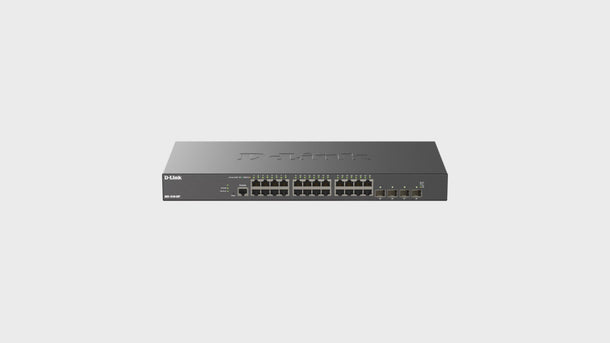

Photo is for illustration purposes only. Actual product may be different.
$2,264.99
$2,264.99
Sale Sold out
MSRP: $2,944.99
Shipping calculated at checkout.
  • 24-Port Layer 3 PoE managed switch for enterprise applications
  • 4 dedicated SFP+ uplink ports supporting 10 Gbps transfer rates
  • 10 Gigabit Ethernet protocol ensures high-speed networking
  • SFP+ form factor provides flexibility and high port density
  • TAA compliant and manufactured in Taiwan
  • Backed by a lifetime warranty for continuous support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides enterprise-level switching with high port density and PoE capabilities for versatile deployment
  • 10 Gbps uplinks via SFP+ ports ensure fast backbone and inter-switch connectivity
  • Lifetime warranty adds long-term value and reduces total cost of ownership

Product Overview

The D-LINK DGS-3630-28PC/SI is a high-performance Layer 3 managed PoE switch designed for enterprise networks, offering 24 PoE ports and 4 high-speed 10GE SFP+ uplinks. Supporting 10 Gbps data rates and utilizing 10 Gigabit Ethernet protocol, it excels in managing large-scale traffic and backbone connectivity. With TAA compliance and lifetime warranty, this Taiwan-manufactured unit is an ideal solution for government clients and reliability-focused businesses.

Specifications

Product Overview
Product Type Layer 3 Managed PoE Switch
Model DGS-3630-28PC/SI
Form Factor Rack-mountable
Rack Units 1U
Switching Capacity 128 Gbps
Forwarding Rate 95.24 Mpps
Weight 5.44 kg
Power Supply Internal dual power supply (AC redundant)
Power Consumption (Full Load) 450 W max
PoE Budget 370 W

Physical & Environmental
Dimensions (W x D x H) 440 x 310 x 44 mm
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% (non-condensing)
Acoustic Noise Max. 48.3 dB(A)
Cooling Smart fan with temperature control

Cloud Management & Licensing
Management Interface Web GUI, CLI, SNMP v1/v2c/v3, RMON
Software License Options Standard Image (SI) with optional Enhanced Image upgrade
Configuration Backup Supported via USB and network

Interfaces
Total Ports 28
Gigabit Ethernet Ports (PoE) 24 x 10/100/1000BASE-T PoE ports
SFP+ Uplink Ports 4 x 10G SFP+
Console Port 1 x RJ-45
USB Port 1 x USB Type-A for file management
Data Transfer Rate 10 Gbps (uplink)
MAC Address Table Size 128K entries
Packet Buffer 2 MB
Jumbo Frame Support Up to 9,216 bytes
Auto MDI/MDIX Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, IC, VCCI, BSMI, CCC
RoHS Compliance Yes

Advanced Security Features
Access Control 802.1X port-based & MAC-based authentication
DHCP Snooping Yes
IP-MAC-Port Binding Yes
Traffic Segregation Private VLAN and port isolation
Storm Control Broadcast, multicast, and unknown unicast
DoS Attack Prevention Yes
RADIUS and TACACS+ Support Yes
