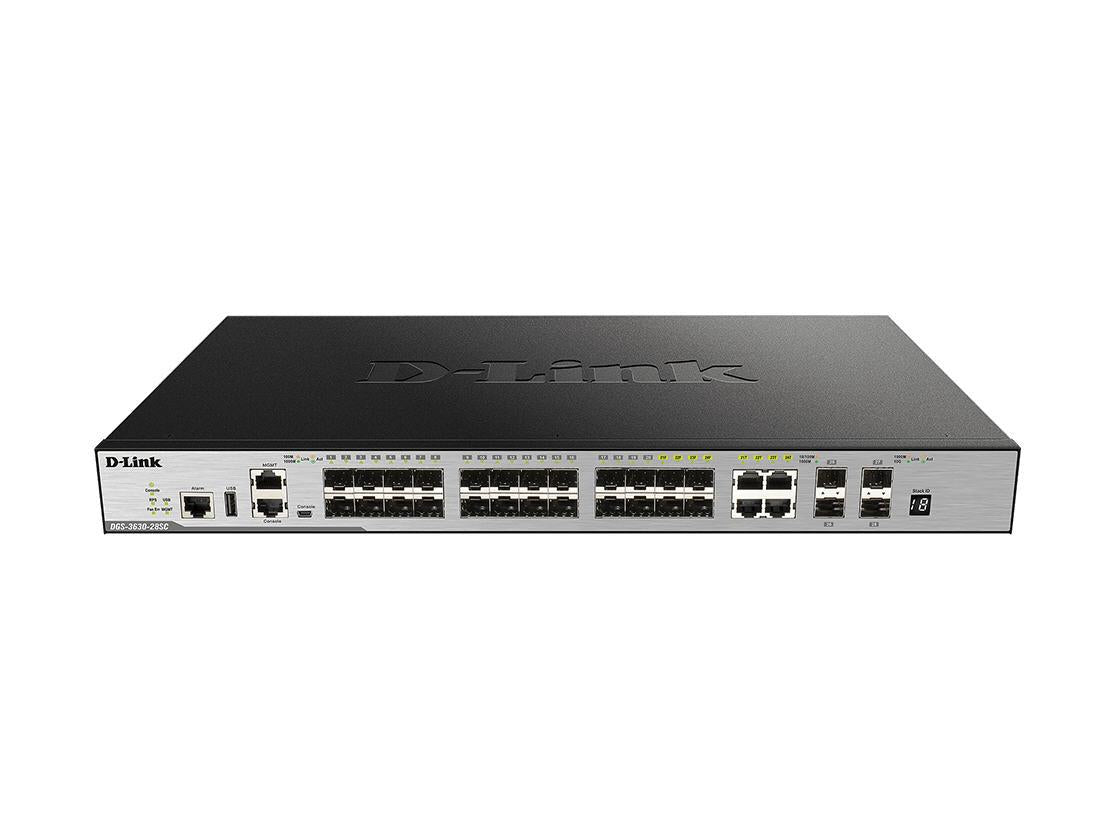

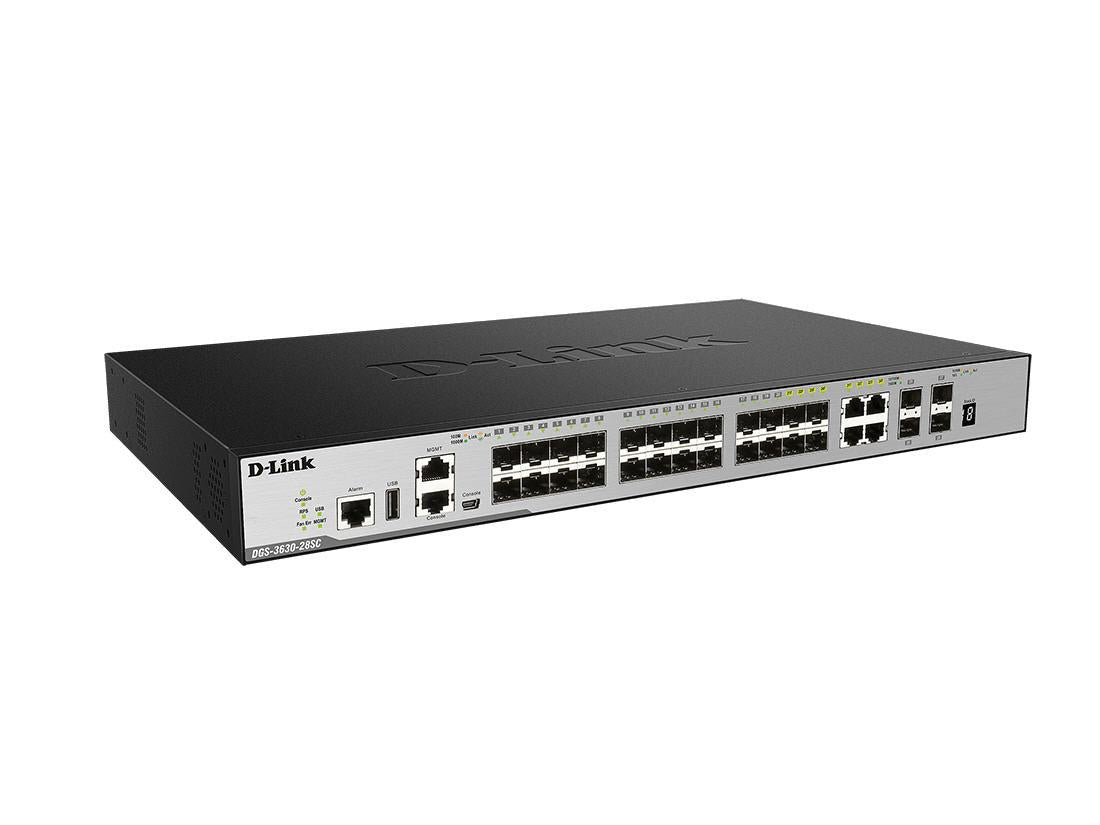

D-Link DGS-3630-28SC L3 Managed Switch, 28-Port SFP + 4 x 10GbE SFP+

VENDOR: D-LINK Mfg Part#: DGS-3630-28SC/SI UPC#: 790069425608
1 3
Photo is for illustration purposes only. Actual product may be different.
$2,382.99
$2,382.99
Sale Sold out
MSRP: $2,924.99
Shipping calculated at checkout.
  • - 20 x SFP ports for flexible fiber connectivity
  • - 4 x Combo 10/100/1000BASE-T/SFP ports supporting dual media types
  • - 4 x 10GbE SFP+ ports for high-speed uplinks
  • - Layer 3 managed switch ideal for enterprise use
  • - TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Comprehensive port configuration supports flexibility across fiber and copper media
  • - High-speed 10GbE uplinks enable efficient aggregation and backbone scalability
  • - TAA compliance ensures suitability for government and federally funded networks

Product Overview

Built for enterprise and data center environments, the D-Link DGS-3630-28SC is a Layer 3 managed switch with a rich port configuration including 20 x SFP ports, 4 x Combo 10/100/1000BASE-T/SFP ports, and 4 x 10GbE SFP+ uplinks. Manufactured in Taiwan and TAA compliant, it aligns with government procurement standards and offers flexibility for fiber and copper connectivity. Though advanced technical features are not detailed, the high port density supports scalable and efficient network deployments in bandwidth-intensive settings.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Form Factor Rack-mountable
Rack Units 1U
Weight 4.29 kg (9.45 lbs)
Power Requirements 100–240 V AC, 50–60 Hz
Power Consumption (Max) 55.3 W
Redundant Power Supply Support Yes (optional RPS)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, VCCI, C-Tick, UL, CB
RoHS Compliance Yes
MTBF 487,993 hours

Advanced Security Features
Access Control Lists (ACLs) Up to 1,000 ingress and egress entries
Port Security Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
802.1X Authentication Yes
DoS Protection Yes
RADIUS/TACACS+ Support Yes

Interfaces
Total Number of Ports 28
SFP Ports 20 x 100/1000BASE-X SFP
Combo Ports 4 x 10/100/1000BASE-T or SFP
10-Gigabit SFP+ Ports 4 x 10G SFP+
RJ-45 Console Port 1
USB Port 1 x USB Type-A
Switching Capacity 128 Gbps
Forwarding Rate 95.24 Mpps
MAC Address Table Size 16K entries

Physical & Environmental
Dimensions (W x D x H) 440 x 308 x 44 mm (17.32 x 12.13 x 1.73 in)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Noise Level 52.2 dB(A)
Heat Dissipation 188.78 BTU/hr

Cloud Management & Licensing
Management Interface Web UI, CLI, SNMP v1/v2c/v3, RMON
Cloud Management Support No native cloud support
Software Image Version Standard Image (SI)
License Requirements License upgradeable to Enhanced Image (EI)
Configuration File Management Yes – via CLI/Web/USB
SNMP Support v1, v2c, v3
