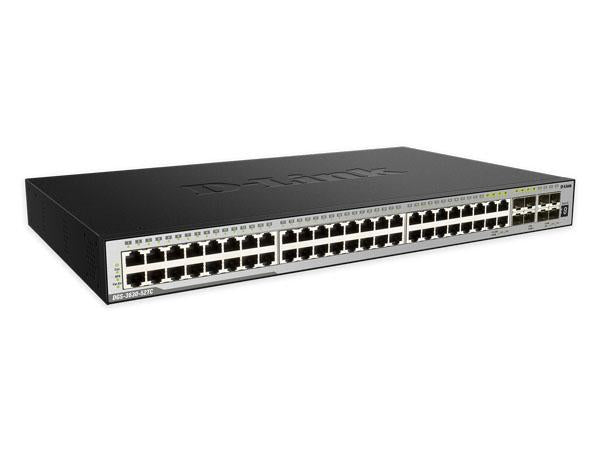

D-LINK DGS-3630-Series 52-Port L3 Stackable Gigabit Switch

VENDOR: D-LINK Mfg Part#: DGS-3630-52PC/SI UPC#: 790069435027
1 2
Photo is for illustration purposes only. Actual product may be different.
$4,394.99
$4,394.99
Sale Sold out
MSRP: $5,394.99
Shipping calculated at checkout.
  • 52-Port Layer 3 stackable managed Gigabit switch
  • Delivers up to 176 Gbps of switching capacity
  • Includes 4 high-speed 10GbE SFP uplink ports
  • Compact dimensions: 17.40" W x 10.20" D x 1.73" H
  • TAA compliant and manufactured in Taiwan
  • Backed by a lifetime warranty for long-term reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise-grade deployments needing high-density gigabit connectivity and 10GbE uplinks
  • Lifetime warranty provides long-term investment protection and peace of mind
  • TAA compliance makes it suitable for government and regulated industries

Product Overview

The D-LINK DGS-3630 SERIES 52-PORT switch is a Layer 3 stackable managed Gigabit switch, optimized for enterprise scalability and performance. With 52 ports, including 4 10GbE SFP uplink ports, it supports high-speed data transfer rates up to 176 Gbps. Its compact form factor (17.40" W x 10.20" D x 1.73" H) ensures efficient rack installation. The unit is TAA compliant and manufactured in Taiwan, meeting strict procurement standards. Backed by a lifetime warranty, this switch is ideal for high-density network environments requiring robust performance and longevity.

Specifications

Product Overview
Product Type Managed Layer 3 Stackable Switch
Series D-Link DGS-3630 Series
Model DGS-3630-52PC/SI
Form Factor 1U Rack-mountable
Weight 4.8 kg
Power Supply 100–240 V AC, 50/60 Hz
Power Consumption (Max) 64.3 W
Redundant Power Supply Support Yes (optional DPS-500A or DPS-700)
Switching Capacity 176 Gbps
Forwarding Rate 130.95 Mpps
Packet Buffer Size 2 MB
Flash Memory 128 MB
RAM 512 MB DDR3

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, VCCI, C-Tick, UL, RoHS
Warranty Limited Lifetime Warranty

Advanced Security Features
Access Control Lists (ACLs) Supports L2/L3/L4 ACLs – up to 1,800 entries
802.1X Authentication Supported
Port Security Yes, up to 64 MAC addresses per port
Storm Control Broadcast, Multicast, Unknown Unicast
DHCP Snooping Yes
IP-MAC-Port Binding (IMPB) Yes
ARP Spoofing Prevention Yes
DoS Attack Prevention Yes

Interfaces
Total Ports 52
Gigabit Ethernet Ports 48 x 10/100/1000BASE-T
10 Gigabit SFP+ Ports 4 x 10G SFP+
Console Port 1 x RJ45 Console Port
USB Port 1 x USB 2.0 Type-A
Stacking Ports Uses SFP+ ports for physical stacking
Stacking Bandwidth 80 Gbps
Maximum Stacking Units 9 switches per stack
MAC Address Table Size 32K entries

Physical & Environmental
Width 17.40 in (440 mm)
Depth 10.20 in (260 mm)
Height 1.73 in (44 mm)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 95% non-condensing
Acoustic Noise Level Less than 46.1 dB(A)
Heat Dissipation 219.15 BTU/hr
Cooling Smart Fans with dynamic adjustment

Cloud Management & Licensing
Management Interface Web UI, CLI, SNMP v1/v2c/v3, RMON, Telnet, SSH
Software License Standard Image (SI), Optional Enhanced Image (EI)
Cloud Support Supported via D-View Network Management System
RMON Support Yes (1, 2, 3, 9 groups)
