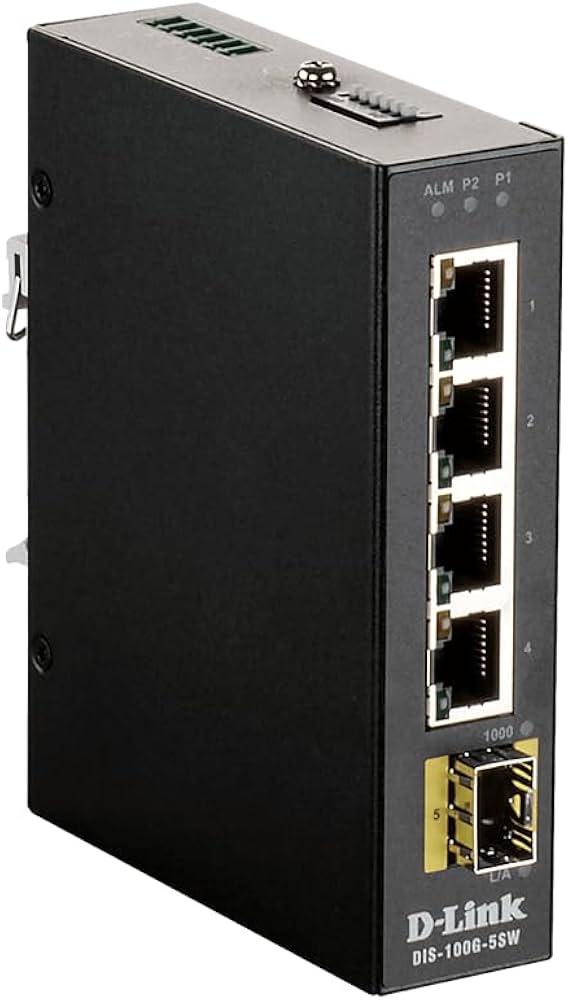

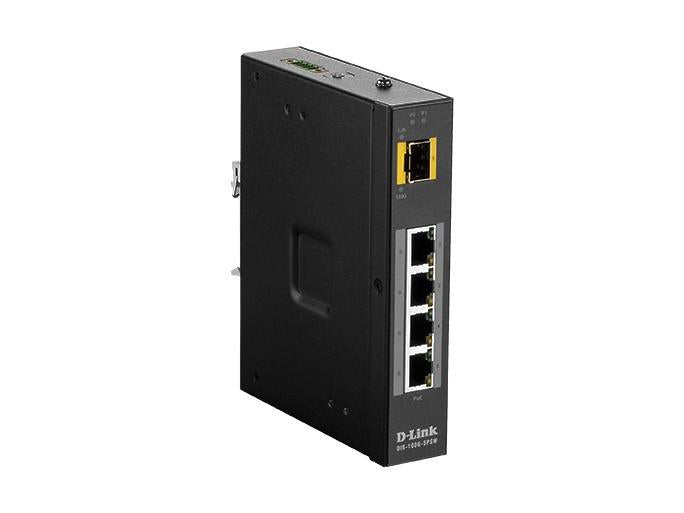

D-LINK DIS-100G-5PSW 5-Port Industrial Gigabit PoE Switch with SFP

VENDOR: D-LINK Mfg Part#: DIS-100G-5PSW UPC#: 790069437885
  • The D-LINK DIS-100G-5PSW is a rugged 5-Port Gigabit PoE Unmanaged Industrial Switch designed for performance in harsh environments. Featuring 4 PoE-capable Gigabit ports and one SFP slot, it supports a wide temperature range and delivers up to 120W PoE power. Ideal for industrial systems requiring reliable high-speed networking, this DIN-rail mountable unit meets TAA compliance for government and enterprise use.
1 1
Photo is for illustration purposes only. Actual product may be different.
$330.99
$330.99
Sale Sold out
MSRP: $429.99
Shipping calculated at checkout.
  • 5-port Gigabit Ethernet switch with 4 PoE and 1 SFP port
  • DIN-rail mountable industrial form factor
  • PoE support with 120W total power budget
  • Operational temperature range: -40°C to 75°C
  • MAC address table supports up to 2K entries
  • Jumbo frame support up to 9KB
View full details

Key Benefits

Eye-Insights
  • Designed for rugged environments with wide operating temperature and DIN-rail installation.
  • High PoE power budget (120W) supports a range of powered devices including cameras and access points.
  • SFP slot enables flexible fiber uplink integration for extended-distance networking.

Product Overview

The D-LINK DIS-100G-5PSW is an industrial-grade unmanaged 5-port switch designed for D-IN rail mounting in demanding environments. It includes 4 x 100/1000BaseT PoE ports delivering a total of 120W PoE power and 1 x 100/1000BaseSFP slot for fiber uplink. Operating across -40°C to 75°C, this unit withstands harsh conditions while supporting Gigabit Ethernet with jumbo frames and offering industrial-grade reliability with a >25-year MTBF. The wide 48-58V DC input range, LED indicators, and TAA compliance make it ideal for government use and commercial industrial integration, offering long-term ROI with minimal maintenance.

Specifications

Primary Information
Network Device Type Switch
Model DIS-100G-5PSW
Form Factor DIN-rail
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Networking / Ports Qty 5
Data Link Protocol Gigabit Ethernet
Status Indicators LEDs
Media Layer Supported Layer 2
Max Power Consumption 131.57 Watt
Power / Voltage Required 48 to 58 V DC
MTBF >25 years

Interfaces / Ports
Interfaces 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
SFP Ports 1

Special Feature
Min Operating Temperature -40 Celsius
Max Operating Temperature 75 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 85 Celsius
COO TAIWAN / TAIWAN
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support Y
PoE Power Consumption 120W
MAC Address Table Size 2K
Jumbo Frame Support 9 KB
Interfaces 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
SFP Ports 1

Dimensions&Miscellaneous
Width 139 Mm
Depth 29 Mm
Height 107 Mm
Weight 0.5 Kg

UNSPSC Code
UNSPSC Code 43222612
