D-LINK DIS-100G-5SW 5-Port Industrial Unmanaged Switch with SFP

VENDOR: D-LINK Mfg Part#: DIS-100G-5SW UPC#: 790069437892
1 3

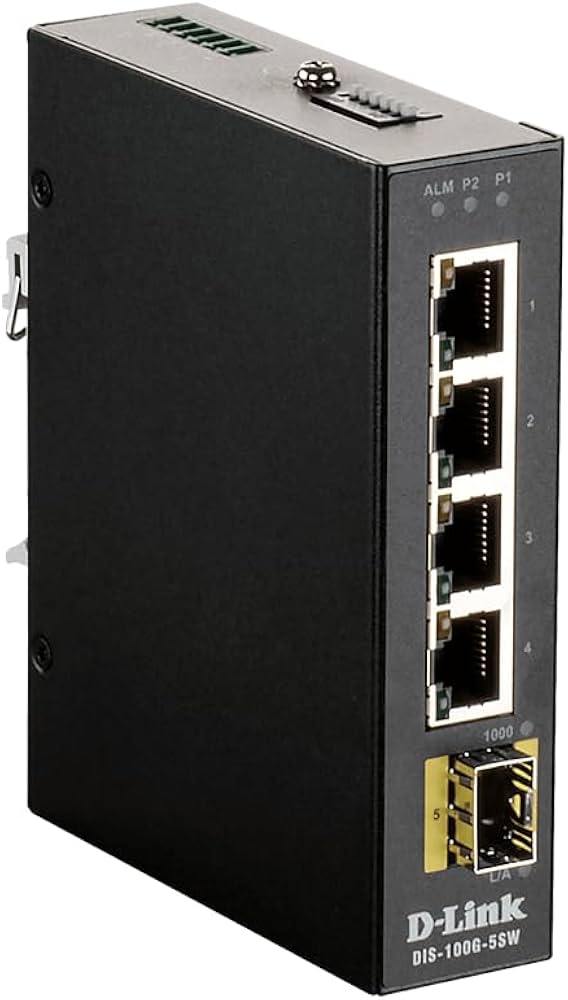

Photo is for illustration purposes only. Actual product may be different.
$244.99
$244.99
Sale Sold out
MSRP: $319.99
Shipping calculated at checkout.
  • - 5-port unmanaged industrial switch with 4 x 10/100/1000BASE-T and 1 x SFP interface
  • - Supports Gigabit Ethernet and standards including IEEE 802.3ab, 802.3u, 802.3x, 802.3az
  • - Wide operating temperature range from -40°C to +75°C for harsh environments
  • - Management protocol support includes SNMP, VLAN, TFTP, and DHCP
  • - Rack-mountable form factor with compact dimensions (4.41" W x 3.51" H x 1.14" D)
  • - Backed by a limited lifetime warranty and TAA-compliant for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Engineered for industrial-grade performance in extreme conditions ranging from -40°C to +75°C
  • - Enables seamless high-speed connectivity with four Gigabit Ethernet ports and one SFP uplink
  • - Offers long-term value and compliance assurance with TAA certification and a limited lifetime warranty

Product Overview

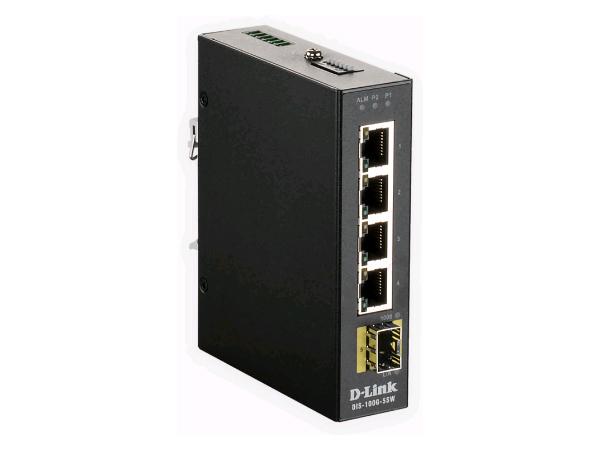

The D-LINK DIS-100G-5SW is a compact and reliable solution for demanding industrial applications requiring robust switching capabilities. Featuring four 10/100/1000BASE-T ports and a dedicated SFP port, this unmanaged switch supports Gigabit Ethernet speeds and complies with advanced protocols like IEEE 802.3ab, 802.3u, 802.3x, and 802.3az. Built for rugged environments, it operates in temperatures ranging from -40°C to +75°C, ideal for outdoor and industrial use.

Designed for resilience and long-term deployments, it includes TAA compliance and a limited lifetime warranty. Support for SNMP, VLAN, TFTP, and DHCP protocols offers logistical flexibility for integration. Its rack-mountable form and compact footprint ensure easy installation in tight industrial spaces. The DIS-100G-5SW delivers high performance and stability for applications where network continuity and environmental tolerance are essential.

Specifications

Product Overview
Type Unmanaged Industrial Ethernet Switch
Form Factor Rack-Mountable
Weight 400 g
Power Requirements 12 to 58 VDC
Power Consumption 5.76 Watts (maximum)
Switching Capacity 10 Gbps
MAC Address Table Size 2K entries
Buffer Memory 1 Mbits
Jumbo Frame Support 9K Bytes
Mounting Options DIN rail and wall mount

Physical & Environmental
Width 4.41 Inch
Depth 1.14 Inch
Height 3.51 Inch
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Operating Humidity 5%–95% RH (non-condensing)
Enclosure Type Metal
Ingress Protection Rating IP30
Heat Dissipation 19.647 BTU/hr

Advanced Security Features
Broadcast Storm Control Yes
ESD Protection 4 kV contact / 6 kV air
Surge Protection 6 kV

Interfaces
Total Number of Ports 5
10/100/1000BASE-T Ports 4
SFP Ports 1
Data Transfer Rate 1 Gbps
Auto MDI/MDIX Yes
Supported IEEE Standards 802.3, 802.3u, 802.3x, 802.3ab, 802.3az
Connection Media Category 5e or better UTP/STP for RJ45; Multi-mode/Single-mode fiber for SFP

Cloud Management & Licensing
Management Access Unmanaged (No UI)
SNMP Support Yes (read-only traps via external system integration)
Remote Management Protocols SNMP, VLAN, TFTP, DHCP
License Requirements None

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL61010-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Warranty Limited lifetime warranty
